UBW blues.

Status
Not open for further replies.

Vizier87

Active Member
If you built your own UBW, you need to put the bootloader and firmware HEX files on your UBW first before you can proceed. See this page for help. If you bought your UBW, just proceed to step 1.

From the UBW page.

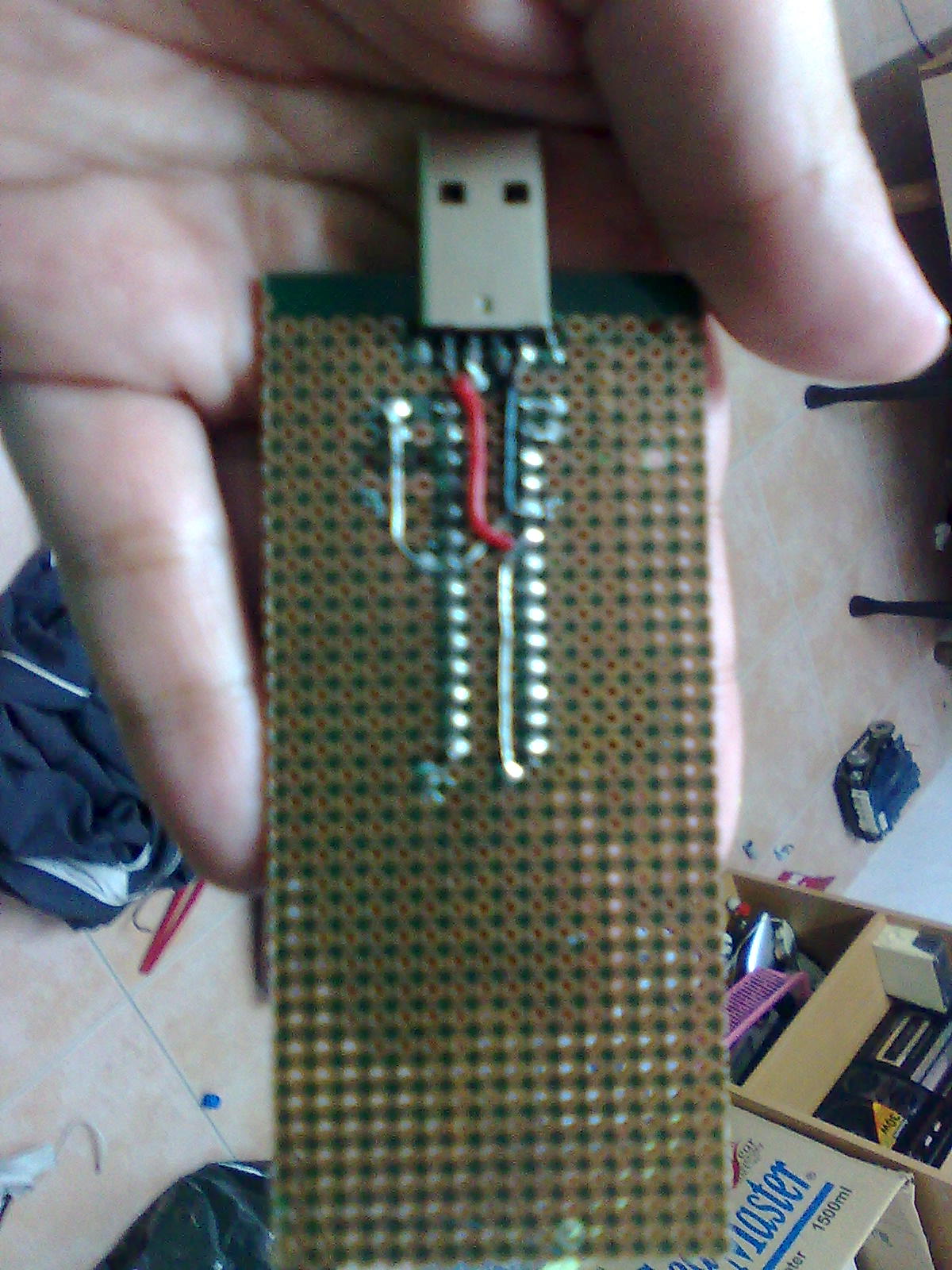

So I've built the UBW (only the USB connections, no LEDs or other stuff yet), but the so-called hex files which which needed to be loaded into the PIC beforehand is not there. The part where it says See this page for help doesn't have a hyperlink.

Anyone?
Vizier87


Attachments

  • Image0311.jpg
    279.5 KB · Views: 145

Arkham00

Member

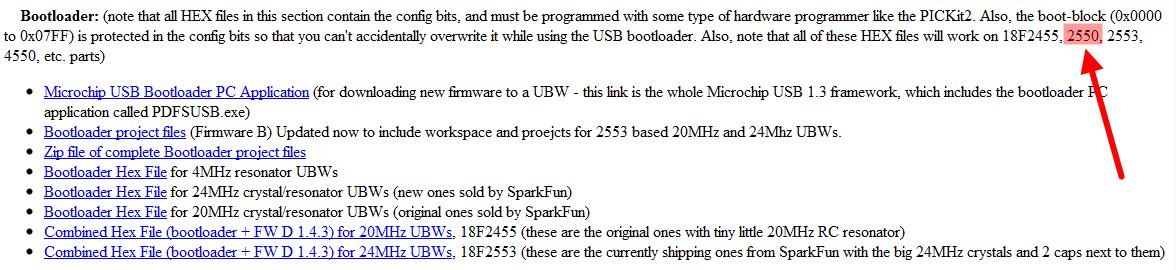

Near the end of the page you'll find the bootloader files
06122009_120225-jpg.36063


You need the reset and programming pushbuttons on your prototype to download, later, "firmare D" and the control UBW pins with serial commands.


Attachments

  • 06122009_120225.jpg
    88.5 KB · Views: 297

Vizier87

Active Member
You need the reset and programming pushbuttons on your prototype to download, later, "firmare D" and the control UBW pins with serial commands.

Please elaborate the one above.

While I'm digging into this, I've got a question:
The data I get from the registers are to be processed with mathematical models (way over PICs to process), so the MCHPFUSB allows this, right?

Cheers.


Nigel Goodwin

Super Moderator
Most Helpful Member
Please elaborate the one above.

While I'm digging into this, I've got a question:
The data I get from the registers are to be processed with mathematical models (way over PICs to process), so the MCHPFUSB allows this, right?

I'm not very sure what you mean?, but if you're wanting to do complicated maths at a high rate of speed, then simply transfer the raw data to the PC, and do the maths there.

BTW, I agree with you about finding the HEX files for the UBW, it's really badly laid out and VERY difficult to find the files you want. Once you've found it, or it's been pointed out, it's fairly obvious - but it's not intuitive at all.


Vizier87

Active Member
I'm not very sure what you mean?, but if you're wanting to do complicated maths at a high rate of speed, then simply transfer the raw data to the PC, and do the maths there.

I see. So Microchip's software handles everything, including maths and the development of GUI to display values after computations, does it?

BTW, I agree with you about finding the HEX files for the UBW, it's really badly laid out and VERY difficult to find the files you want. Once you've found it, or it's been pointed out, it's fairly obvious - but it's not intuitive at all.

I WAS afraid to ask the question, but I've got no choice. The itty-bitty parts drive me crazy.

Last edited:

3v0

Coop Build Coordinator
Forum Supporter
The UBW allows you to use a micro controller without knowing how to program one. But you still have to know how to program a PC.

I see. So Microchip's software handles everything, including maths and the development of GUI to display values after computations, does it?

The UBW (microchip PIC) understands commands to collect data or output bits. A program on the PC tells the UBW what to do and when.

The UBW communicates with the PC over USB via a virtual COM port.

UBW comes with demo software for the PC but in most cases people need to write their own using any language the runs on the PC.

3v0

Last edited:

Russ Hensel

New Member
Use "Processing" for a free language that is easy to interface to uC's including the bitwacker. Processing is very common in the Arduino world.


Sceadwian

Banned
Processing isn't really a language, it's just some nice window dressing and very useful libraries for Java, that being said it's absolutely fantastic =) Portable too because it'll run on any machine that has a Java VM.
I'm not much for the raw performance of Java but it has a lot going for it.

Last edited:

Vizier87

Active Member
The UBW (microchip PIC) understands commands to collect data or output bits. A program on the PC tells the UBW what to do and when.

The UBW communicates with the PC over USB via a virtual COM port.

UBW comes with demo software for the PC but in most cases people need to write their own using any language the runs on the PC.
3v0

You're the man, Trivio :p.... Anyway my plan is to process the data from 8-10 registers to triangulate some weather data.. and display it using MATLAB GUI.

Thanks for the replies, guys, just woken up.. I'm gonna play with my UBW.


Vizier87

Active Member
There's a hitch here.. I loaded the hex files into my 2550 using PICkit 2: But after verifying it, it said "verification of program memory failed at address 0x00000.

The PICkit hardware detected it nicely though. Is it damaged?


Pommie

Well-Known Member
Most Helpful Member
Double check you connections. Do you have anything else connected to MCLR?

Mike.


Pommie

Well-Known Member
Most Helpful Member
During programming MCLR should have a diode+resistor from Vdd to ensure Vdd does not see 12V. Your 10k resistor should be enough to prevent Vdd becoming too high or Vpp too low but that depends on the programmer.

The only reason I asked was because it sounds like the chip is not getting into programming mode which is usually inadequate Vpp - 12V.

Mike.


Pommie

Well-Known Member
Most Helpful Member
To program a pic the programmer has to put 12V on MCLR. Most USB programmers have some kind of DC to DC converter to achieve this.

You can't substitute, it has to be a 2550.

Mike.
