MrDEB

Well-Known Member
Now that Radio Shack is gone, obtaining perf boards is expensive and not real friendly for say wider 40 pin chips.
Started designing a perf board that will be commercially manufactured.
Design input to determine desirability for a printed perf board such number of bus circuits, simple ICSP ports with resistor, a method to connect a large number of LEDs or other without actually soldering to board.

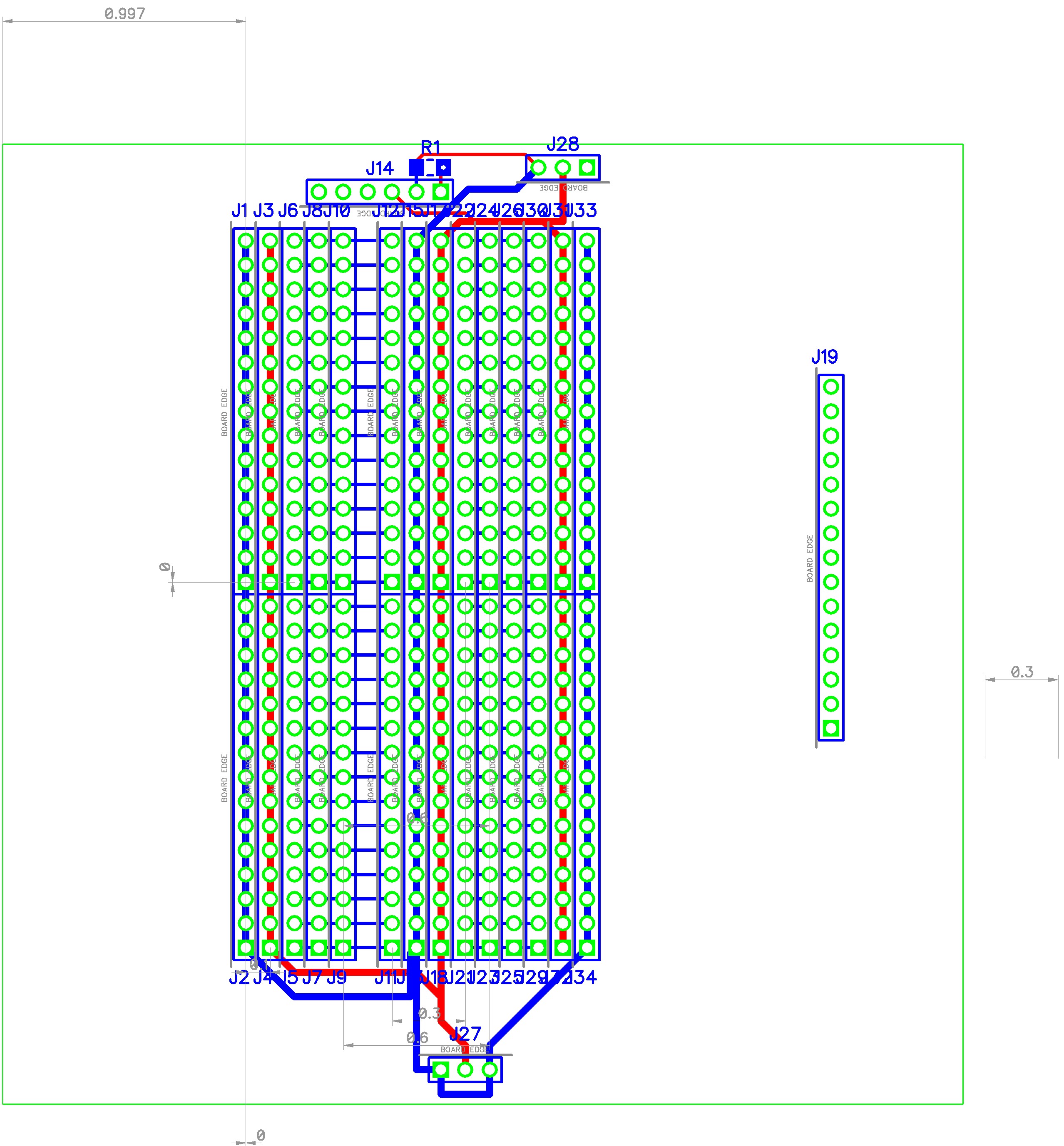

here is a pic of my present design. NOTO I am limited to 500 pins. this deign has 448 so far.


Attachments

JLNY

Active Member
Now that Radio Shack is gone, obtaining perf boards is expensive and not real friendly for say wider 40 pin chips.
I'm not sure that I follow. Various sizes of perfboard and stripboard are pretty easy to obtain on places like amazon and eBay, and I wouldn't consider them expensive aside from some of the very large sizes.

Generally, most of the kinds I see have just unconnected pads without bus bars of any kind, but there are also kinds available that have connected busses for power and ground rails similar to what you show.

Perhaps I'm not understanding, though. Is there a particular style or layout of perfboard that you mean?

EDIT: something like this, for example: http://www.ebay.com/itm/10X-DIY-Pro...8596ee1&pid=100010&rk=1&rkt=6&sd=132032486865


MrDEB

Well-Known Member
Furtlec is across the sea from USA??
pretty good prices but need more time to investigate.
THANKS
