OTL headphone amp

Discussion in 'Electronic Projects Design/Ideas/Reviews' started by ian mason, Jan 2, 2018.

  1. ian mason

    ian mason New Member

    Joined:
    Jan 2, 2018
    Messages:
    18
    Likes:
    1
    Hello all, I wonder if you might help me, I am currently building a headphone amp that arrived in kit form but I am struggling with the primary wires for the transformer, there are two windings( all white wires) one cable on each winding has black tape on it and one does not, so two wires in total have black tape and two don't, please could someone explain to me in the simplest(but thorough) terms possible how the transformer should be wired according to the schematic for UK 240V, ie the bottom wire goes to the switch and the 2nd wire goes to live on the 3 pin plug(this is an example and probably not how it goes) etc etc, I'm
    sorry to act like such a newbie but that's exactly what I am, I would be grateful for any help offered and would like to say thanks in advance.

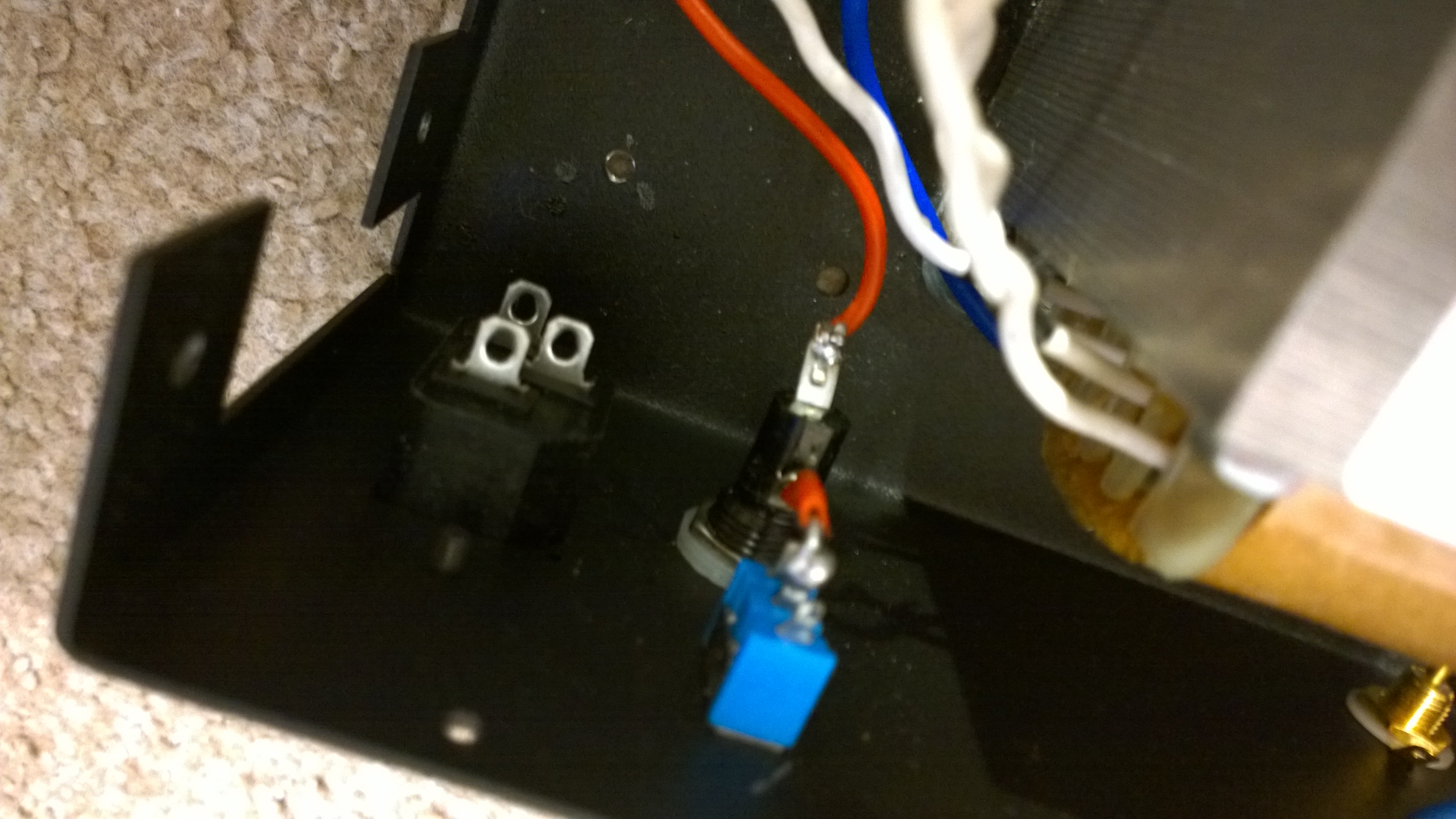

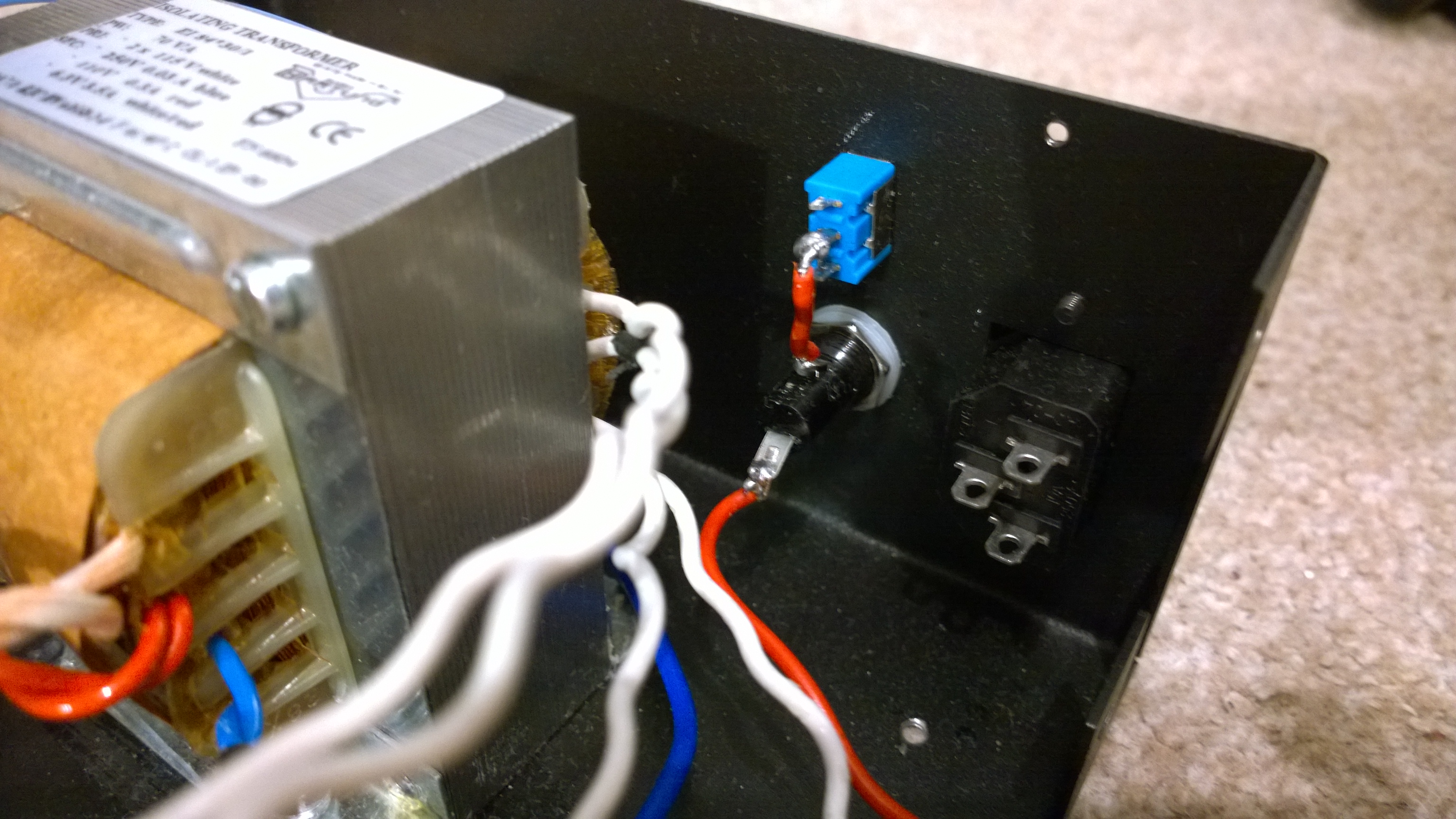

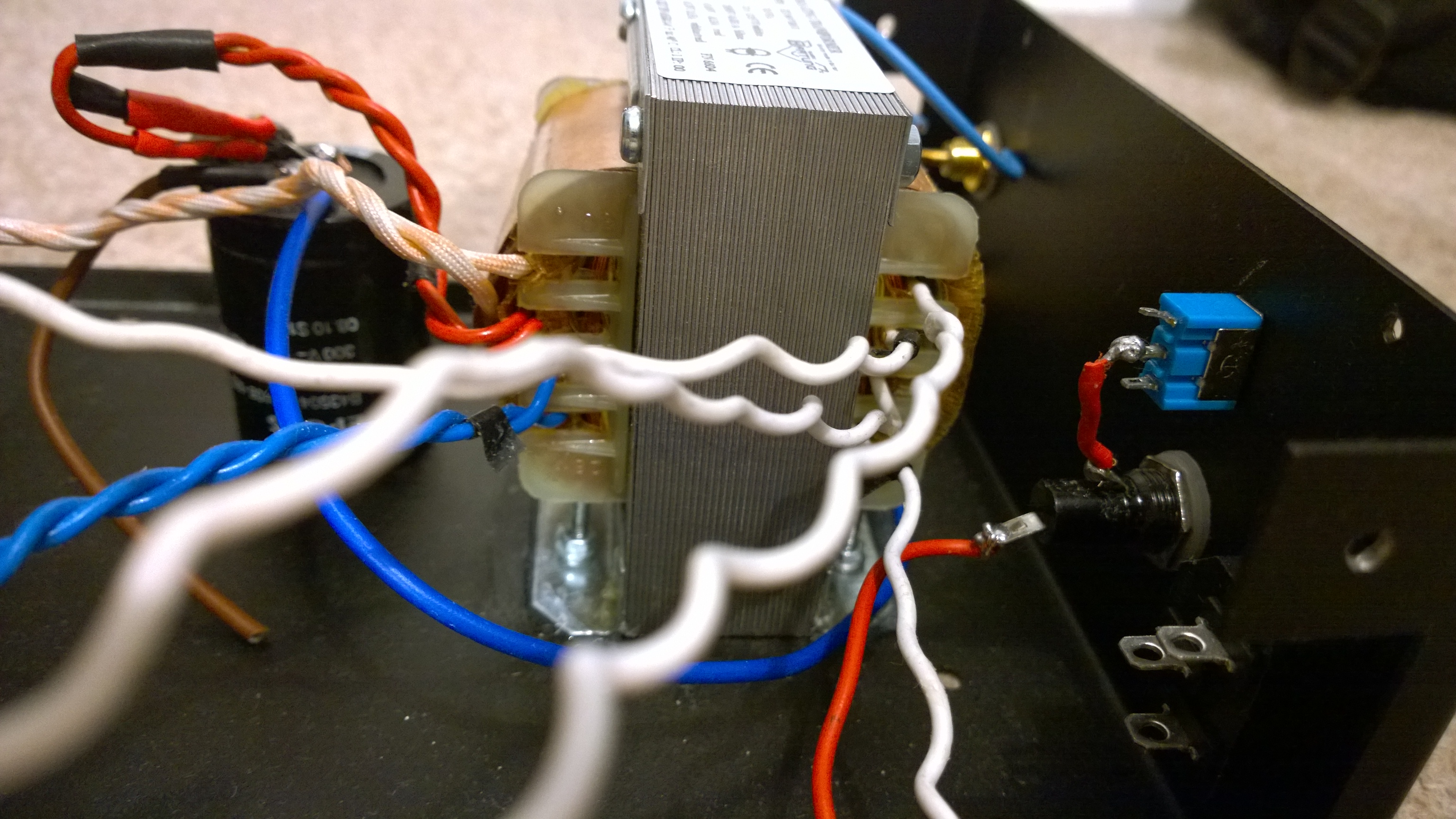

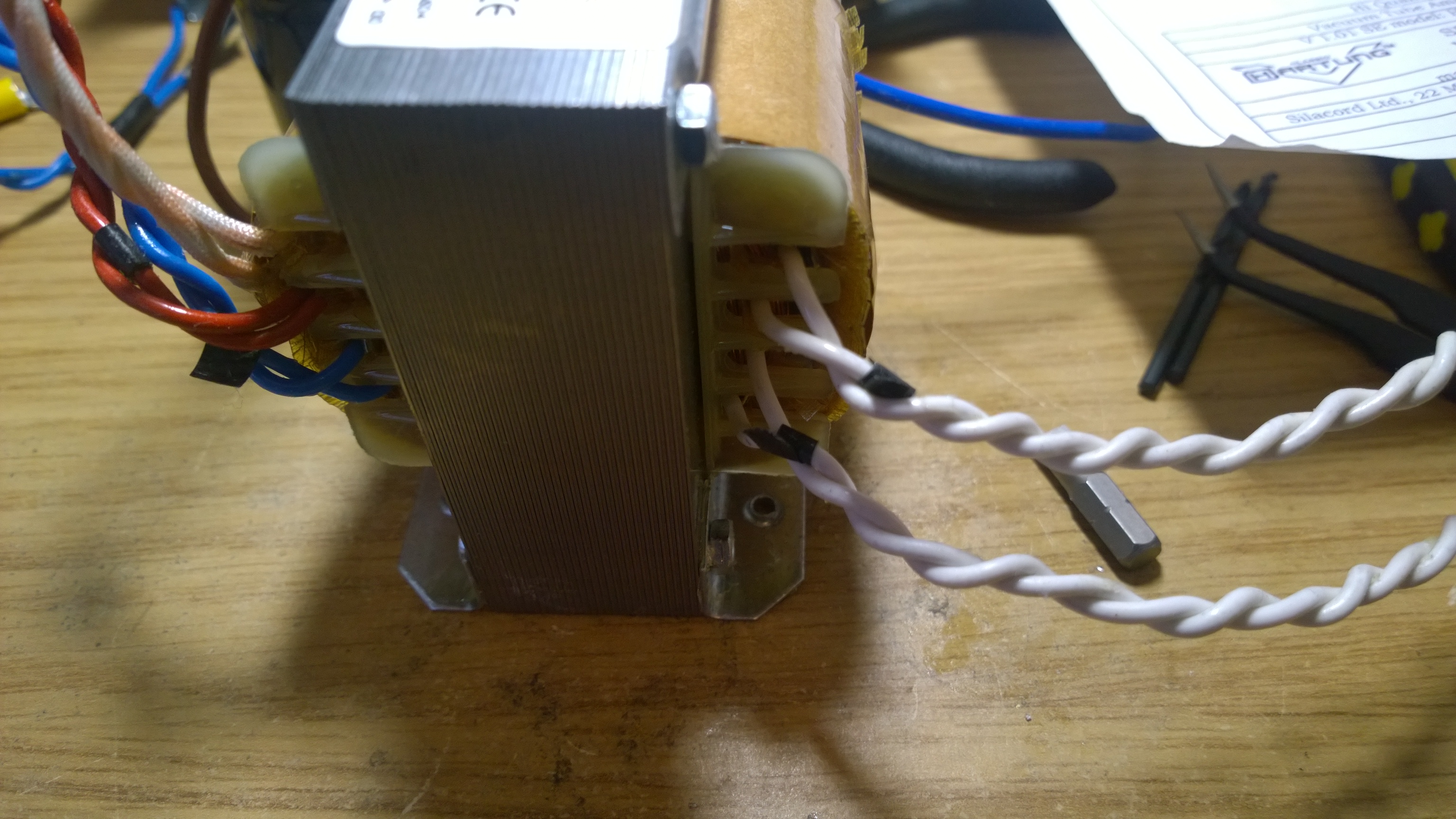

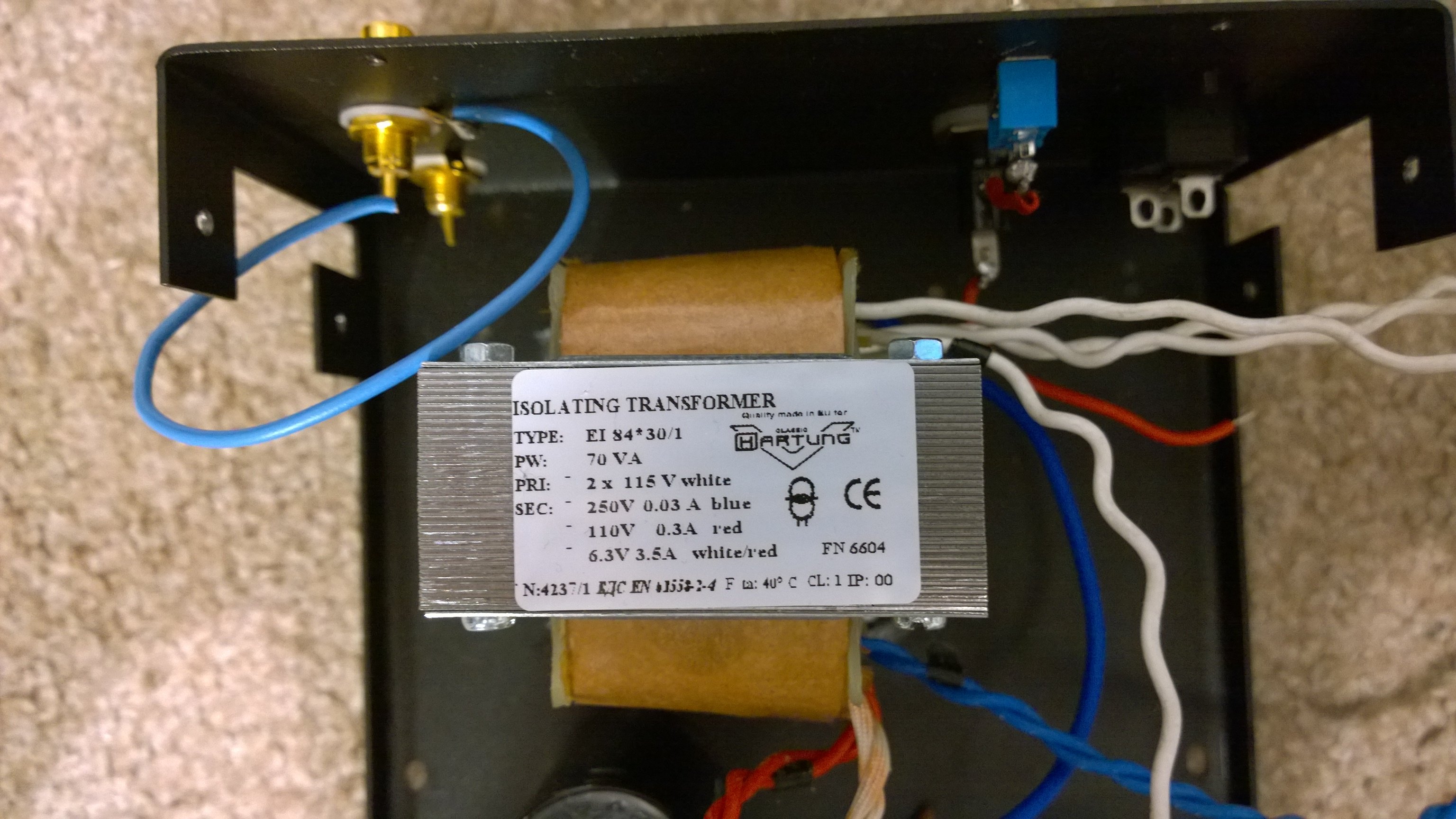

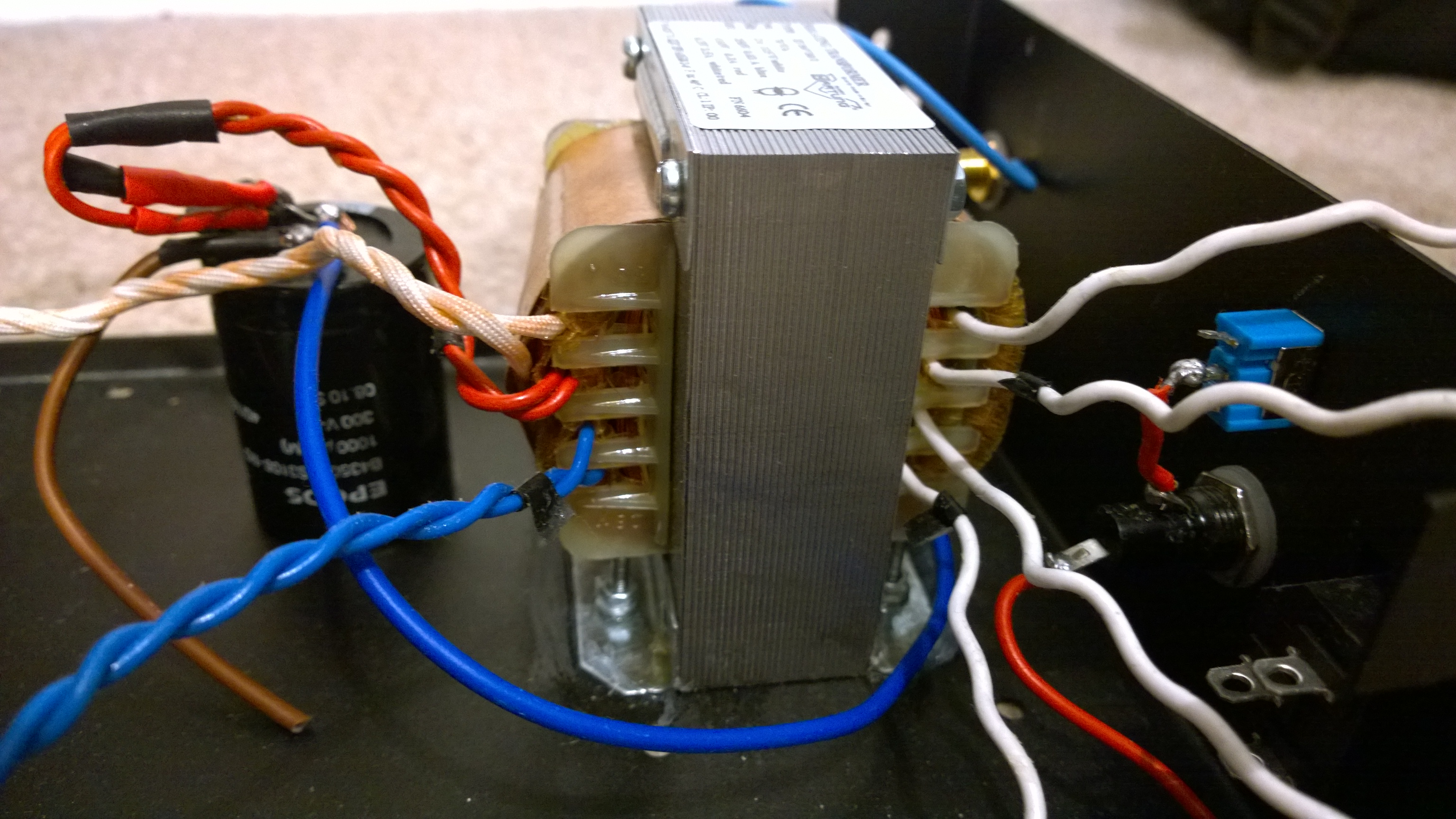

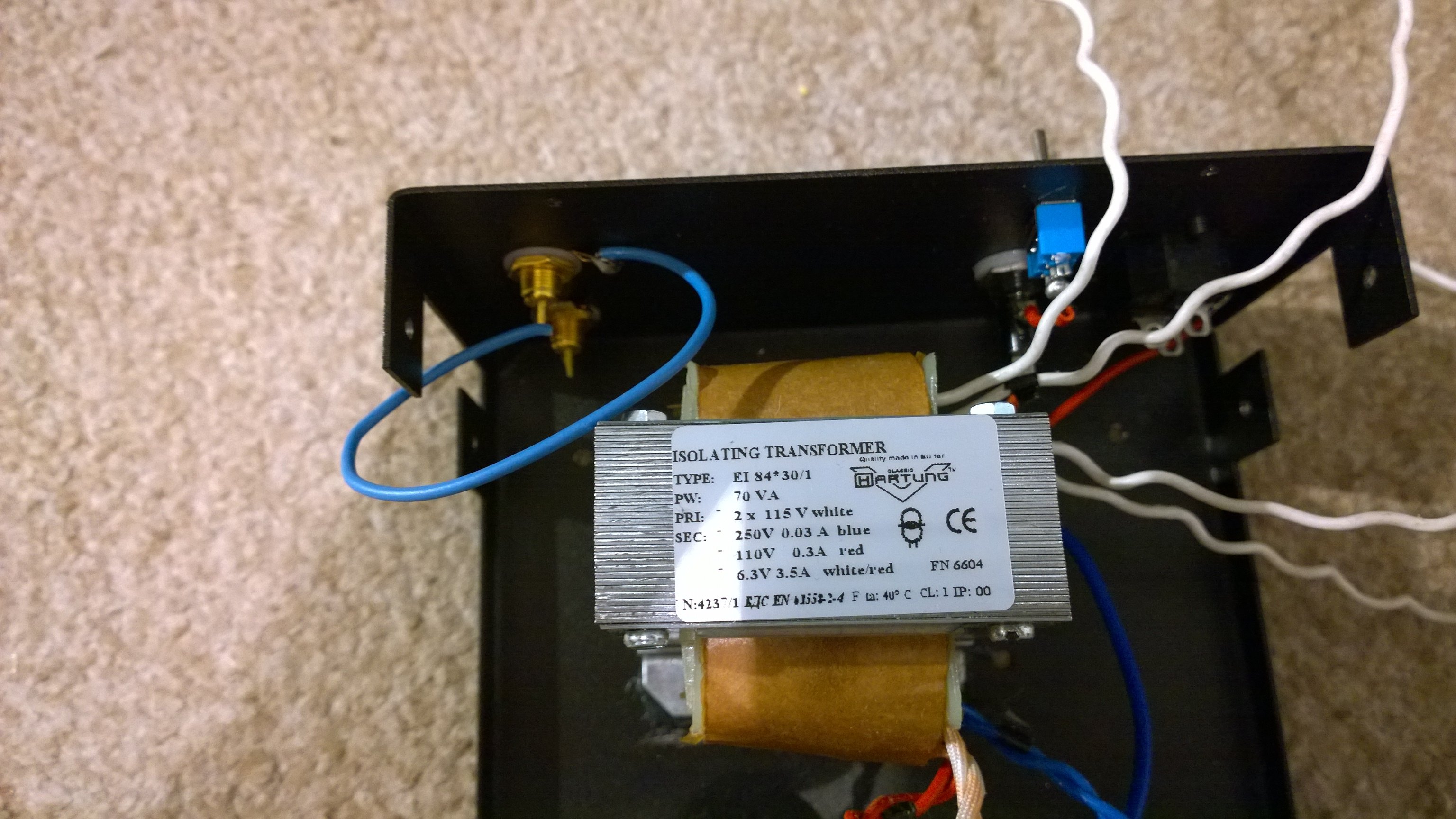

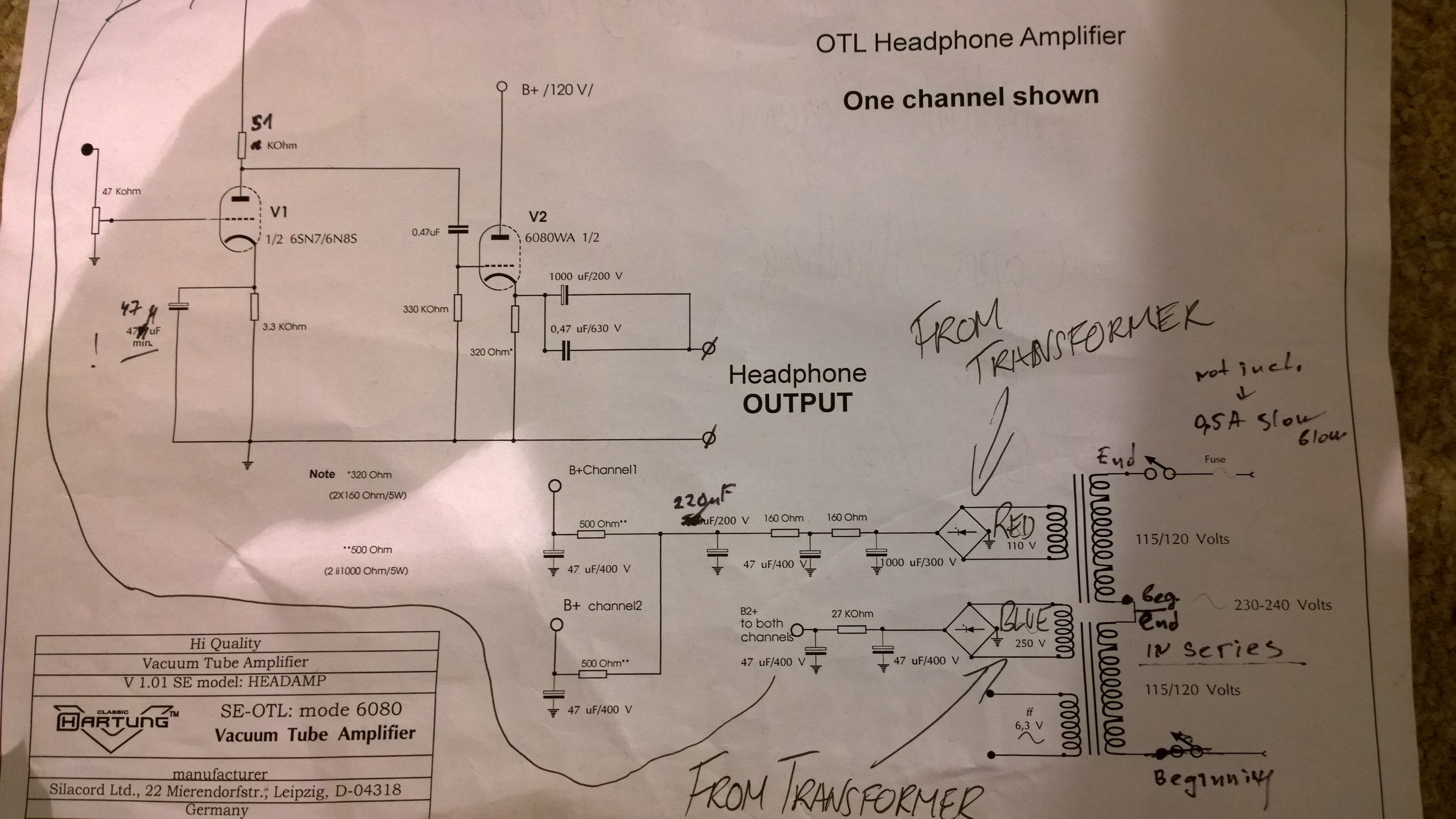

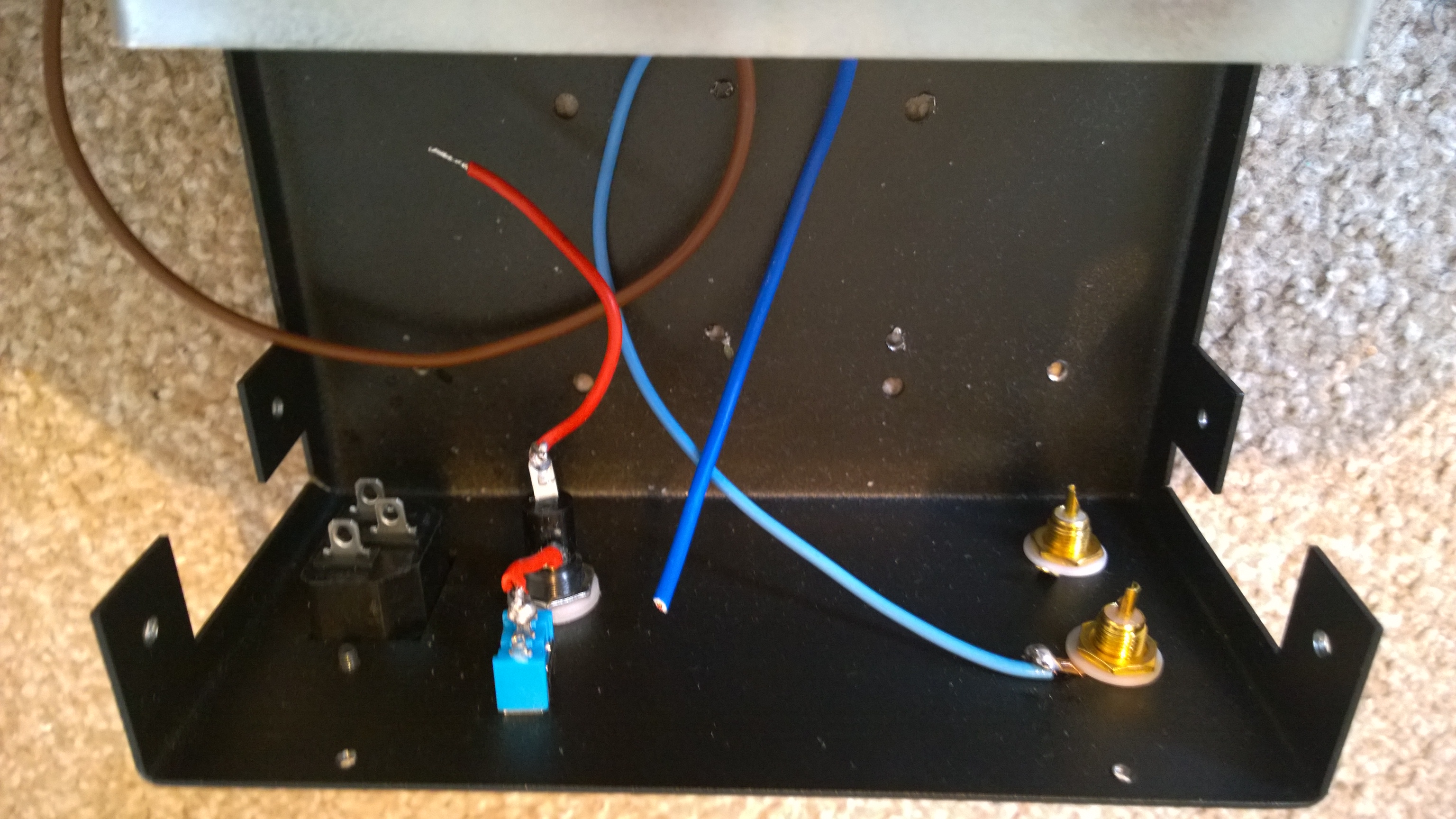

    Pictures of the transformer, schematic and plug, switch and fuse are attached.


    Attached Files:

  2. JimB

    JimB Super Moderator Most Helpful Member

    Joined:
    Sep 11, 2004
    Messages:
    6,429
    Likes:
    597
    Location:
    Peterhead, Scotland
    The tape usually indicates the start of the winding, ie which end of the wire was affixed to the bobbin first during the transformer winding process.

    When connecting the transformer for a 240v supply, the two primary windings must be connected in series.
    The phasing of the two windings is very important, the correct way works fine, the wrong way lets out the magic smoke*.

    The correct way to connect the windings is to connect the taped end of one winding to the untaped end of the other winding.

    You will then have a taped end and an untapped end to connect to the switch/fuse etc of the incoming mains supply, as per the schematic diagram.

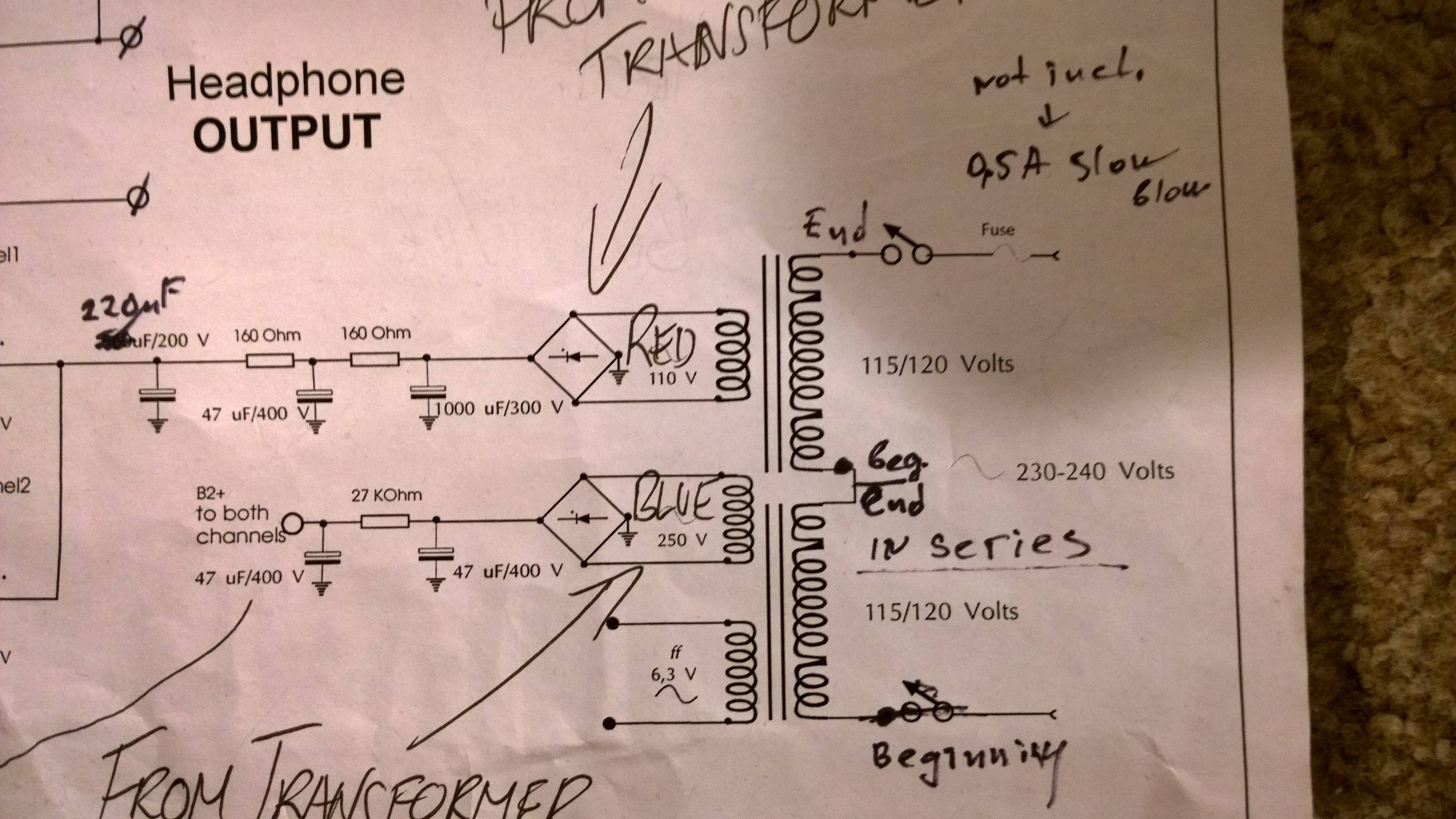

    Looking at the schematic, you will see that the primary windings of the transformer have been (ambiguously) annotated with big black dots.
