faraday

Member
hi everybody

How do I add LED to OrCAD Capture schematic?
in 16.0 version

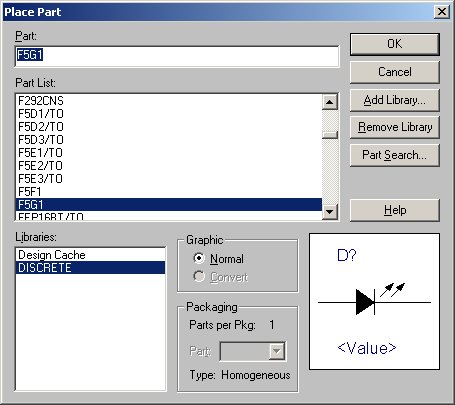

The library "discrete.olb" contains many LED.
An example:


Attachments

  • place_led.jpg
    31.2 KB · Views: 9,491
problem with using LED

hi all

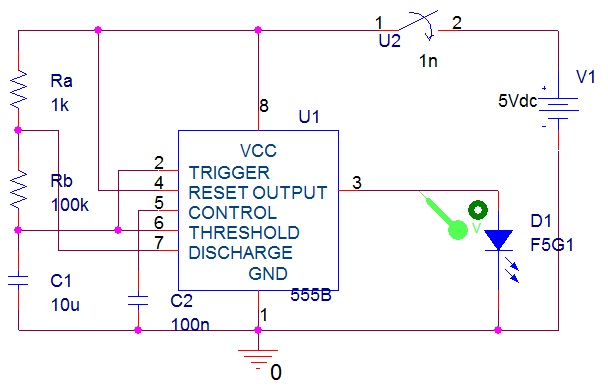

i wanna to connect LED to the output of 555.
but i don't know about this error:

Creating PSpice Netlist
Writing PSpice Flat Netlist D:\ORCAD PROJECTS\aze tek 10\aze tek 10-PSpiceFiles\SCHEMATIC1\SCHEMATIC1.net
WARNING [NET0093] No PSpiceTemplate for D1, ignoring
PSpice netlist generation complete


Attachments

  • soal.jpg
    53.6 KB · Views: 8,155
