    Let's see.
    Imagine something like an entertainment head-unit face-plate, or HVAC control panel, multi-function steering wheel as Burt suggested, or a Body Control Module which reads inputs from the driver's door master window/mirror control panel+ lock/unlock switch + window lockout switch, as well as the inputs from the individual door window switches.

  6. MrDEB

    MrDEB Well-Known Member

    Joined:
    Apr 16, 2007
    Messages:
    4,592
    Likes:
    25
    ONLINE
    interesting Mike. That link is similar to something Jon posted.
    am still considering the ladder circuit.

  7. JonSea

    JonSea Well-Known Member

    Joined:
    Oct 1, 2012
    Messages:
    1,629
    Likes:
    145
    Location:
    Seattle, WA
    ONLINE
    How many electric motors would you guess a 2004 Mercedes S211/E320 Estate Wagon would have? The answer will surprise you.

  8. dave miyares

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    2
    Likes:
    -10
  9. Pommie

    Pommie Well-Known Member Most Helpful Member

    Joined:
    Mar 18, 2005
    Messages:
    10,710
    Likes:
    421
    Location:
    Brisbane Australia
    ONLINE

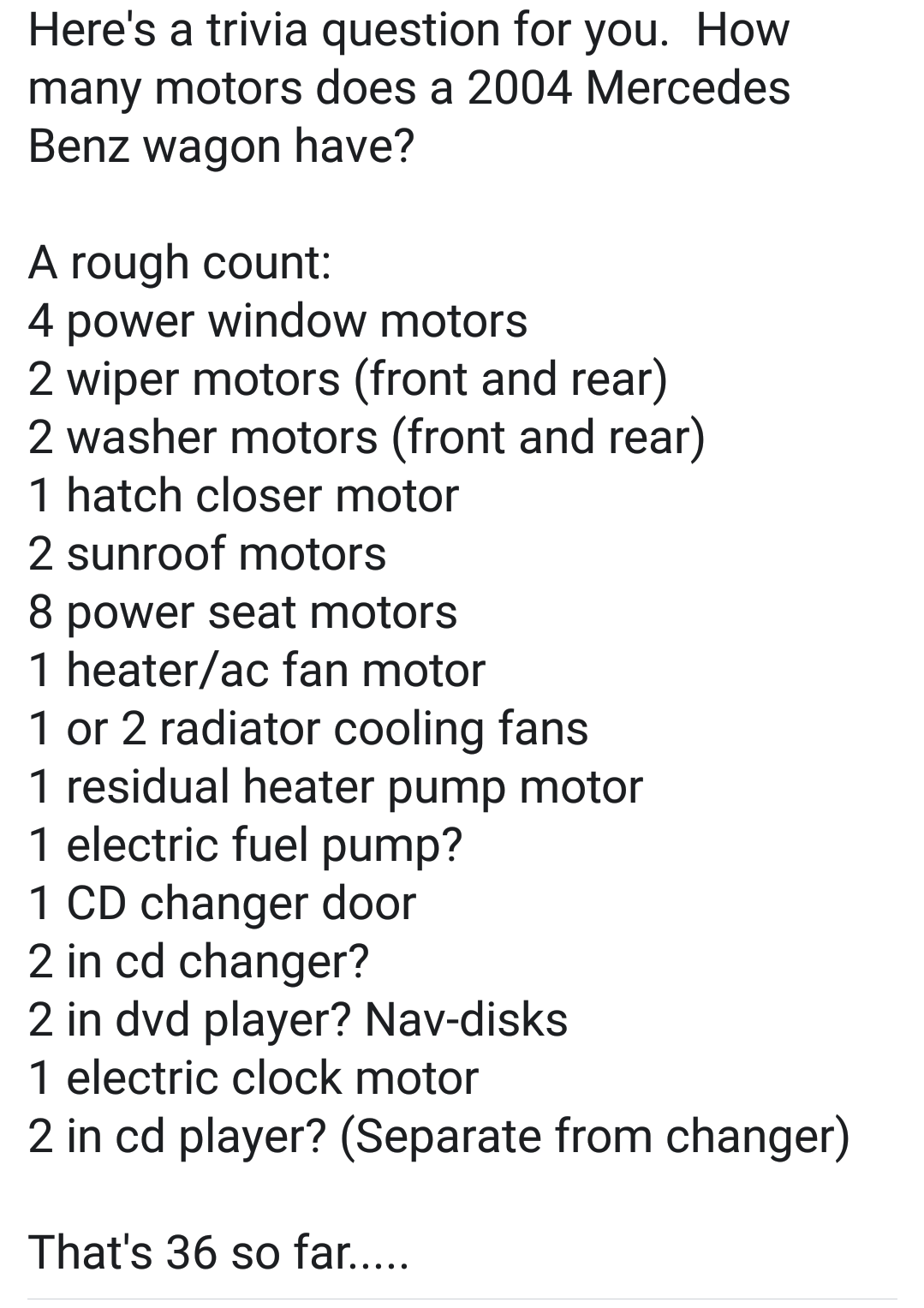

    I give up. How many? Rough guess, I can count at least 20 so probably 40.

    Mike.

  10. JonSea

    JonSea Well-Known Member

    Joined:
    Oct 1, 2012
    Messages:
    1,629
    Likes:
    145
    Location:
    Seattle, WA
    ONLINE
    I got to 36 but I think I missed a couple.

  11. JonSea

    JonSea Well-Known Member

    Joined:
    Oct 1, 2012
    Messages:
    1,629
    Likes:
    145
    Location:
    Seattle, WA
    ONLINE
    Thinking about switches, each back door has at least 3 - window up & down and door open. The front seats add lock/unlock and in the case of Mercedes about 6 more for seat controls. The driver' door adds a mirror control joystick (4 switches) and 2 to select which mirror, plus another joystick (4 switches) for steering wheel position.

    That's 36, just for doors and door controls. Nothing for the entertainment system or HVAC system yet.

  12. JonSea

    JonSea Well-Known Member

    Joined:
    Oct 1, 2012
    Messages:
    1,629
    Likes:
    145
    Location:
    Seattle, WA
    ONLINE
    Plus probably 6 more.....


  13. Mickster

    Mickster Well-Known Member

    Joined:
    Feb 24, 2008
    Messages:
    1,290
    Likes:
    104
    Location:
    BDA
    Add in the central door locking feedback switches inside the door lock actuators and that takes you over 40.

    EDIT: Sorry, you were talking motors not switches there - if the Merc is using vacuum central locking there is another motor in the pump unit.

  14. JonSea

    JonSea Well-Known Member

    Joined:
    Oct 1, 2012
    Messages:
    1,629
    Likes:
    145
    Location:
    Seattle, WA
    ONLINE
    The dock locks are electric, but solenoids, so I'm not including those as motors. Nor am I including whatever mechanism moves the damper doors in the airconditioning system. They are probably driven by servos which I would not count as a motor in this discussion, but they could be driven by geared stepper motors, which I would count.

    I started thinking about this sitting in the parked car just after I shut it off. After the key is pulled out, a number of motors can be heard for a minute or more.

  15. Pommie

    Pommie Well-Known Member Most Helpful Member

    Joined:
    Mar 18, 2005
    Messages:
    10,710
    Likes:
    421
    Location:
    Brisbane Australia
    ONLINE
    Aerial, headlight height seem to be missing.

    Mike.
    Actually, Mercs don't have visible aerials.

  16. JonSea

    JonSea Well-Known Member

    Joined:
    Oct 1, 2012
    Messages:
    1,629
    Likes:
    145
    Location:
    Seattle, WA
    ONLINE
    Yep, no moving (or even visible) antenna on ours. Nor headlight leveling but there are active hydraulic shocks in the rear, so there is a hydraulic pump missing off the list.

    This car also has electric brakes - the brake pedal is not directly linked to anything hydraulic, so there is another hydraulic pump to pressurize the brake system. There may be an additional motor providing feedback on braking.

  17. MrDEB

    MrDEB Well-Known Member

    Joined:
    Apr 16, 2007
    Messages:
    4,592
    Likes:
    25
    ONLINE
    Learn something new every day. I never would have though a vehicle would have that many switches.
    And all I own is a 2013 Prius and a 1997 chevy S10 which does not have electric windows, door locks, fancy radio etc.
    The Prius is a base modle but it does have power windows and locks. Best car I have ever owned.

  18. Mickster

    Mickster Well-Known Member

    Joined:
    Feb 24, 2008
    Messages:
    1,290
    Likes:
    104
    Location:
    BDA
    Jon, are you sure they are solenoids?
    Most of the ones I have seen are operated using geared DC motors. They sort of sound like a solenoid in operation, but when you take them apart there is a DC motor and gear-train in there.
    Not familiar with the Merc actuators, so if you have had them apart and they are solenoids, that is good enough for me.

    EDIT: There would also be motors in the instrument cluster, to move the gauge needles, also, depending upon the engine speed regulation (cable or drive-by-wire) method, there could be some form of idle air control motor, or an electronic throttle body motor.

    Last edited: Jan 28, 2018
  19. JonSea

    JonSea Well-Known Member

    Joined:
    Oct 1, 2012
    Messages:
    1,629
    Likes:
    145
    Location:
    Seattle, WA
    ONLINE
    I've never had the door lock mechanism apart, so you are probably right. Add 5 more (it's a wagon with a hatch).

    The gauges are servos, which I've arbitrarily not included in the count. That does remind me though, I should get some of those gauge servos from ebay to play with.

  20. MrDEB

    MrDEB Well-Known Member

    Joined:
    Apr 16, 2007
    Messages:
    4,592
    Likes:
    25
    ONLINE
    gauge servos?? your joking??

  21. JonSea

    JonSea Well-Known Member

    Joined:
    Oct 1, 2012
    Messages:
    1,629
    Likes:
    145
    Location:
    Seattle, WA
    ONLINE
    I misspoke. Gauge stepper motors.


  22. Mickster

    Mickster Well-Known Member

    Joined:
    Feb 24, 2008
    Messages:
    1,290
    Likes:
    104
    Location:
    BDA
    ^Yup, I have a few of those somewhere. Steppers, not the kits.
