• Oct 25, 2016

• #1

I searched myself silly trying to find out how to set the grid default in "library", ".brd" and ".sch" to 0.05 inch and the alt to 0.005 inch.
I know it must be done in eagle.scr but that is as far as I got.
Help is much appreciated!
Thks
Erik



S

spec

Well-Known Member

Most Helpful Member

• Oct 25, 2016

• #2

Hy earckens,

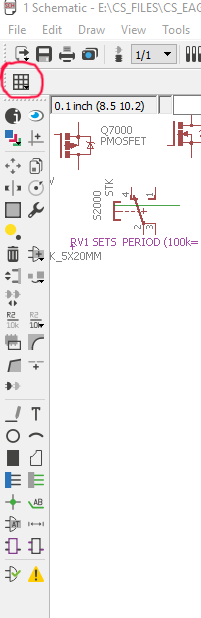

Open the schematic and left click on the grid icon top left (circled in red) to get a drop-down menu. Then just enter the grid spacing that you want: I always use 0.05 inches rather than the default 0.1 inches. You can also turn the grid on and off from the same drop-down menu.

spec



earckens

Member

• Oct 25, 2016

• #3

Hi spec, yes I know that one but these are the default settings which are the ones I want to change.



S

spec

Well-Known Member

Most Helpful Member

• Oct 25, 2016

• #4

earckens said:

Hi spec, yes I know that one but these are the default settings which are the ones I want to change.

Click to expand...

Oh I see. I think there is a script file that you can change. I had a go at it once but could not make head nor tail of the scrips. If you find a simple answer I would like to know too.

spec



Last edited: Oct 25, 2016

S

spec

Well-Known Member

Most Helpful Member

• Oct 25, 2016

• #5

earckens,

I think this is the file that you need to modify with a standard plain text editor: C: /EAGLE> scr> eagle.scr

eadle.scr is divided into the various high level interfaces of EAGLE: schematic editor, component editor, layout editor, etc.

I had a go at editing it once but, as I said, could not get any sense out of the scripts.

spec

PS: You will find more infor here: http://ftp.cadsoft.de/faq.htm.en#06011304



Last edited: Oct 25, 2016

earckens

Member

• Oct 25, 2016

• #6

That is what I am struggling with, and as I said, it is a real pain trying to find some proper examples of how I want it. Hoping someone can post an example with the default as I would like (post #1)..



S

spec

Well-Known Member

Most Helpful Member

• Oct 25, 2016

• #7

earckens said:

That is what I am struggling with, and as I said, it is a real pain trying to find some proper examples of how I want it. Hoping someone can post an example with the default as I would like (post #1)..

Click to expand...

oops, sorry earckens: I never could read.

spec

PS: have you seen the info at the link in post #5 above? (QA #7)



Last edited: Oct 25, 2016

earckens

Member

• Oct 25, 2016

• #8

Hi spec, I had not seen your thread, nor the link; but what is said in the link does not help me. Not "Deutsche grundligkeit"..



S

spec

Well-Known Member

Most Helpful Member

• Oct 25, 2016

• #9

Hi again earckens, I hope I am not pointing out something that you already know but I have just made this change to eagle.sch

SCH:
# Grid Default;
Grid 0.05 On;

SCH: is the script sub group for the schematic editor

'Grid Default;' was the original script which I commented out with the #
I then and inserted 'Grid 0.05 On;'

This had the effect I was after:
Automatically set the grid from the default of 0.1 inch and off, to grid= 0.05 inch and on

spec



earckens

Member

• Oct 25, 2016

• #10

Hi spec, that is part of the solution I am looking for. Now how do you set the "alt" default?
And where do you specify inch or mm?



S

spec

Well-Known Member

Most Helpful Member

• Oct 25, 2016

• #11

earckens said:

Hi spec, that is part of the solution I am looking for. Now how do you set the "alt" default?
And where do you specify inch or mm?

Click to expand...

Oh, I got something right.

I am doing some HiFi things at the moment, but will investigate. I'm always a bit afeared of messing with scrips.

spec



JonSea

Well-Known Member

Most Helpful Member

• Oct 25, 2016

• #12

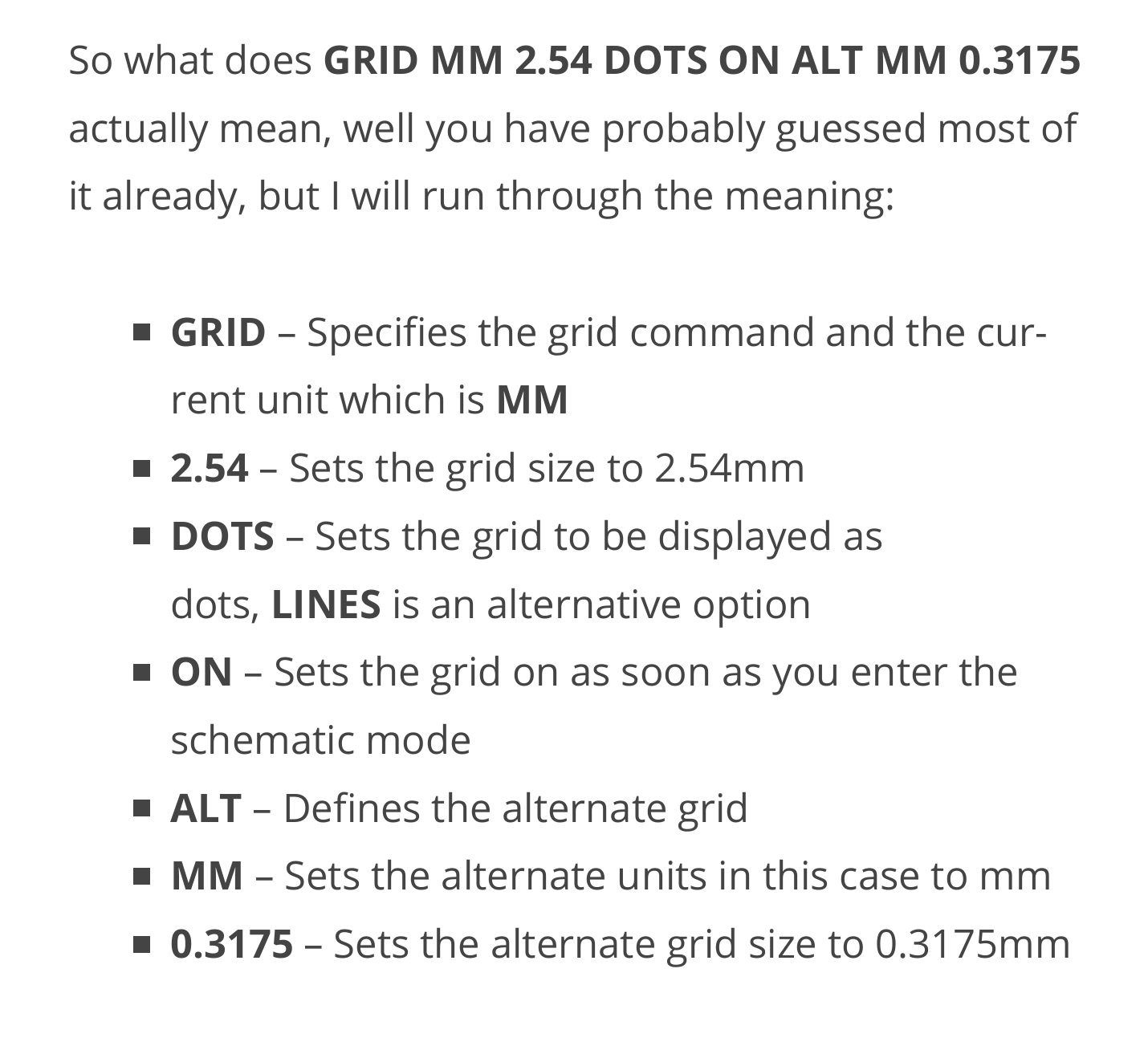

Check out this link. There is a good description of the eagle.scr file, including setting alt grid.

I need to do some housekeeping on my Eagle installation...like deleting all the libraries I don't use from the list and adding those I do.



JonSea

Well-Known Member

Most Helpful Member

• Oct 25, 2016

• #13

From the above link:



earckens

Member

• Oct 27, 2016

• #14

I did find that too but I am not sure how to change my current "eagle.scr" to what I want it to do:

1. dimensions in inches
2. standard grid 0.05
3. alt grid 0.005

This for .sch, .brd., .lib

my current file in upload.



Attachments

• eagle.pdf

  6.9 KB · Views: 326

earckens

Member

• Oct 27, 2016

• #15

What do I need to do to get warnings when people respond to my messages? I used to get emails, until a few weeks ago all of a sudden I get nothing anymore



earckens

Member

• Oct 27, 2016

• #16

I tried this, in replacement of "Grid default;": GRID INCH 0.05 LINES ON ALT INCH 0.005;

Does not work



S

spec

Well-Known Member

Most Helpful Member

• Oct 27, 2016

• #17

Just a guess: try this just to see if it works:

GRID 0.05 LINES ON ALT 0.07 LINES ON

The default grid is INCH and I am not sure that you can set GRID as fine as 0.005

spec



earckens

Member

• Oct 27, 2016

• #18

Spec, just tried your proposal. No change, still as before.

I open the eagle.scr file in notepad, and save with admin privileges as eagle.scr in ANSI coding (other options are: Unicode, Unicode Big Endian, UTF-8).



earckens

Member

• Oct 27, 2016

• #19

I just tried this: GRID LAST;

..that works when I open .sch, change the grid to other then default and close everything. After restart it is back to last setting.

Now this works for .sch, I assume it will for .brd (will test in a minute) but why not for .lbr?

Spec, I try yours now



earckens

Member

• Oct 27, 2016

• #20

spec said:

The default grid is INCH and I am not sure that you can set GRID as fine as 0.005

spec

Click to expand...

0.005 is also possible when you do it manually, so why would it not work as default?
