Shocking Pen?

Status
Not open for further replies.

Woohoo

New Member
I need help making a shock pen to trick my friends and stuff..
when u press on the top, it shocks the finger...
does anyone have any good links to making it or know how to make it?

thanks


bogdanfirst

New Member
the best way i think is to have a cap inside the pen and another device to charge the cap.
i think that it will be preety hard to make the pen as you want and keep the pen working.....
do you want to keep the pen working and gove a shock too?


kinjalgp

Active Member

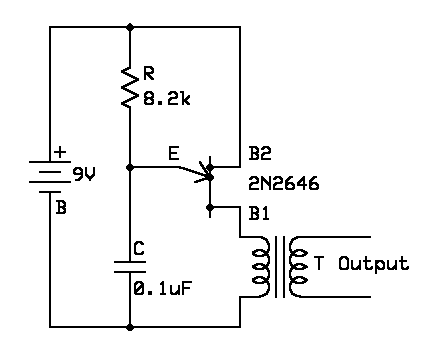

Ok try this UJT relexation schematic. You need only 3 components and a small transformer. The transformer can be constructed using a tiny ferrite rod. Wind thin enameled copper wire on the rod with deisred no. of turns ratio of primary:secondary. Secondary turns should be more than primary for boosting the voltage.

The frequncy of UJT oscillator can be varied by changing R & C values. At present it is around 1kHz. The forula of frequency is R*C*ln(1/(1-n)) Where n = 0.68. Also don't forget the series resistor R4 in the transfomer secondary as it is shown in original stun gun schematic.

Solder the components on a thin strip of general purpose vero-board which can be fitted inside a pen. Cut the strip froma large board using hexsaw blade. Battery size is still a problem but you can put four 1.5V button batteries in series which will give 6V. I think the circuit will work at 6V too.


Attachments

bogdanfirst

New Member
i haven't seen them in a while, but i think that they are still made : some batterise that are the same size of a AAA bat, but just half the lenght and have 12V.
this could be used.......


lavenatti

Member
The trigger transformers used for strobe lights might fit in a pen. They put out a pretty high voltage.


Jaw174

New Member
a friend of mine bought one at a gas station that uses a small reed type relay firing into a small transformer. the output of that was in a loo from the body of the ped, and then the end of the clicky part, which had a switch and would only aply the voltage tot he realy when the penn was clicked.


kinjalgp

Active Member
That pen you are talking about is a mechanical one which uses the same concept as household piezo gas lighters do. Whenever you press the trigger, a metal bar is truck heavily onto a piezo material which generates a high voltage spark and its really painful to touch it.

Even gas ligther can be turned into a schocking pen. Do it at your own risk. The person you are shocking might not leave any one-piece bone in your body. :)


Woohoo

New Member
kinjalgp said:
That pen you are talking about is a mechanical one which uses the same concept as household piezo gas lighters do. Whenever you press the trigger, a metal bar is truck heavily onto a piezo material which generates a high voltage spark and its really painful to touch it.

Even gas ligther can be turned into a schocking pen. Do it at your own risk. The person you are shocking might not leave any one-piece bone in your body. :)
cool, so where can i get this "piezo" material?


Jaw174

New Member
and its best to elve it inside there so, becasue its hard to make it generate teh same voltage after u take it out... me found this out the hard way!


Woohoo

New Member
cool everyone, thanks for ur help

so this is what i should do:
find the piezo material and stick it inside the pen and over it put a metal bar that is connected to the clicker-thing
when its clicked, its touches the piezo and shocks?

thats what i understood and i dunno if itll work, so can anyone explain it step by step so ill know what to do and wont shock myself badly.. hehe :lol:

thanks


kinjalgp

Active Member
Piezo material when mechanically deformed i.e if you try to change its shape or size mechanically produces electric pulses. This concept is used in lighters.


dabirassaf

New Member
A shocking pen
