Power supply help

Status
Not open for further replies.

chris414

New Member
Hi everyone. I'm trying to build myself a lab power supply - up til now I have been using a computer power supply with LM338 voltage regulator, and it has been fine for my purposes. What I'd like now though is:
- greater voltage range, 3V to say 35 or 40 volts
- output current 2A or more (preferably more)
- positive / negative outputs, with a "ground" between the two (would like to be able to change the ratio between teh ground the positive/negative outputs)

I've been looking at a bunch of IC's that do this kind of thing, but am getting quite confused by it all:confused: My current plan is to keep the ATX power supply (it produces 24V max, with 7A maximum current - forget where i read that, correct me if i'm wrong) and use a DC converter to either step the voltage up or down depending on what is required (90% of the time i'll be using a voltage under 12V).

Is something like the LM5118 on the right track? Page 6 of the LM137 datasheet has a sample circuit of an adjustable lab voltage regulator which i like the look of. I was thinking maybe combining the two, ie. using the LM5118 to produce a large voltage, and using the LM137/LM337 combination to create the positive / negative / ground outputs.

Any thoughts? Sorry, this is all unchartered territory for me:)


bountyhunter

Well-Known Member
Trying to build an 80W power supply that must both boost and buck (go above and below the input voltage) makes your job infinitely more difficult.

What I would do is buy a decent 36V/3A power transformer and do the basic bridge rectifier/huge cap thing to make the unregulated voltage of about 50V ballpark. Then use a simple switcher 3A buck converter to step it down.

having said that, you can probably buy a small 80W lab supply pretty cheap.

Last edited:

k7elp60

Active Member
I have built a lot of power supplys, most of them variable in voltage. I have found that using 3 terminal regulators such as the LM338 is not suitable for a large range in variable voltages because the internal current limit and in out differential sensors will shut it down no matter how big the heat sink is. I have use LM723's with external pass transistors with great sucess. I have used them to drive external Mosfets with equal sucess.


bountyhunter

Well-Known Member
using 3 terminal regulators such as the LM338 is not suitable for a large range in variable voltages because the internal current limit and in out differential sensors will shut it down no matter how big the heat sink is.
Correct. They all have built in SOA (safe operating area) protection on the power transistor so the load current limits lower and lower as the voltage drop across the power transistor increases. For example: an LM317 is good for close to 2A (typical) with about 5V across it, but only about 1/2A if there is 25V across it.

Last edited:

k7elp60

Active Member

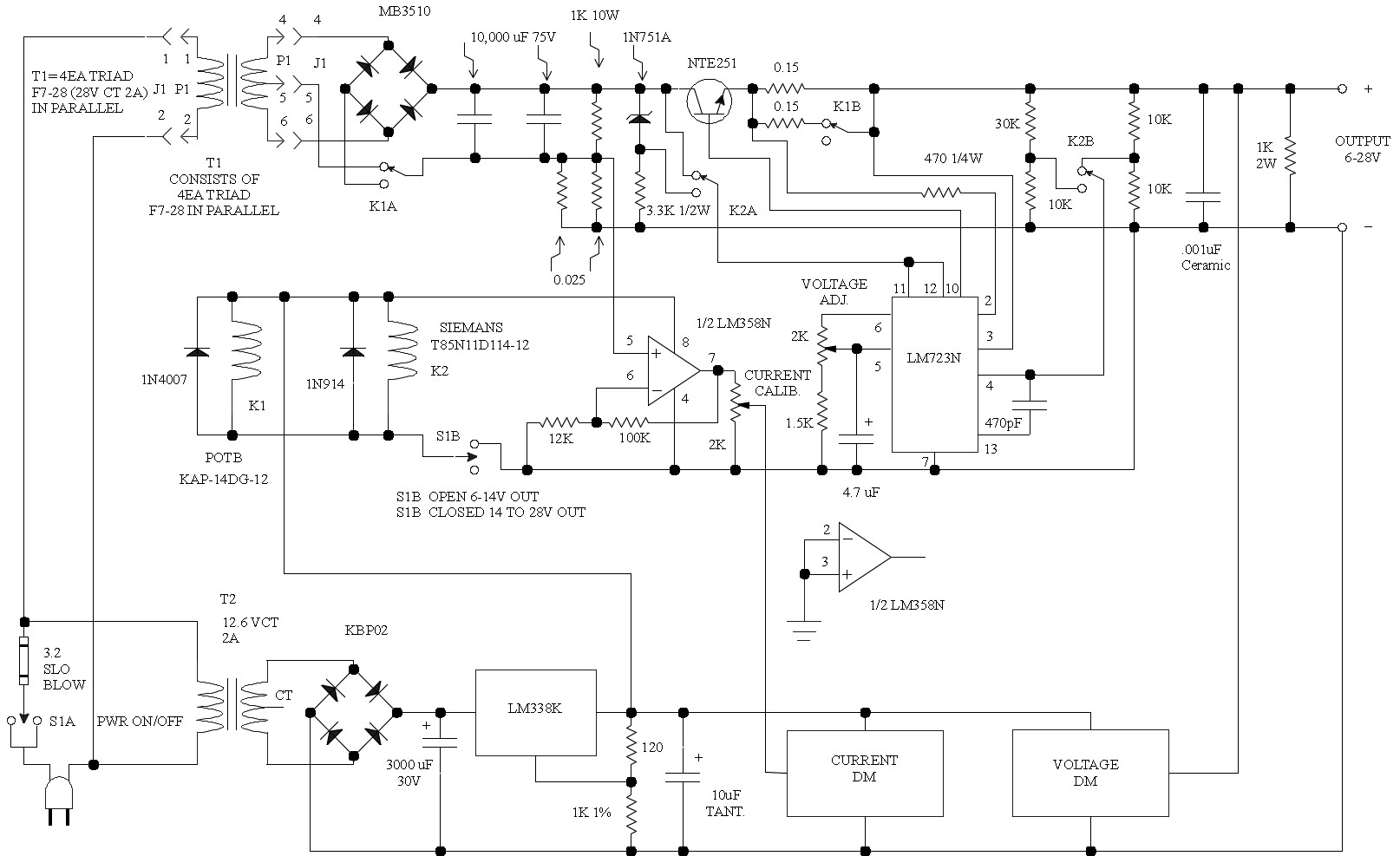

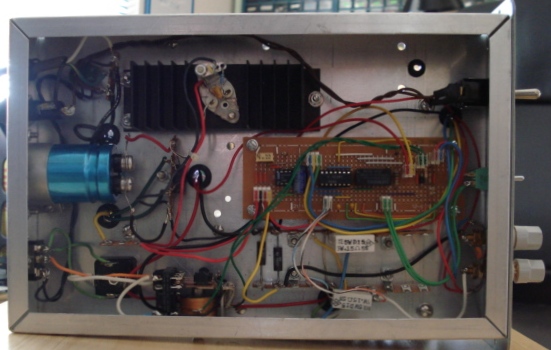

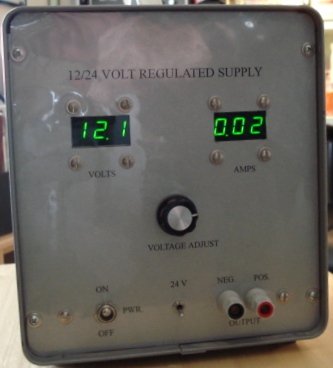

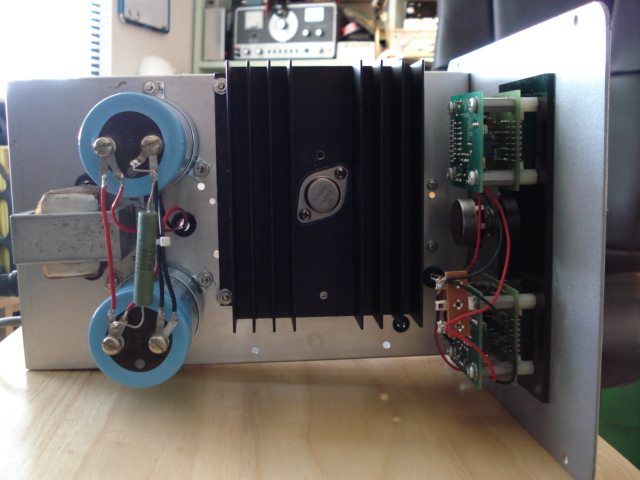

Here are some pictures and the schematic of a dual power supply that has two ranges 6-14V @ 8A and 12-28V @ 4A. I could of went to near 0V, but I decided it wasn't necessary.
I used 4 transformers in parallel to supply the LV for the rectifier. At one time I had a large quantity of the transformers.
