Anyone has wiring diagrams for RTT1085 power transformer of CT-W910R?...wanna know the ouput voltage/s of the secondary wiring. TIA.


cowboybob

Well-Known Member
Most Helpful Member
Welcome to ETO, Popoy!

Gotta love Google... From this This site.

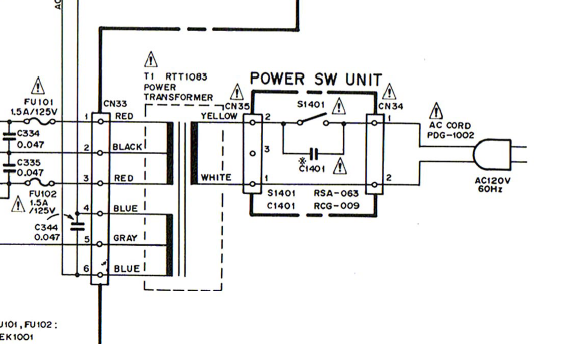

Right manual (best I can tell), but different TI stock # (RTT 1083, rather than the RTT 1085 you posted).

Schematics were screwed up by Acrobat Reader DC...


Popoy

New Member
I had that schematic diagram from hifiengine...I need the output voltage of th TF...thanx anyway.
