Magic Home led controller component identification help please

Discussion in 'Repairing Electronics' started by JavaJoeUK, Mar 11, 2018.

  1. JavaJoeUK

    JavaJoeUK New Member

    Joined:
    Mar 11, 2018
    Messages:
    6
    Likes:
    0
    Hi all I am new to the electronics hobby but I am very interested in th IoT and I would like to build a single pcb of the above LED controller to experiment with.
    All of the smd components are too much of fiddle so I thought of building a bigger version for me to mess about with and learn along the way.
    the LED controller is only the 3 channel(RGB) one but looks as if its only missing a couple of components to make it 4 channel(RGBW).
    Also the is one is missing the IR remote sensor.
    So the bits I'm having trouble with are the black things in the middle at L1 and the SOC-8 ic? What are the y so I can get a different type.
    Thanks in advance.
    IMG_0173.JPG IMG_0177.JPG

  2. Nigel Goodwin

    Nigel Goodwin Super Moderator Most Helpful Member

    Joined:
    Nov 17, 2003
    Messages:
    39,821
    Likes:
    741
    Location:
    Derbyshire, UK
    ONLINE
    L1 is an inductor, and presumably the 8 pin chip is a switch-mode device using that inductor, but the picture doesn't show the number clear enough to read.

  3. JavaJoeUK

    JavaJoeUK New Member

    Joined:
    Mar 11, 2018
    Messages:
    6
    Likes:
    0
    Hi thanks for the quick reply I have a photo which might help.
    Could this be for the IR remote optocoupler?

    Last edited: Mar 11, 2018
  4. dave miyares

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    2
    Likes:
    -10



  5. Pommie

    Pommie Well-Known Member Most Helpful Member

    Joined:
    Mar 18, 2005
    Messages:
    10,824
    Likes:
    435
    Location:
    Brisbane Australia
    That's an IC. I would guess the IR receiver is off the board and connects to the terminal marked IR.

    Mike.

  6. JimB

    JimB Super Moderator Most Helpful Member

    Joined:
    Sep 11, 2004
    Messages:
    6,772
    Likes:
    672
    Location:
    Peterhead, Scotland
    A bold claim, what makes you think that?

    IR Remote?
    Then why is there a big module with an FCC logo on it, which looks very much like a radio control module?

    JimB

    • Like Like x 1
  7. Nigel Goodwin

    Nigel Goodwin Super Moderator Most Helpful Member

    Joined:
    Nov 17, 2003
    Messages:
    39,821
    Likes:
    741
    Location:
    Derbyshire, UK
    ONLINE
    That looks like an ESP8266 WiFi module, presumably the device is a WiFi lights controller?.

  8. dave miyares

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    2
    Likes:
    -10



  9. JavaJoeUK

    JavaJoeUK New Member

    Joined:
    Mar 11, 2018
    Messages:
    6
    Likes:
    0
    Hi JimB the company that make these wifi led controllers make 3 types all in the same sized packed they are RGB, RGBW and RGBW with IR remote.
    From looking at photos on the web it is only a remote IR sensor on the end of a cable and the difference between the 3 and the 4 I was guessing at as there are empty pads at pin 4 which are missing a mosfet, resistor and transistor.
    It is controlled by an ESP8266 wifi chip which I was trying to flash before I broke it.

  10. JavaJoeUK

    JavaJoeUK New Member

    Joined:
    Mar 11, 2018
    Messages:
    6
    Likes:
    0

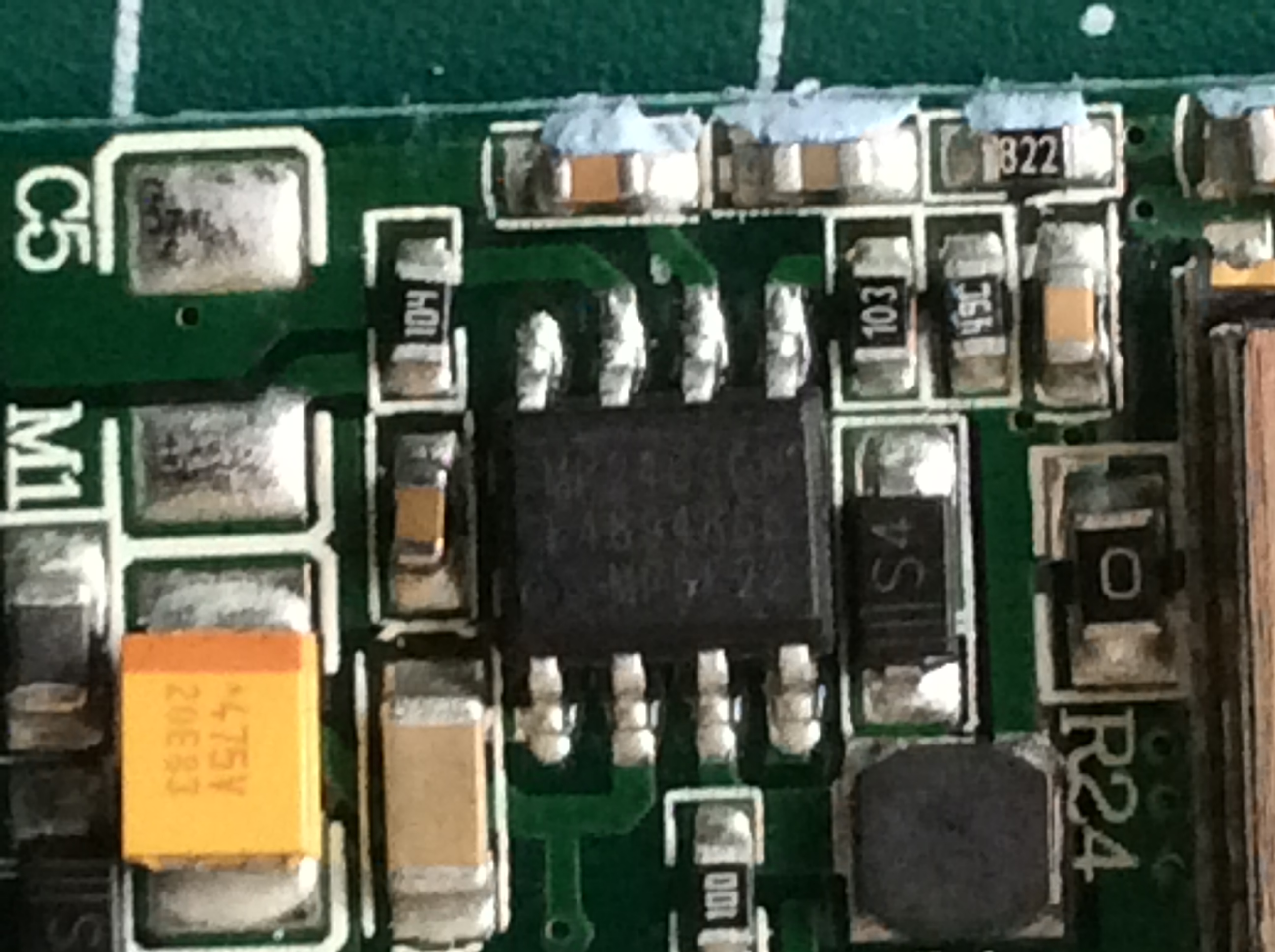

    So my next problem is how to identify what the ic is the numbers from the top are I think,
    MP24080N
    F4894868
    MP558

  11. Nigel Goodwin

    Nigel Goodwin Super Moderator Most Helpful Member

    Joined:
    Nov 17, 2003
    Messages:
    39,821
    Likes:
    741
    Location:
    Derbyshire, UK
    ONLINE
    None of those numbers seem to make any sense on google?, it's possible that it's an in-house number so there won't be any information available.

  12. JavaJoeUK

    JavaJoeUK New Member

    Joined:
    Mar 11, 2018
    Messages:
    6
    Likes:
    0
    Thanks I had no look either. Im going to draw the circuit out and see what goes where, then I might be able to figure out what its doing.

  13. unclejed613

    unclejed613 Well-Known Member

    Joined:
    Apr 3, 2009
    Messages:
    2,316
    Likes:
    160
    J1 is where the IR sensor would connect, if there was one, but the components associated with J1 aren't populated either, so just adding an IR receiver won't work.

  14. JavaJoeUK

    JavaJoeUK New Member

    Joined:
    Mar 11, 2018
    Messages:
    6
    Likes:
    0
    Yes Ive been tracing things out and the IR connection is power and data. The data line goes to the esp8266. So im wondering if the IC is something to do with logic leveler or power reducer.
    Still learning all this.
