Dip-Switch Pinout?

Status
Not open for further replies.

wuchy143

Member
Hello All,

I have spec'd out a dip switch where you can find it at digikey

Digi-Key - CT1954MST-ND (Manufacturer - 195-4MST)

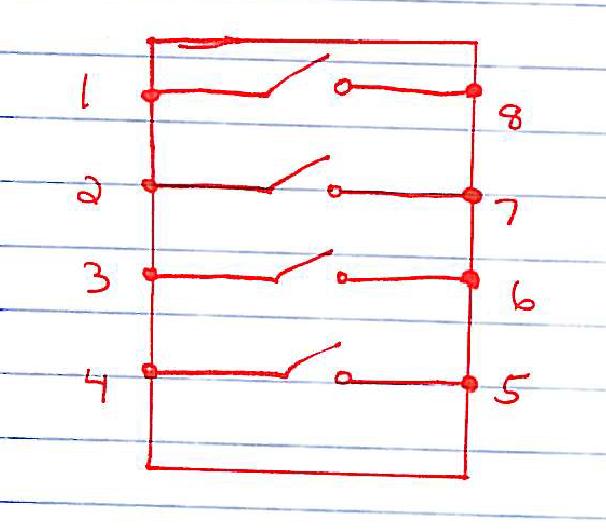

From the datasheet I can't figure out the orientation of the SPST switches inside this 8-dip package. I would assume it looks like the drawing I have attached. Can anyone let me know if I"m right. I tried calling them but can't find a # for an application engineer to speak with. Sometime a picture is worth a thousand words.

Thanks

-mike


Attachments

  • dip_switch.JPG
    33.2 KB · Views: 178
