H JST 3 C

Discussion in 'Datasheets, Manuals or Parts' started by jocanon, Jan 9, 2015.

  1. jocanon

    jocanon Member

    Joined:
    Jul 10, 2012
    Messages:
    703
    Likes:
    2
    Location:
    Phoenix, AZ

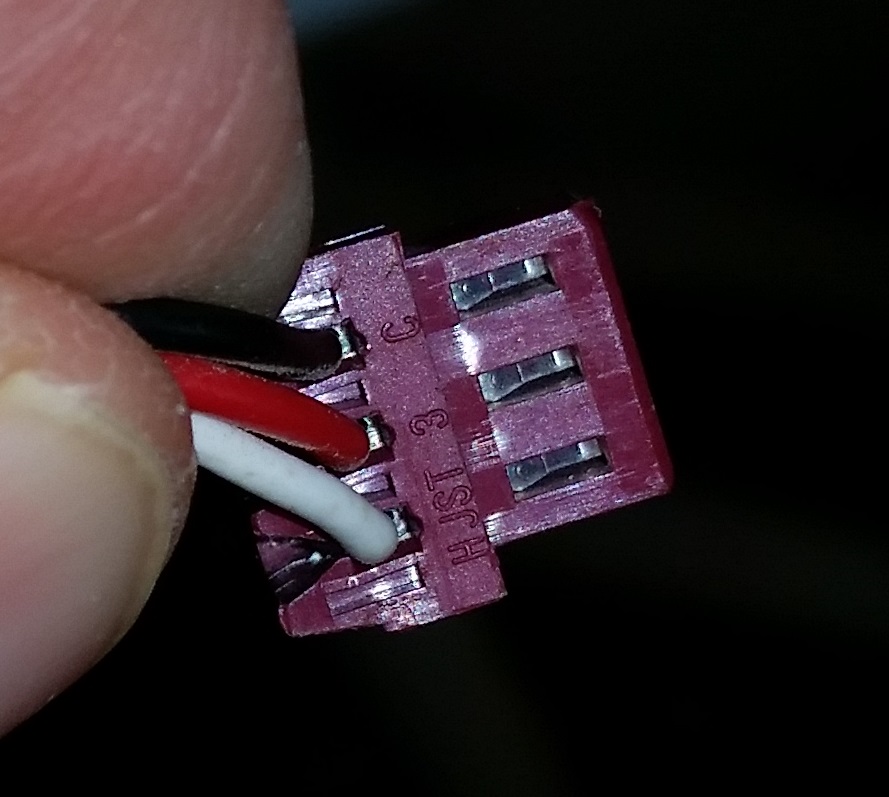

    Does anybody know where I can find this exact connector? The label on it says "H JST 3 C".


    Attached Files:

  2. DerStrom8

    DerStrom8 Super Moderator Most Helpful Member

    Joined:
    Aug 9, 2010
    Messages:
    5,343
    Likes:
    497
    Location:
    Vermont (GMT-5:00)
    It looks like a fairly ordinary JST-3 connector, it just happens to be at a right-angle. Are you looking for the connector itself, or one with wires already attached? Does it need to be 90-degree?

    I suggest searching "JST 3 connector" or something similar on Mouser. You may find what you're looking for there.

    Last edited: Jan 9, 2015
  3. jocanon

    jocanon Member

    Joined:
    Jul 10, 2012
    Messages:
    703
    Likes:
    2
    Location:
    Phoenix, AZ
    just the connector, doesn't have to be 90-degree but that is preferred.

  4. dave

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    -
    Likes:
    0



  5. vtech

    vtech Member

    Joined:
    May 21, 2012
    Messages:
    141
    Likes:
    19
    Location:
    Atlanta, Ga

    They are categorized as "Insulation displacement" connectors and made in various sizes. Measure the pitch and do a search on JST-mfg site.

  6. schulrog

    schulrog New Member

    Joined:
    May 15, 2017
    Messages:
    1
    Likes:
    0

    Attached Files:

    • eNR.pdf
      File size:
      1.4 MB
      Views:
      5
