Sziklai pair amplifier

Status
Not open for further replies.

roronoa

New Member

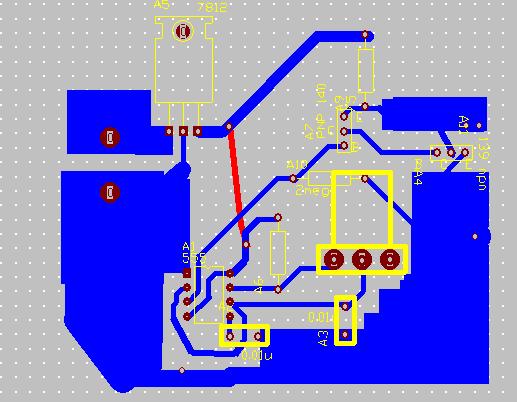

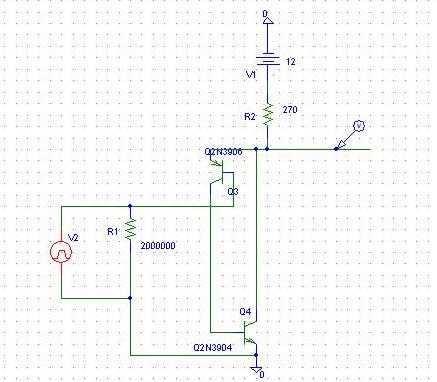

Hi everyone im facing problem with my Sziklai pair. Pls look at my attach file. in the schematic,there is a squarewave input which i replace in my circuit board with a 555 timer. then u can c from my schematic i giv an input of 12V to the transistor.

But the problem is when i fabricate it on a pcb. and when i on the power supply, the output only gives an output voltage of 2.5V. I already make sure that the input does give 12V when its not connected to the circuit. and i found out tat when i take out the 555timer from the pcb(its place on a socket) the output gives a 8V output

can anyone tell me why i cant get 12V at the output??and how to solve this? thanks for replying


Attachments

  • untitled2.JPG
    37.6 KB · Views: 367
  • untitled.JPG
    31 KB · Views: 514
