Name this component!

Discussion in 'General Electronics Chat' started by HiTech, Jul 18, 2006.

  1. JimB

    JimB Super Moderator Most Helpful Member

    Joined:
    Sep 11, 2004
    Messages:
    6,392
    Likes:
    593
    Location:
    Peterhead, Scotland
    I think the prize goes to Zevon8 this time.

    It is a mains power connector as used on Royal Navy ships and submarines.
    The thing does lock into place and is sealed by an O-ring to make a waterproof connection. For those who are into such things it would probably be rated IP66.

    If I remember correctly, the switch on the socket locks the plug into place when the power is turned on.

    The stainless steel tab on the right hand side of the picture is for pulling the plug out of the socket.

    JimB

  2. _nox_

    _nox_ New Member

    Joined:
    Jul 28, 2006
    Messages:
    158
    Likes:
    0
    ok ... now this is simple:
    [​IMG]

  3. HiTech

    HiTech Well-Known Member

    Joined:
    Jun 28, 2006
    Messages:
    2,874
    Likes:
    30
    Location:
    Penna. USA
    a tuning capacitor out of a cheap azz transistor radio from the country who's leader is this laundry boy:

    [​IMG]

    Last edited: Aug 10, 2006
  4. dave

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    -
    Likes:
    0



  5. HiTech

    HiTech Well-Known Member

    Joined:
    Jun 28, 2006
    Messages:
    2,874
    Likes:
    30
    Location:
    Penna. USA

    What's are these little gems?


    Attached Files:

  6. Roff

    Roff Well-Known Member

    Joined:
    May 16, 2003
    Messages:
    7,757
    Likes:
    89
    Location:
    Idaho, USA
    Reed relays.

  7. StopGo

    StopGo New Member

    Joined:
    May 21, 2006
    Messages:
    75
    Likes:
    0
    Location:
    UK
    Solid state relays ?

  8. HiTech

    HiTech Well-Known Member

    Joined:
    Jun 28, 2006
    Messages:
    2,874
    Likes:
    30
    Location:
    Penna. USA
    A pat on the back to RonH --- 5v reed relays

  9. mramos1

    mramos1 Active Member

    Joined:
    Sep 15, 2005
    Messages:
    2,403
    Likes:
    9
    Location:
    Boynton Beach, Florida USA
    I would bet RonH has that one. I have used that round one many times.. And the other was a vari-cap?

  10. kchriste

    kchriste New Member Forum Supporter

    Joined:
    Jul 23, 2006
    Messages:
    3,677
    Likes:
    47
    Location:
    Victoria BC, Canada

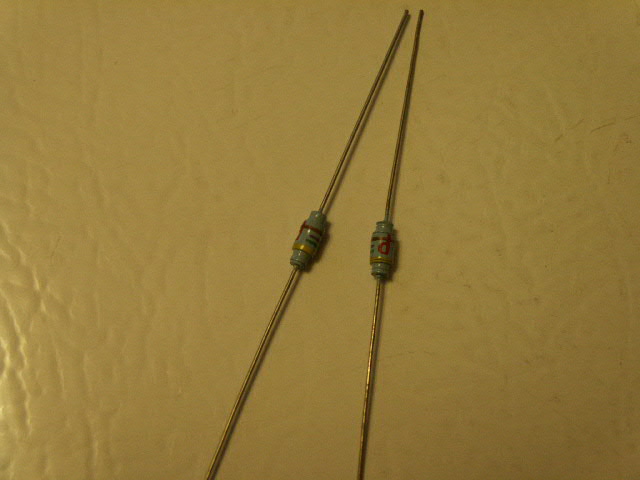

    Ok, what are these?
    A part number nets you extra points :D


    Attached Files:

  11. zevon8

    zevon8 New Member

    Joined:
    Apr 10, 2004
    Messages:
    917
    Likes:
    2
    Location:
    Toronto, Canada, eh
    PIN diode? I dunno.

  12. Hero999

    Hero999 Banned

    Joined:
    Apr 6, 2006
    Messages:
    14,902
    Likes:
    79
    Location:
    England
    Thay could be any two leaded device, resistors, capacitors, diodes, gunn diodes, zenners, tunnel diodes, constant current sources, diacs, thermistors etc.

    My guess is they are gas discharge tubes used for voltage suppression.

  13. zevon8

    zevon8 New Member

    Joined:
    Apr 10, 2004
    Messages:
    917
    Likes:
    2
    Location:
    Toronto, Canada, eh
    Not to hijack, just adding another,

    Here's my effort, from the one JimB posted earlier. Funnily enough, the plug is almost identical to the ones we used on mining battery packs and chargers for explosive atmospheres. Spring loaded terminals in sockets, circumference contacts for the high impedance intrinsically safe sensing that determines when to apply power after connecting.


    Attached Files:

  14. hjames

    hjames New Member

    Joined:
    Jun 7, 2006
    Messages:
    677
    Likes:
    6
    Location:
    Bezerkeley, USA
    Looks suspiciously like the thermal printhead in my label printer...

  15. kchriste

    kchriste New Member Forum Supporter

    Joined:
    Jul 23, 2006
    Messages:
    3,677
    Likes:
    47
    Location:
    Victoria BC, Canada
    They are diodes, 1N457s to be exact.

  16. zevon8

    zevon8 New Member

    Joined:
    Apr 10, 2004
    Messages:
    917
    Likes:
    2
    Location:
    Toronto, Canada, eh
    hjames, in one. Thermal print head. I need to rummage around the boxes at the back of the closet, LOL. Somebody have a go while I dig about........

  17. HiTech

    HiTech Well-Known Member

    Joined:
    Jun 28, 2006
    Messages:
    2,874
    Likes:
    30
    Location:
    Penna. USA
    "Funnily" .... must be a regional dialect thing!:rolleyes: Time to change the thread title to "Name the Slang".

  18. HiTech

    HiTech Well-Known Member

    Joined:
    Jun 28, 2006
    Messages:
    2,874
    Likes:
    30
    Location:
    Penna. USA
    This should be easy!


    Attached Files:

  19. mramos1

    mramos1 Active Member

    Joined:
    Sep 15, 2005
    Messages:
    2,403
    Likes:
    9
    Location:
    Boynton Beach, Florida USA
    Nija throwing star

  20. Dr.EM

    Dr.EM New Member

    Joined:
    Oct 27, 2004
    Messages:
    1,009
    Likes:
    1
    Location:
    UK
    :D Its a luxeon star type power LED, though it could be a batwing etc. Power LED anyhow.

  21. hjames

    hjames New Member

    Joined:
    Jun 7, 2006
    Messages:
    677
    Likes:
    6
    Location:
    Bezerkeley, USA
    More specifically I'd put some(a little anyway) money on it being a white LED, lambertian lens, maybe a "Luxeon III" - data sheet over at http://www.luxeon.com/pdfs/DS46.PDF, part number LXHL-LW3C

    James
