# Mystery components

Status
Not open for further replies.

#### vidar

##### New Member
Hi all.

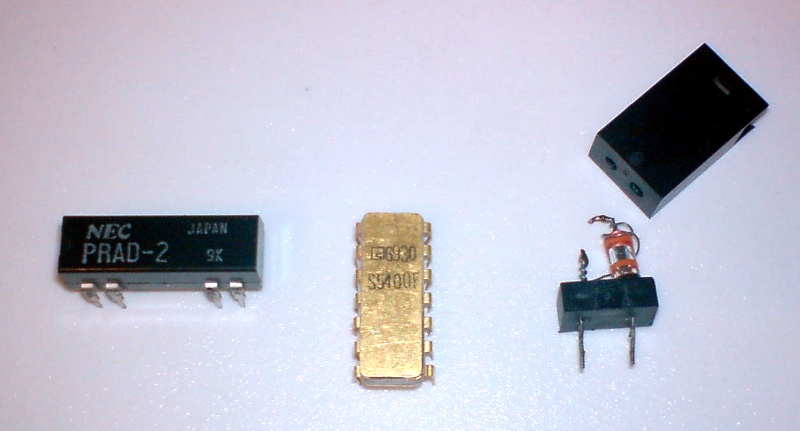

I'm quite new to the world of electronics, but when I showed interest my father gave me a bunch of old ICs and stuff he had collected in his days as a TV repairman. Among dozens of useful stuff I found a couple of tidbits that I haven't been able to identify. Picture (of admittedly inferior quality) attached. Can anyone offer some insight as to what these things are?

The leftmost one is a NEC "PRAD-2" chip with 8 strangely spaced legs.

The middle one is a golden IC marked with "S5400F" (I'm suspecting that this might be a quad NAND gate)

The rightmost one is a strange little thingy that came with a small plastic cap with two holes in it.

Any takers? I can dig out a better camera if anyone needs or would like a closer look.

Thanks.

#### Attachments

• 83.7 KB Views: 108

#### rmn_tech

##### Member
The NEC "chip" looks like a reed relay

The golden chip probably is as you surmised.

The last one looks to be a spark gap of some kind

#### vidar

##### New Member
Ah, the NEC is indeed a reed relay. Thanks.

While the last one sure does look like a spark gap of sorts, the somewhat flimsy construction suggests (to me, at least) that it's not. Its base and "cap" is made of pretty thin plastic, and I always envisioned spark gaps to be somewhat more sturdy-looking. Also, would a spark inside a tiny "box" be useful anything? (Measure the resistance of the air and detect the presence of gas? Generate ozone? I have no idea. )

#### Grossel

##### Well-Known Member
I also have some reed relays laying around. Somebody here knows the pinout?

#### vidar

##### New Member
Grossel: For what it's worth, mine was like this:
Code:
14  13     9  8
|            |
|------------|
|  [email protected]@@@-.  |
|  |      |  |
1  2      6  7
(Legs 9 and 13 were present but apparently not connected to anything.)

#### ericgibbs

##### Well-Known Member
I also have some reed relays laying around. Somebody here knows the pinout?

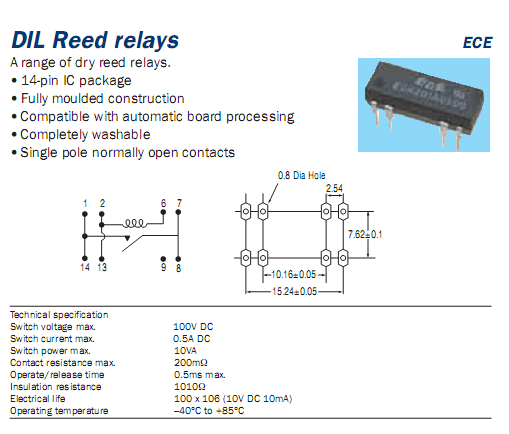

This is one type.

#### Attachments

• 25.2 KB Views: 99

#### kpatz

##### New Member
The "spark gap" could be a gas discharge transient/overvoltage protector of some sort.
