Mysterious compressor device

Status
Not open for further replies.

dougy83

Well-Known Member
Most Helpful Member
Hi,

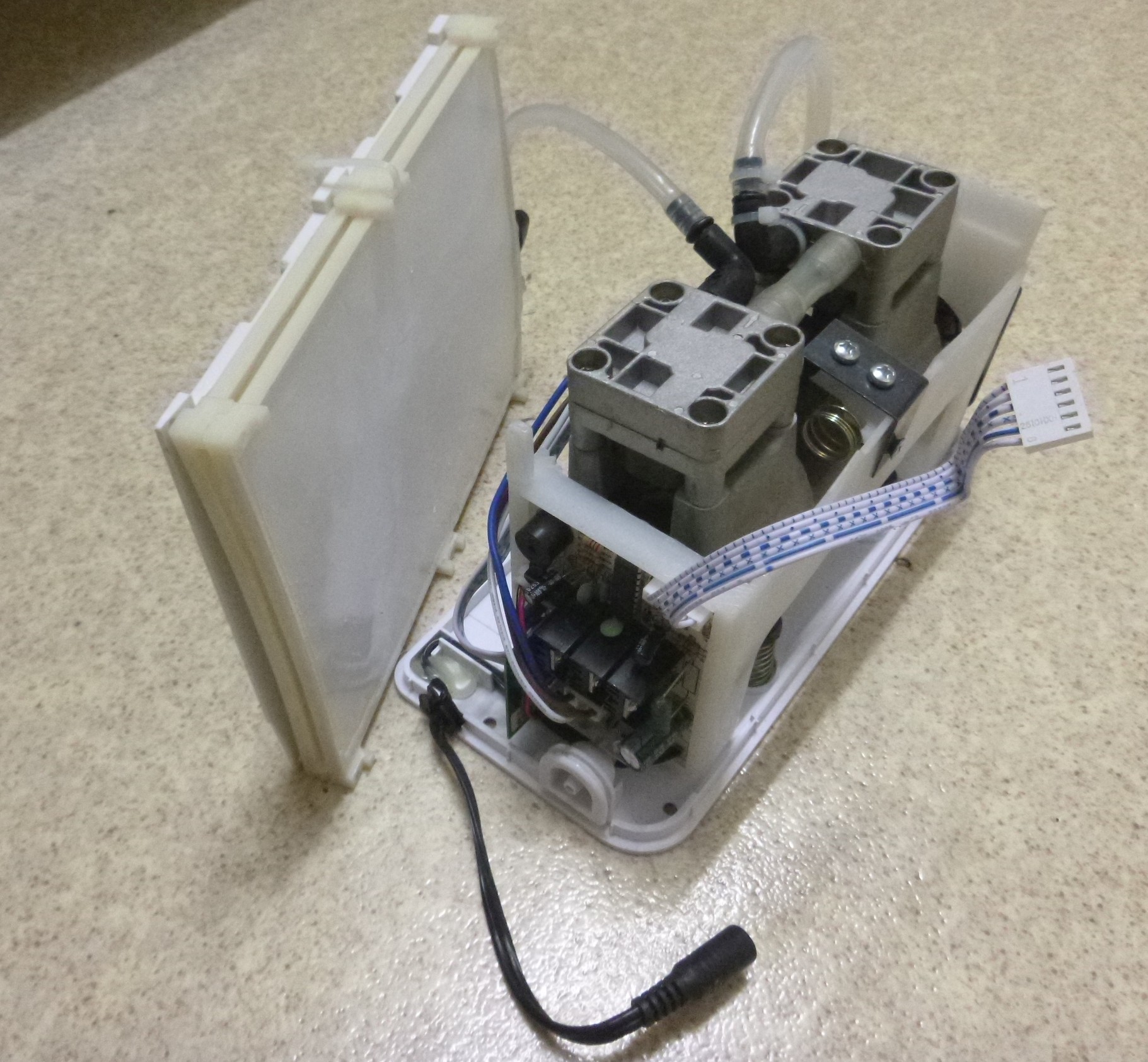

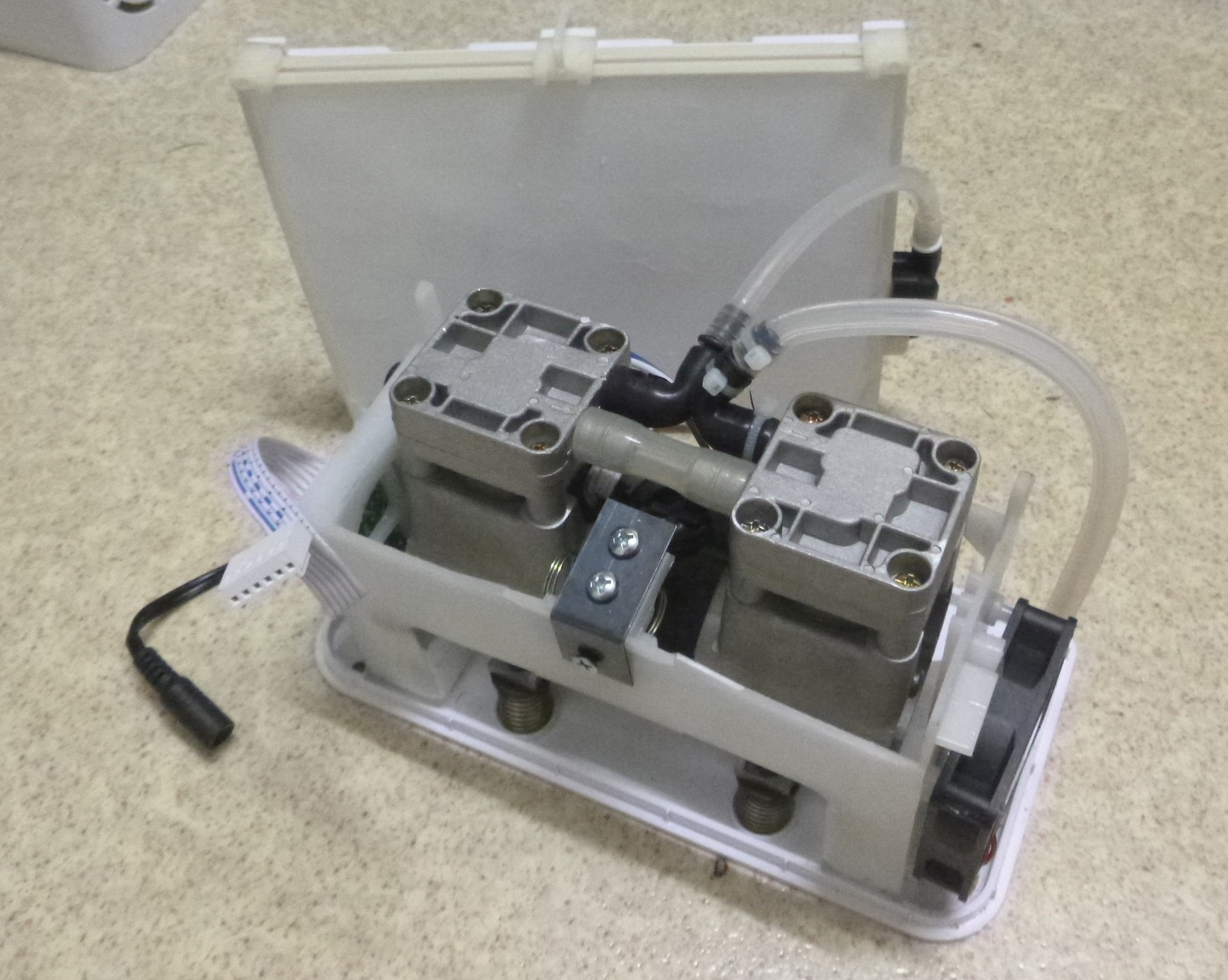

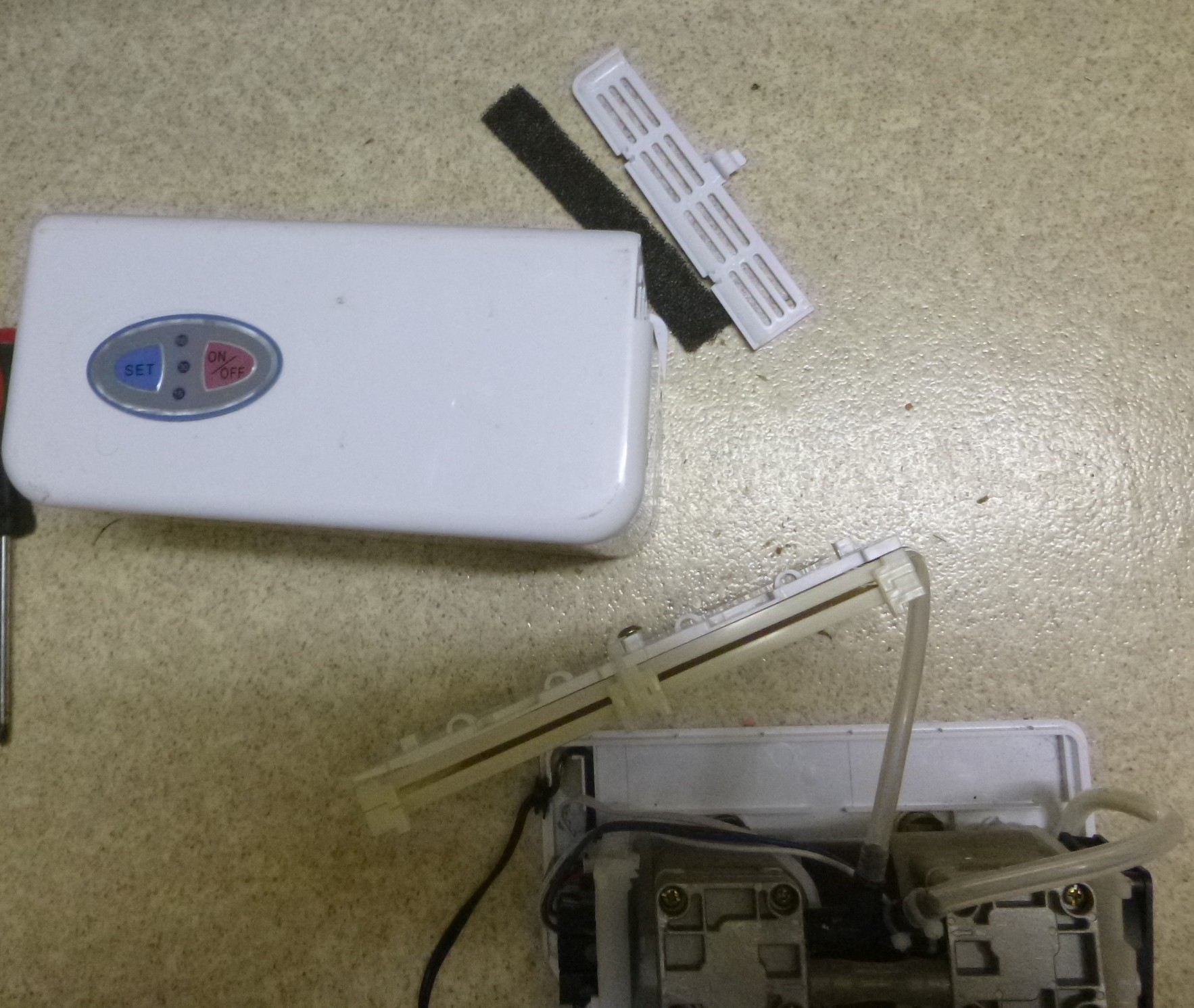

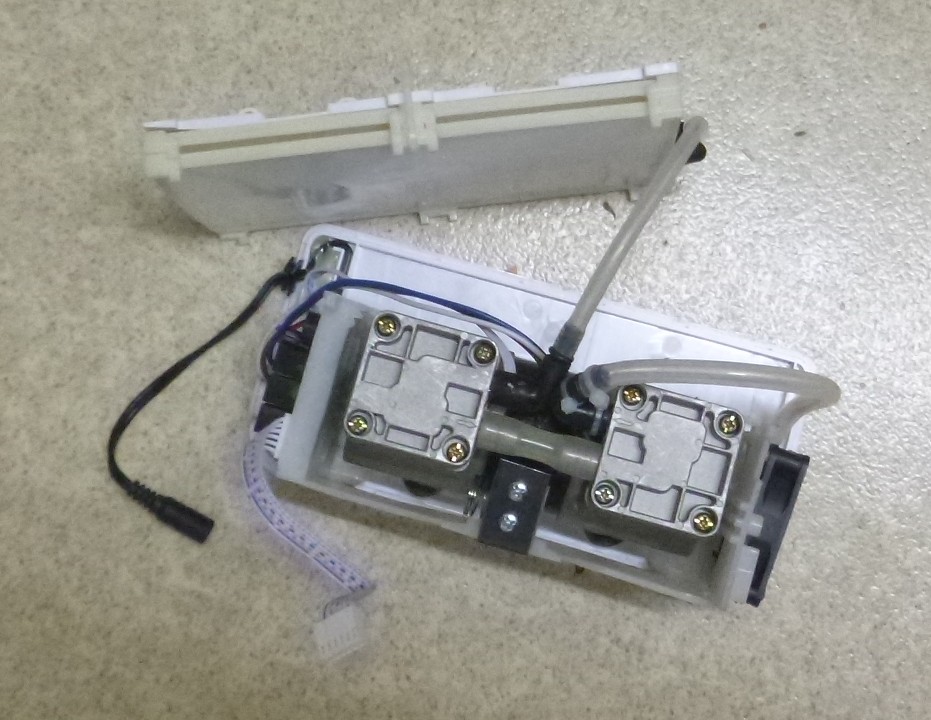

I found this mostly unmarked white plastic device, containing a dual-stage vacuum pump that appears to draw air through some sheets of waxy plastic/paper sheets. There is a coarse foam filter near the sheets, a cooling fan blowing on the pump, a control PCB with a few power devices and a pic16f54, and a small user interface with "Set and "On/Off" buttons, and three LEDs. The outlet is a ~4mm tube.

Any ideas what this is?

Cheers!


Attachments

  • P1010219.jpg
    511.3 KB · Views: 124
  • P1010216.jpg
    588.9 KB · Views: 118
  • P1010217.jpg
    437 KB · Views: 121
  • P1010218.jpg
    178.1 KB · Views: 121
Any manufacturer/model on the bottom of the case?

Ken

No markings on the outside, other than the user interface. Inside, there are some codes on the PCB, e.g. DZYJ, and some component IDs. Pretty blank, unfortunately.

The hose fitting on the end (picture 2) looks like one for a CPAP pump, or any other medical air patient hose.

Ken

Just a coarse air filter???
There's a replaceable coarse foam pad on the outside of the device, presumably to catch large dust and lint. I assume that the waxy sheets that the compressor's sucking through provide finer filtration. It probably is just a compressor with air filter, like you said.
The hose fitting on the end (picture 2) looks like one for a CPAP pump, or any other medical air patient hose.
The hose is tiny (like 4mm diameter), so I don't think it's a CPAP, but maybe a medical device; perhaps it's for a nebulizer or similar.

Well, that's kinda boring. The pump has a 3 phase motor with feedback, which is slightly more interesting though.
