how to use pspice?

cinderella1 · Aug 7, 2011

i have this circuit i need to stimulate.
Vs=10(sin (6000pi*t)mV
how to input this into pspice???

ericgibbs · Aug 7, 2011

cinderella1 said:
i have this circuit i need to stimulate.
Vs=10(sin (6000pi*t)mV
how to input this into pspice???

hi,
Look at this.

cinderella1 · Aug 7, 2011

hi there, thanks for reply. By the way, can u show me the graph for this circuit? same voltage supply. using common emitter amplifier circuit. i will attach the pic later. my computer is kinda lag now

ericgibbs · Aug 7, 2011

cinderella1 said:
hi there, thanks for reply. By the way, can u show me the graph for this circuit? same voltage supply. using common emitter amplifier circuit. i will attach the pic later. my computer is kinda lag now

hi,
Post the circuit and asc file when you can, I will run it in LTS.

cinderella1 · Aug 7, 2011

ericgibbs said:
hi,
Post the circuit and asc file when you can, I will run it in LTS.

yeah, i manage to take picture of the circuit. i still cant open my Pspice . i attached it at my post, check it out

cinderella1 · Aug 7, 2011

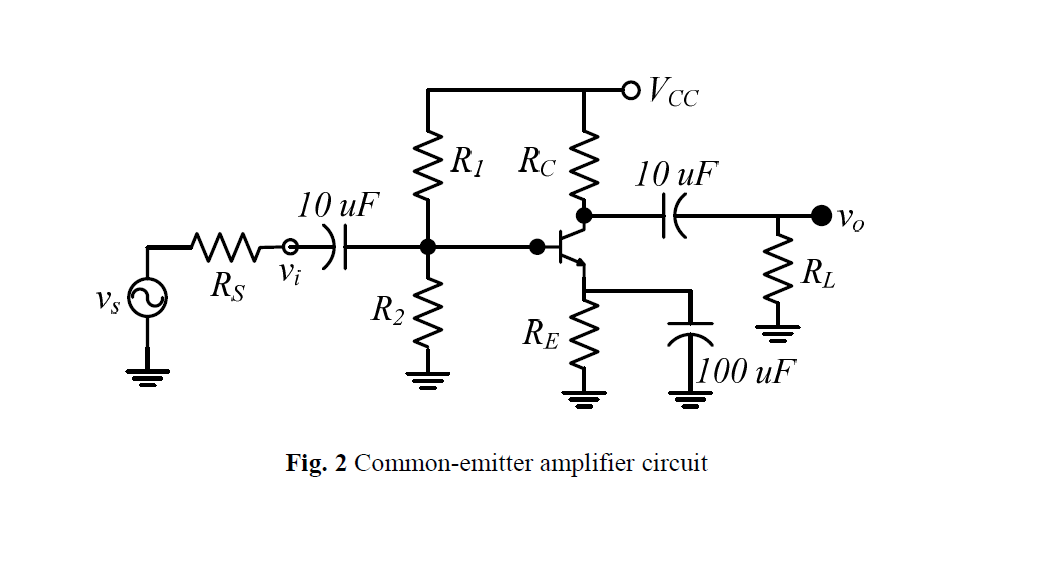

this is de picture of the circuit.
Vcc=15V, Rs=Re=Rl= 1k ohm,
R1=16k ohm, R2= 7k ohm, Rc= 2k ohm
use Pspice using 2N2222 transistor by assuming Vs=10 sin (6000pi*t)mV

ericgibbs · Aug 7, 2011

hi,
I will run it in LTS and when I see your LTS asc file I will check it for you.

Is this a homework question.???

cinderella1 · Aug 7, 2011

no..just wanna learn how to use Pspice..its my first time. later we have test on pspice

ericgibbs · Aug 7, 2011

cinderella1 said:
no..just wanna learn how to use Pspice..its my first time. later we have test on pspice

hi,

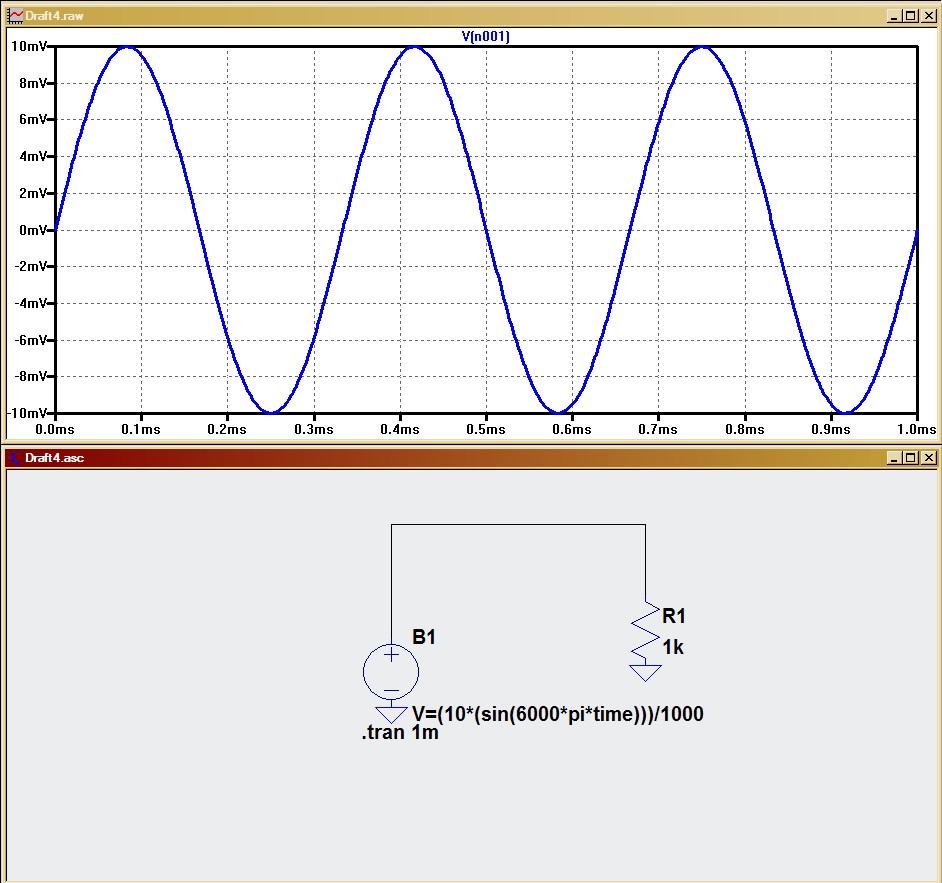

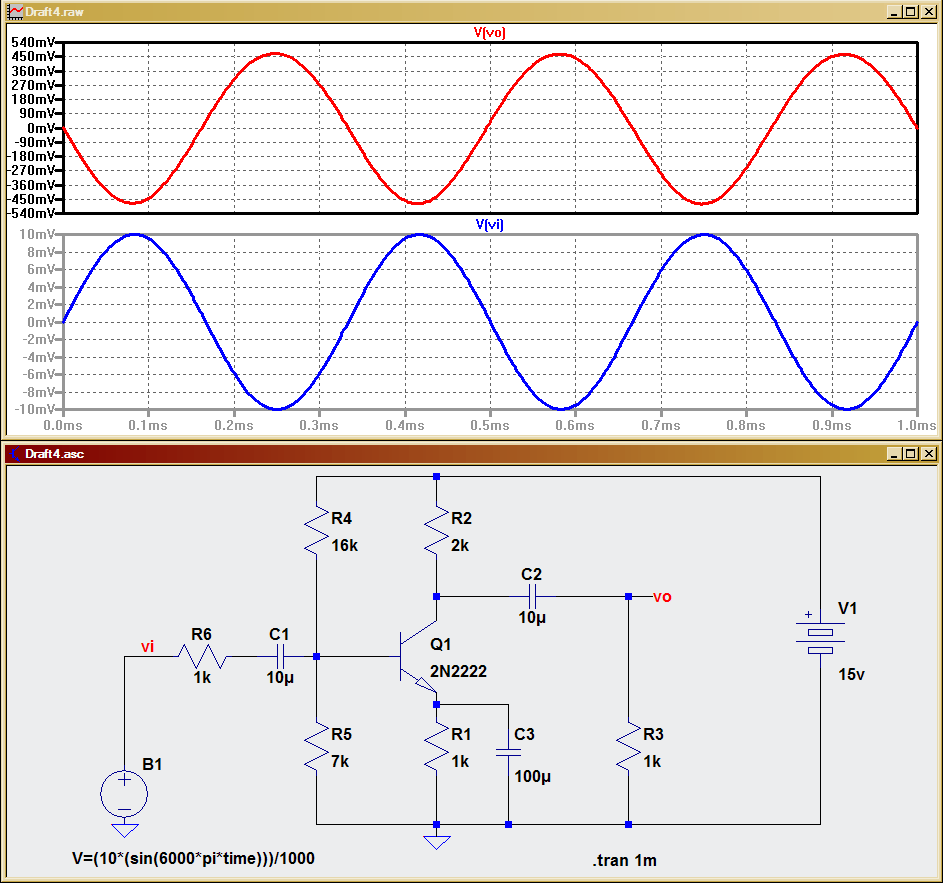

I have drawn up that common emitter circuit and it works OK in LTS using that equation.

Have you managed to open your LTspice program yet.???

cinderella1 · Aug 7, 2011

cinderella1 said:
no..just wanna learn how to use Pspice..its my first time. later we have test on pspice

refer to this file

cinderella1 · Aug 7, 2011

wah..can i see ur graph??? btw, i use PSPICE not LtS

ericgibbs · Aug 7, 2011

cinderella1 said:
refer to this file

Sorry I am unable to open that *.sch file with LTSpice

cinderella1 · Aug 7, 2011

ok, how do u input for Vsin? wat value of phase, amplitude, freq?

cinderella1 · Aug 7, 2011

i mean when u want to input the data for Voltage supply, what data do u input?/?? pls refer this attachement

ericgibbs · Aug 7, 2011

cinderella1 said:
i mean when u want to input the data for Voltage supply, what data do u input?/?? pls refer this attachement

I am sorry I dont know that version of PSpice.???

crutschow · Aug 7, 2011

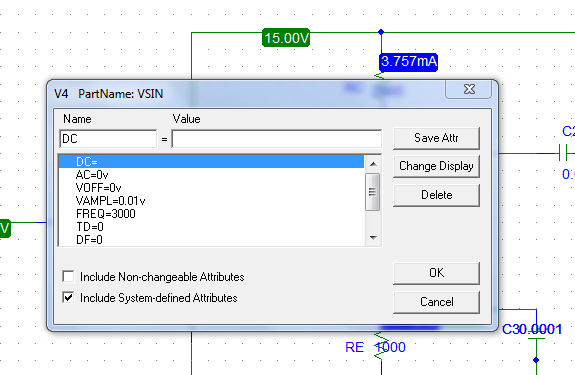

You should be able to click on the parameter and enter the parameter value in the "Value" box.

The VAMPL value should be 10mV, if PSPICE defines a peak value. If it specifies RMS then the value would be 0.707 X 10mV.

The FREQ should be 6000pi/2pi or 3000Hz.
