Help me. A LCD display module

Status
Not open for further replies.

liucw99

New Member

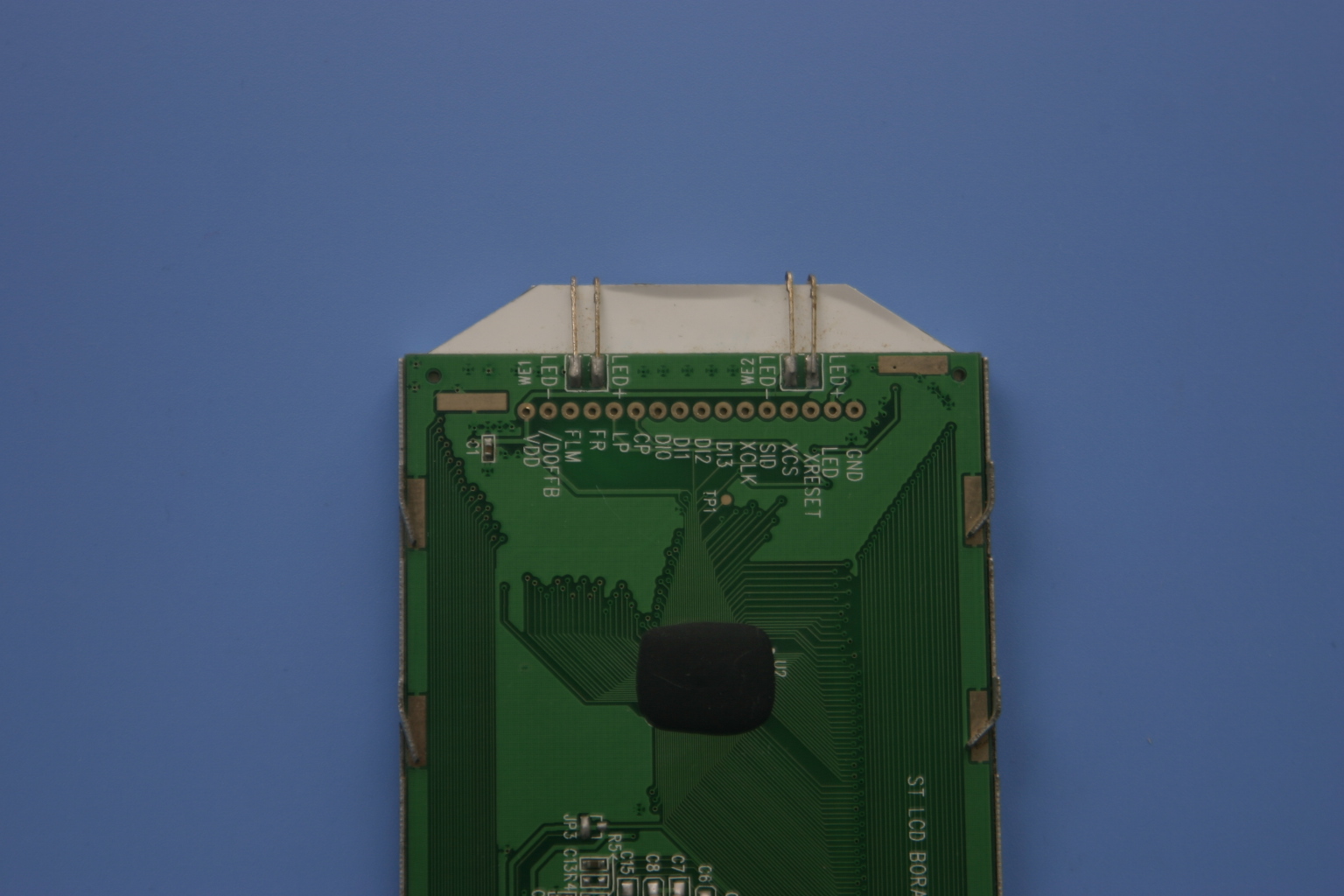

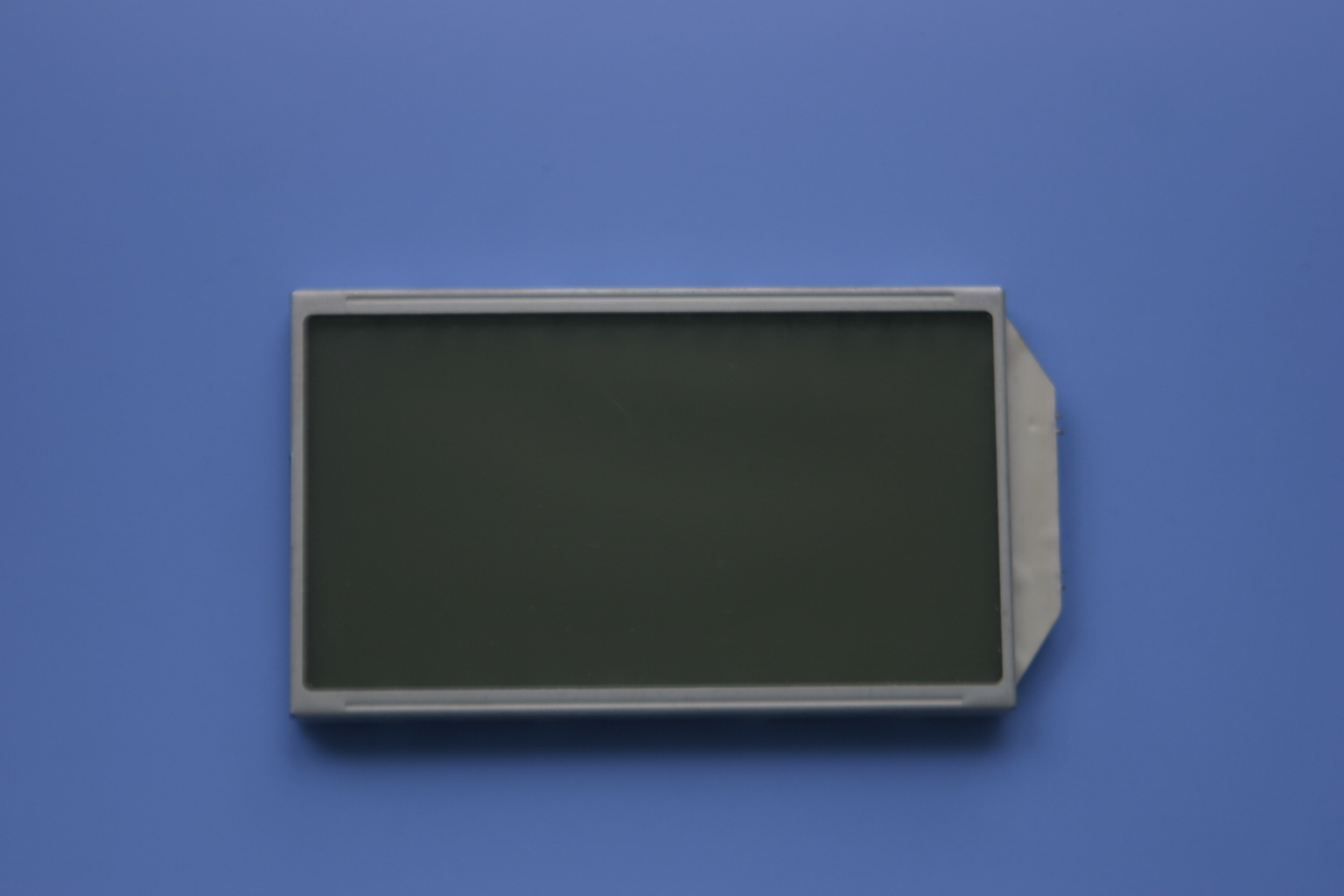

A friend give me the LCD module without any documents.
I want to use the module in my MCU project.
Who can help me? Tell me which model the module may be or the type of interface.

Thanks a lot.


Attachments

Chippie

Member
I had a look on Google...Its a matter of deciding what type of lcd display it is...Some of the connections I dont recognise, but it operates in 4 bit mode, D10-13 are the data pins..Vdd is supply with GND and it is backlit...

Thats all I can tell..Maybe someone else has a bit more info?


liucw99

New Member
hi Chippie, thank you very much.

By the way, the module dimension is 11cm X 6cm. It is not a color display.
