F Farazkhan New Member Jun 10, 2006 #1 hi m new here . i need information about FZL 141 siemens IC , datasheet , pinout or block diagarm or internal diagram etc . plz help me
hi m new here . i need information about FZL 141 siemens IC , datasheet , pinout or block diagarm or internal diagram etc . plz help me
hotwaterwizard Active Member Jun 23, 2006 #2 Here is what i have So Far! FZL141 short-cir-proof drivers TA FZL141 SIEMENS Part Number = FZL141 Manufacturer Name = Infineon Technologies Description = Single Power Driver Outp Transis. Ion Max. = 500m V(OL)Max.(V)Lo Level Out.Volt. = 14 @Iol (A) = 500m VOH Max. = 20 V(IL) Max.(V)Lo Level In.Volt. = 6.0 V(IH) Min.(V)Hi Level In.Volt. = 8.0 Nom. Supp (V) = 15 P(D) Max.(W) Power Dissipation = 150m Status = Discontinued Package = DIP Pins = 8 Military = N Technology = DTL DC84 50/TUBE/DIL8
Here is what i have So Far! FZL141 short-cir-proof drivers TA FZL141 SIEMENS Part Number = FZL141 Manufacturer Name = Infineon Technologies Description = Single Power Driver Outp Transis. Ion Max. = 500m V(OL)Max.(V)Lo Level Out.Volt. = 14 @Iol (A) = 500m VOH Max. = 20 V(IL) Max.(V)Lo Level In.Volt. = 6.0 V(IH) Min.(V)Hi Level In.Volt. = 8.0 Nom. Supp (V) = 15 P(D) Max.(W) Power Dissipation = 150m Status = Discontinued Package = DIP Pins = 8 Military = N Technology = DTL DC84 50/TUBE/DIL8
hotwaterwizard Active Member Jun 27, 2006 #3 A very nige guy sent me some info so I made a small PDF file for you. Attachments FZL141_FZL145.pdf 74.6 KB · Views: 864

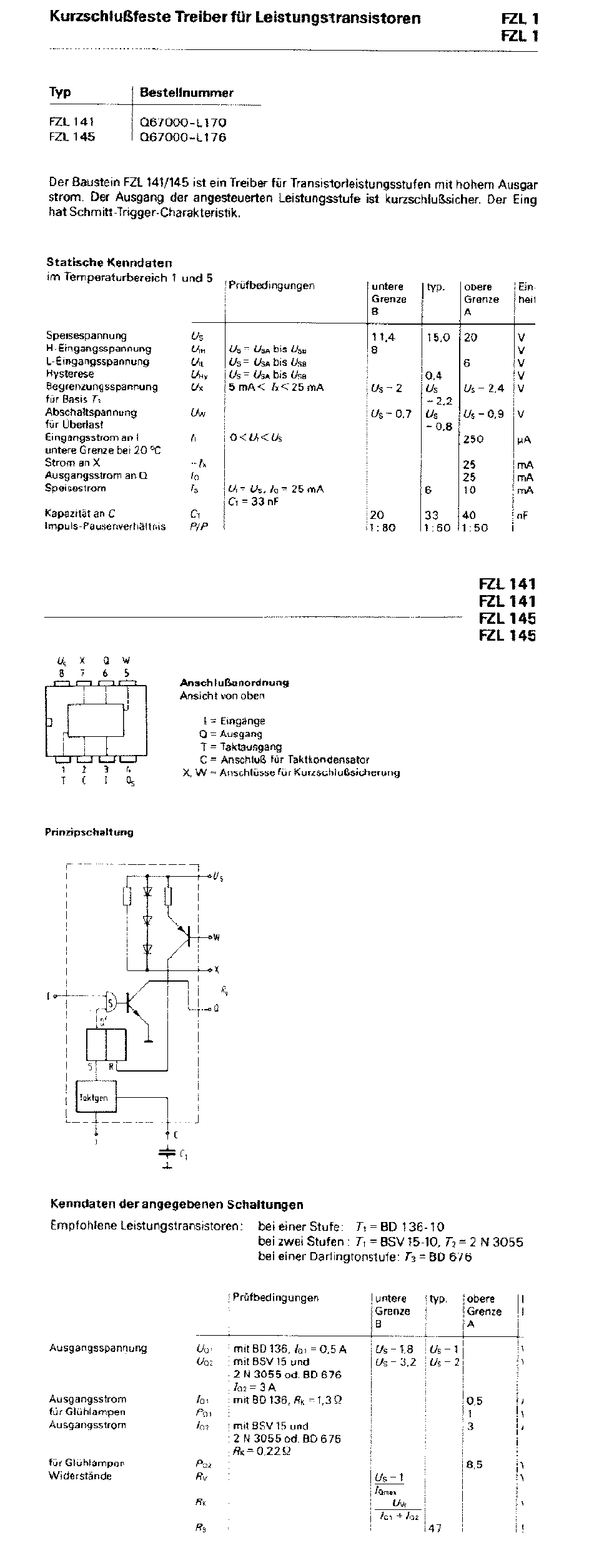

hotwaterwizard Active Member Jun 27, 2006 #4 Here is the GIF Attachments FZL141_FZL145.gif 40 KB · Views: 1,316
