datasheet :mc 2830

Status
Not open for further replies.

hotwaterwizard

Active Member
Here you go.


Attachments

  • MC2830.pdf
    26.8 KB · Views: 760

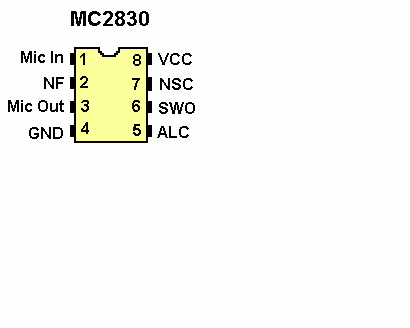

  • MC2830 Pinout.gif
    MC2830 Pinout.gif
    2.9 KB · Views: 644

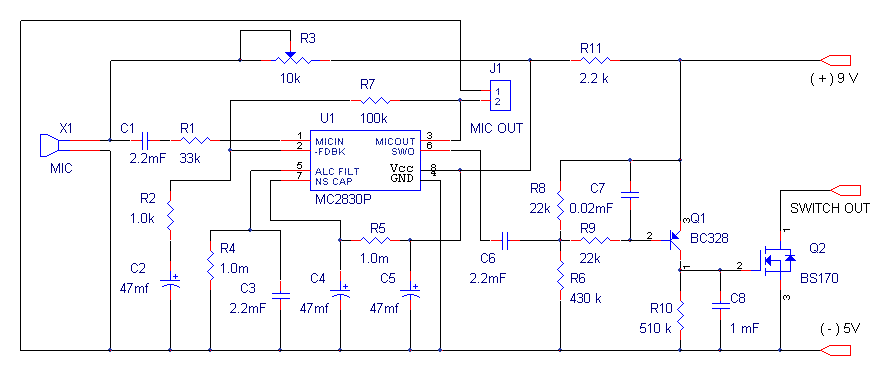

  • MC2830 Circuit.gif
    MC2830 Circuit.gif
    9.5 KB · Views: 912

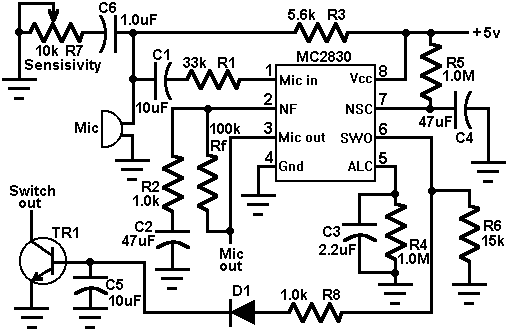

  • MC2830 Circuit 2.gif
    MC2830 Circuit 2.gif
    8.1 KB · Views: 1,337

chikedef

New Member
thanks, but l thought that was just the whole circuit for the voice activation switch of which i want to know whats inside the mc 2830 that is the datasheet of the chip without the circuit. in addition for the switch, l was contempleting on using a comparator which act as the Vcc to my aoscillator once someone speaks into the microphone. is that feasible?


hotwaterwizard

Active Member
I have a few Vox circuits.


Attachments

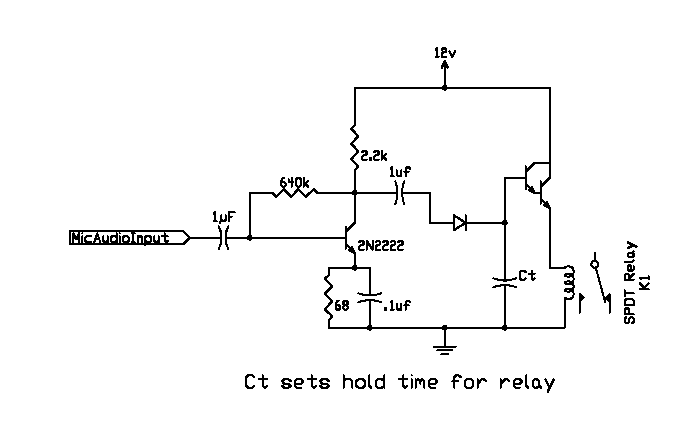

  • vox3.gif
    7.8 KB · Views: 716

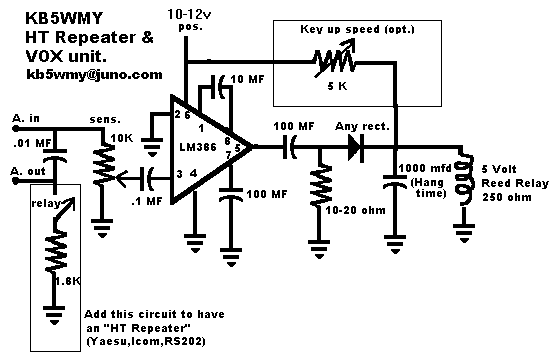

  • VOX2.gif
    4.1 KB · Views: 564

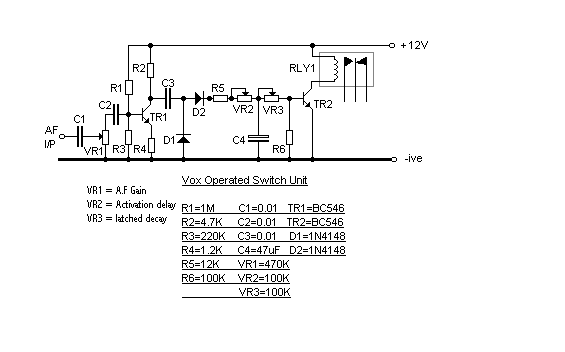

  • vox.gif
    5 KB · Views: 862

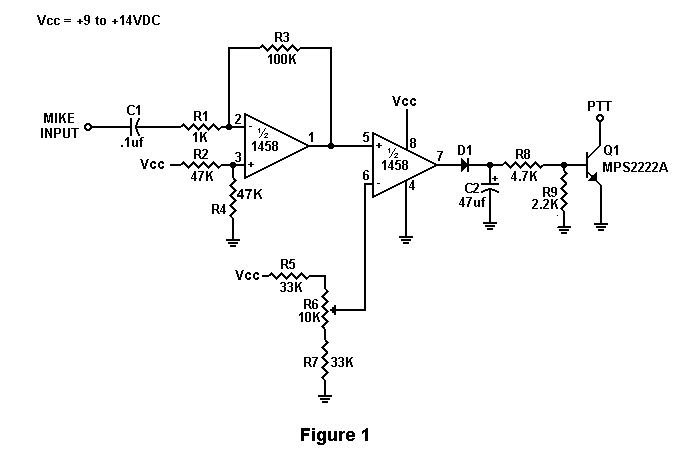

  • Basic Vox.gif
    Basic Vox.gif
    5.8 KB · Views: 668
  • basicvox.pdf
    23.5 KB · Views: 536
