crystal oscillator

mohammed elzaq

New Member

• Jul 22, 2005

• #1

may i got the full draw of crystal oscillator?



mohammed elzaq

New Member

• Jul 22, 2005

• #2

i mean the schemitic



J

Jay.slovak

Active Member

• Jul 22, 2005

• #3

Look for 4060 IC, it's a crystal driver and divider. You have to connect crystal to it, and it produces different clocks (by dividing crystal frequency).



danielsmusic

New Member

• Jul 25, 2005

• #4

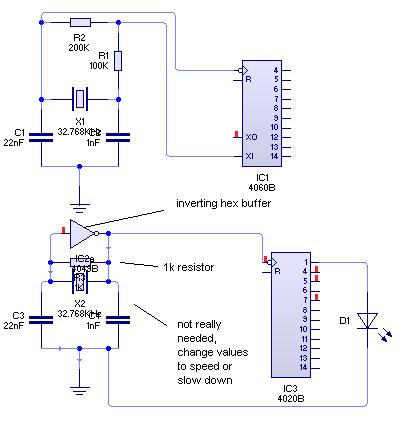

iv tested these i drawn them as well



Attachments

• crystal_ocilater.jpg

  23.4 KB · Views: 340
