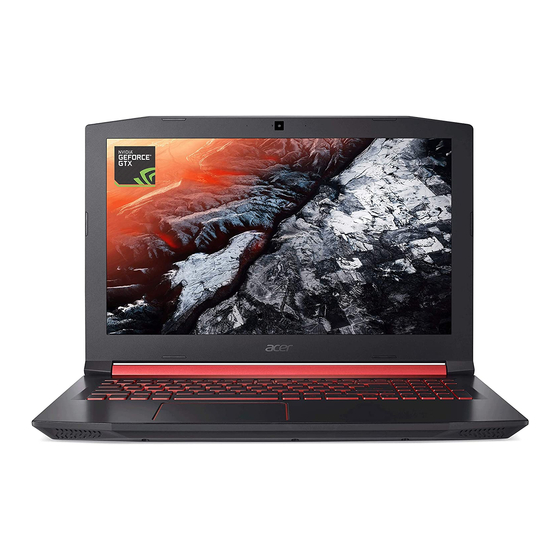

Acer Nitro 5

Status
Not open for further replies.

Travisa10

New Member
I am working on repairing an Acer Nitro 5 and found a few blown out capacitors and a missing I/C. Wondering if anyone can help me find the part numbers I need. I tried downloading board views but was unsuccessful. The board is LA-H501P


Attachments

  • 06A54A18-4ECF-47E7-90AD-5E72874DEDDF.jpeg
    3.2 MB · Views: 359
  • DA33B0A7-2A68-46FA-BE77-637FC50C388E.jpeg
    1.1 MB · Views: 317
  • F9937643-D336-4AA3-B37F-18FC67E25B86.jpeg
    1.4 MB · Views: 361
Quite a few places are selling schematics for a few dollars/euros, but I can't find any.
There is a service manual for that series here, but no schematics..
It does have a some level of faultfinding info.


The "Missing IC" looks to be an unused connector location. That's easily verified by finding good photos of boards being sold online, eg. here:
The same location is unused.

It is not at all unusual for boards to have locations for components that are not used in a particular version of a product.

Sorry I can't help with the capacitors, but I'd suggest also searching board photos to determine if any are missing, or just spare positions.

For-Acer-Nitro-5-AN515-54-AN715-51-Laptop-Motherboard-CPU-I5-9300H-SRF6X-GTX-1650.jpg_Q90.jpg_.webp

Here are schematics and boardview files for LA-H501P, so you can look for components.


Attachments

  • EH5VF LA-H501P (REV 1.0) (BDV).BRD
    567.1 KB · Views: 331
  • EH5VF LS-H501P (REV 1.0) (HS BD).BRD
    2.9 KB · Views: 270
  • EH5VF LS-H501P (REV 1.0) (IO BD).BRD
    9.8 KB · Views: 264
  • Nitro AN515-54 EH50F,EH51F,EH5VF,EH70F) Compal LA-H501P Rev.1A.pdf
    1.9 MB · Views: 1,398
I have opened the boardview and these are the components:


PC504 2200P_0402_50V7K - SMD 0402 capacitor 2200pF 50V
PC503 10U_0603_25V6M - SMD 0603 capacitor 10uF 25V
PC502 10U_0603_25V6M - SMD 0603 capacitor 10uF 25V
PL511 FBMA-L11-201209-800LMA50T - Passive Filter
