555 with thyrister

Status
Not open for further replies.
I

in06khattab

New Member
Hi,

I have a problem because a switch is working as a reset switch for the solenoid as well as a tension release mechanism for the pulley. The thyristor is also triggering the 555 chip (monostable). Do you guys have a solution, please do not tell me to have 2 switches for the tension release as well as the reset for the solenoid circuit.

PLEASE SEE MY ATTACHED PICTURE AND MY VIDEO ON YOUTUBE EXPLAINING MY PROBLEM FURTHER!!

YouTube - Please help me with my circuit

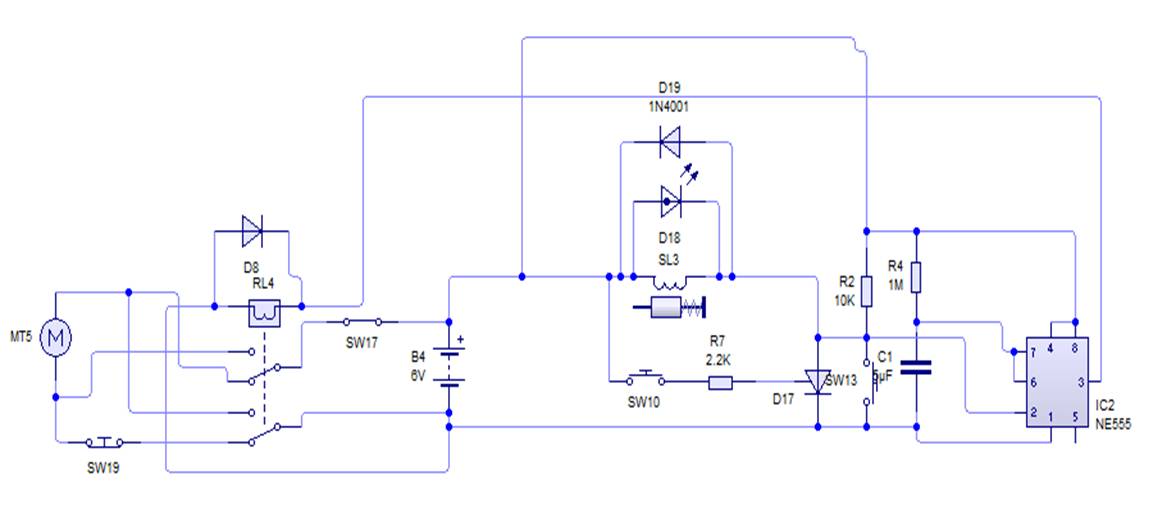

Here is the circuit diagram: View attachment 48546



Ahmad


Attachments

  • rat circuit 3.jpg
    38.4 KB · Views: 359
Last edited by a moderator:

hi,
After the intro music, there is no sound.!!

Why dont you explain in text what the circuit is not doing what you are expecting.??

Last edited:
Viewing captions in youtube

Hi,

Sorry for the misunderstanding, There are captions in this video.

Please see this picture to see how to do this and understand my problem.



Ahmad
