Integrating Pspice with matlab (how to import data)

Discussion in 'Circuit Simulation & PCB Design' started by troop123pack, Mar 25, 2017.

  1. troop123pack

    troop123pack New Member

    Joined:
    Mar 25, 2017
    Messages:
    2
    Likes:
    0
    Hello,

    I have written a Pspice program, and simulated transfer and output characteristics. I have it saved as a SPICE DECK EXAMPLE.dat file.

    I am supposed to try to load the data into matlab using command load '.dat' -ascii;

    Please how can I transfer that data into matlab so MATLAB recognises it so I can load the data into MATLAB.

    I have tried to import it into matlab using import data then I wrote the command in matlab but it says Error using load. Unable to read file 'SPICE DECK EXAMPLE.dat': no such file or directory.

    In summary, What's the best process of transferring simulated data from Pspice into matlab?


    George

  2. MikeMl

    MikeMl Well-Known Member Most Helpful Member

    Joined:
    Mar 17, 2009
    Messages:
    11,041
    Likes:
    541
    Location:
    AZ 86334
    Are you trying to import the Spice circuit description, or the results of a Spice simulation (voltages at nodes vs time). I suspect Matlab could understand the latter, but wouldn't have a clue as what to do with the former...

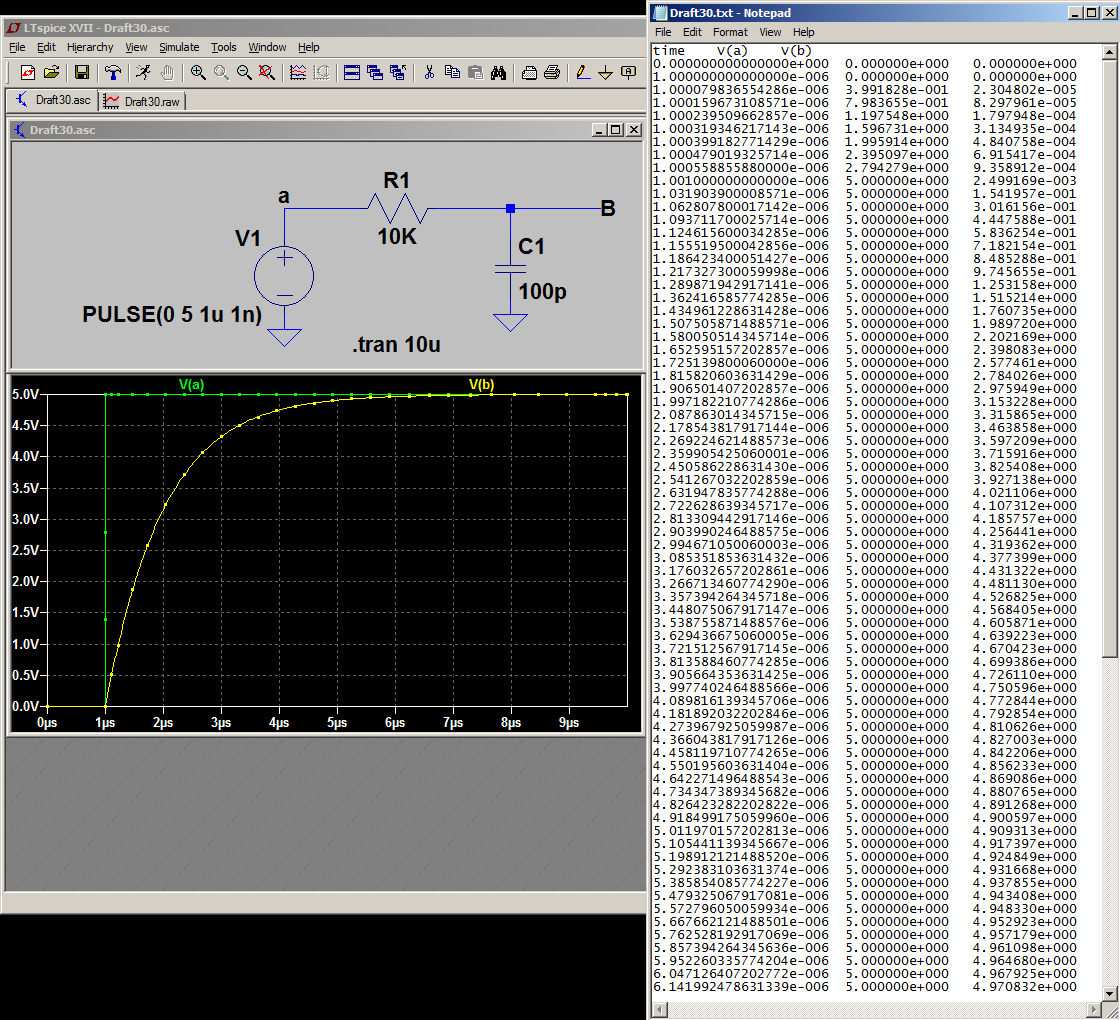

    Here is how to do it in LTSpice.

    I created a trivial circuit and simulated it.
    I plotted the voltage vs time at node a V(a) and node b V(b).
    I asked LTSpice to export V(a) and V(b) vs time into a text file.
    I show the contents of the text file.

    I'll bet that MatLab could deal with the contents of the text file (I'm not a Matlab user).


    Last edited: Mar 25, 2017
  3. troop123pack

    troop123pack New Member

    Joined:
    Mar 25, 2017
    Messages:
    2
    Likes:
    0
    I am trying to import the results of a Spice simulation into Matlab, I know how to get the values etc from Pspice but how do I load it up on MATLAB using the load or textread command?
