Hello I am having difficulty adding this subckt model.

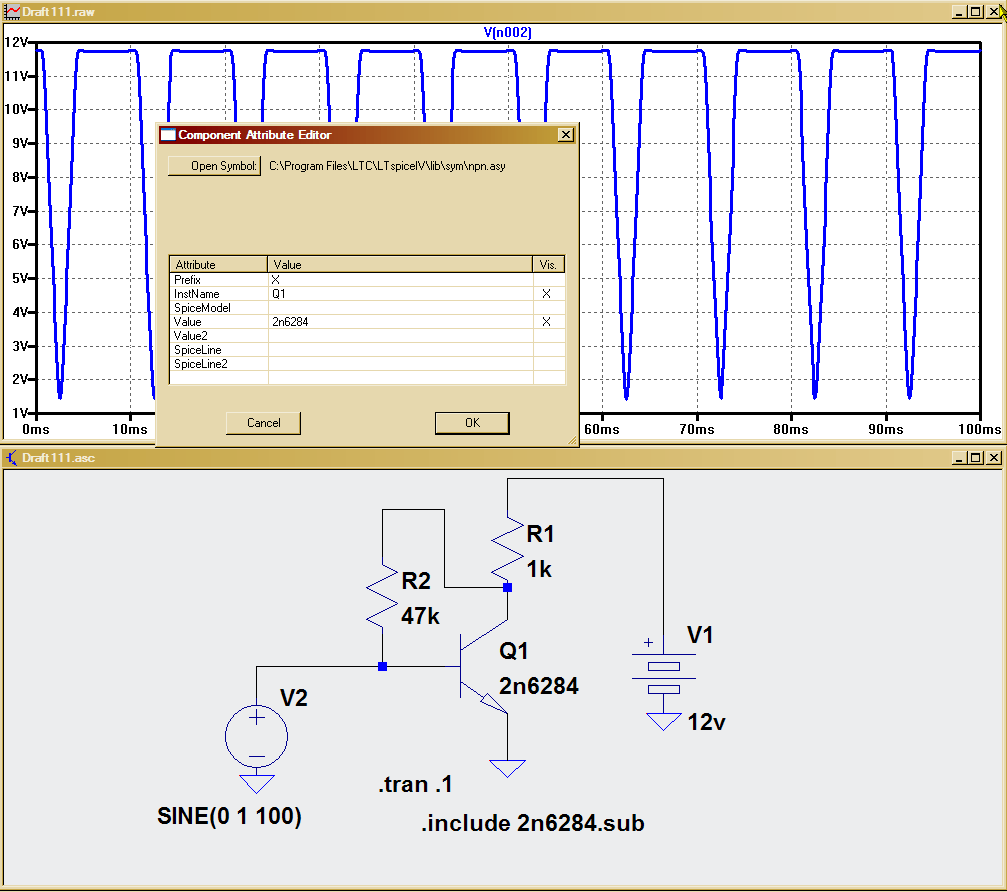

I have tried the steps to include via spice directive (.inc 2n6284.txt) which does not complain, but when I try to CTRL-rgt click an NPN symbol and paste the '2n6284' name in the 'value' line and then simulate it fails with a 'Can't find definiton' error.
The txt file is in the same folder as the asc circuit. I have successfully added a BAT 54 diode and LM324 opamp model with no probs. See here:
http://www.simonbramble.co.uk/lt_spice/ltspice_lt_spice_tutorial_4.htm
**************************************
* Model Generated by MODPEX *
*Copyright(c) Symmetry Design Systems*
* All Rights Reserved *
* UNPUBLISHED LICENSED SOFTWARE *
* Contains Proprietary Information *
* Which is The Property of *
* SYMMETRY OR ITS LICENSORS *
* Modeling services provided by *
* Interface Technologies www.i-t.com *
**************************************
.SUBCKT 2n6284 1 2 3
* Model generated on Jan 24, 2004
* Model format: SPICE3
* Darlington macro model
* External node designations
* Node 1 -> Collect
* Node 2 -> Base
* Node 3 -> Emitter
Q1 1 2 4 qmodel
Q2 1 4 3 q1model area=10.5246
D1 3 1 dmodel
R1 2 4 8000
R2 4 3 50
* Default values used in dmodel
* EG=1.11 TT=0 BV=infinite
.MODEL dmodel d
+IS=1e-12 RS=10.8089 N=1.00809 XTI=3.00809
+CJO=0 VJ=0.75 M=0.33 FC=0.5
.MODEL qmodel npn
+IS=1.73583e-11 BF=831.056 NF=1.05532 VAF=957.147
+IKF=0.101183 ISE=1.65383e-10 NE=1.59909 BR=2.763
+NR=1.03428 VAR=4.18534 IKR=0.0674174 ISC=1.00007e-13
+NC=2.00765 RB=22.2759 IRB=0.208089 RBM=22.2759
+RE=0.0002 RC=0.001 XTB=2.12676 XTI=1.82449 EG=1.05
+CJE=2.62709e-10 VJE=0.95 MJE=0.23 TF=1e-09
+XTF=1 VTF=10 ITF=0.01 CJC=3.59851e-10
+VJC=0.845279 MJC=0.23 XCJC=0.9 FC=0.5
+TR=1e-07 PTF=0 KF=0 AF=1
.MODEL q1model npn
+IS=1.73583e-11 BF=831.056 NF=1.05532 VAF=957.147
+IKF=0.101183 ISE=1.65383e-10 NE=1.59909 BR=2.763
+NR=1.03428 VAR=4.18534 IKR=0.0674174 ISC=1.00007e-13
+NC=2.00765 RB=22.2759 IRB=0.208089 RBM=22.2759
+RE=0.0002 RC=0.001 XTB=2.12676 XTI=1.82449 EG=1.05
+CJE=2.62709e-10 VJE=0.95 MJE=0.23 TF=1e-09
+XTF=1 VTF=10 ITF=0.01 CJC=0
+VJC=0.845279 MJC=0.23 XCJC=0.9 FC=0.5
+TR=1e-07 PTF=0 KF=0 AF=1
.ENDS
I have tried the steps to include via spice directive (.inc 2n6284.txt) which does not complain, but when I try to CTRL-rgt click an NPN symbol and paste the '2n6284' name in the 'value' line and then simulate it fails with a 'Can't find definiton' error.
The txt file is in the same folder as the asc circuit. I have successfully added a BAT 54 diode and LM324 opamp model with no probs. See here:
http://www.simonbramble.co.uk/lt_spice/ltspice_lt_spice_tutorial_4.htm
