TTL Schottky family turn-off delay time reduction

Status
Not open for further replies.

amerion

New Member
Hi to all;

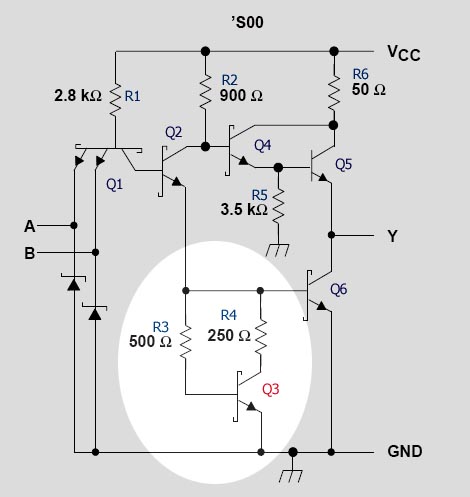

Dose anybody know detailed description of the 74S00 internal circuit?
I would like to know, how R3-R4-Q3 reduce turn-off delay time of Q6.
anybody can explain it?

Thanks in advance.
Amerion


Attachments

  • ttl-sf.jpg
    38.7 KB · Views: 441
