super snooper circuit reqest

S

steven

New Member

• Mar 17, 2006

• #21

thankyou nigel i hope you can work this out ok as the info here is all thats on the net and not a decent circuit for it



B

bbarney

New Member

• Mar 17, 2006

• #22

look at the schematic for the other snooper i sent and see if you can find an error and post the schematic you drew,the picture is right on the pcb



S

steven

New Member

• Mar 17, 2006

• #23

bbarney i have it on my pc ill look at it more after i biuld it on bread board as soon as i get more parts , its after 1 in the morning here got to go sleep goodnight bbarney



B

bbarney

New Member

• Mar 17, 2006

• #24

we want a picture of how you laid out the above circuit steven



Nigel Goodwin

Super Moderator

Most Helpful Member

• Mar 17, 2006

• #25

All these circuits are just crude little amplifiers, there should be no problem getting them working. As with anything, if it doesn't work you need to fault find. The Ramsey kit is just an LM380 with a single transistor preamp in front - dead easy to fault find!.



S

steven

New Member

• Mar 17, 2006

• #26

sooper snooper circuit reqest

bbarney i dismantled the bread board version but i do have the drwing i did from the info on the site i went by that , the transister was ok i tested that and all the resisters and capacitors i used are brand new to and the ic to ill put the circuit i went by in



S

steven

New Member

• Mar 17, 2006

• #27

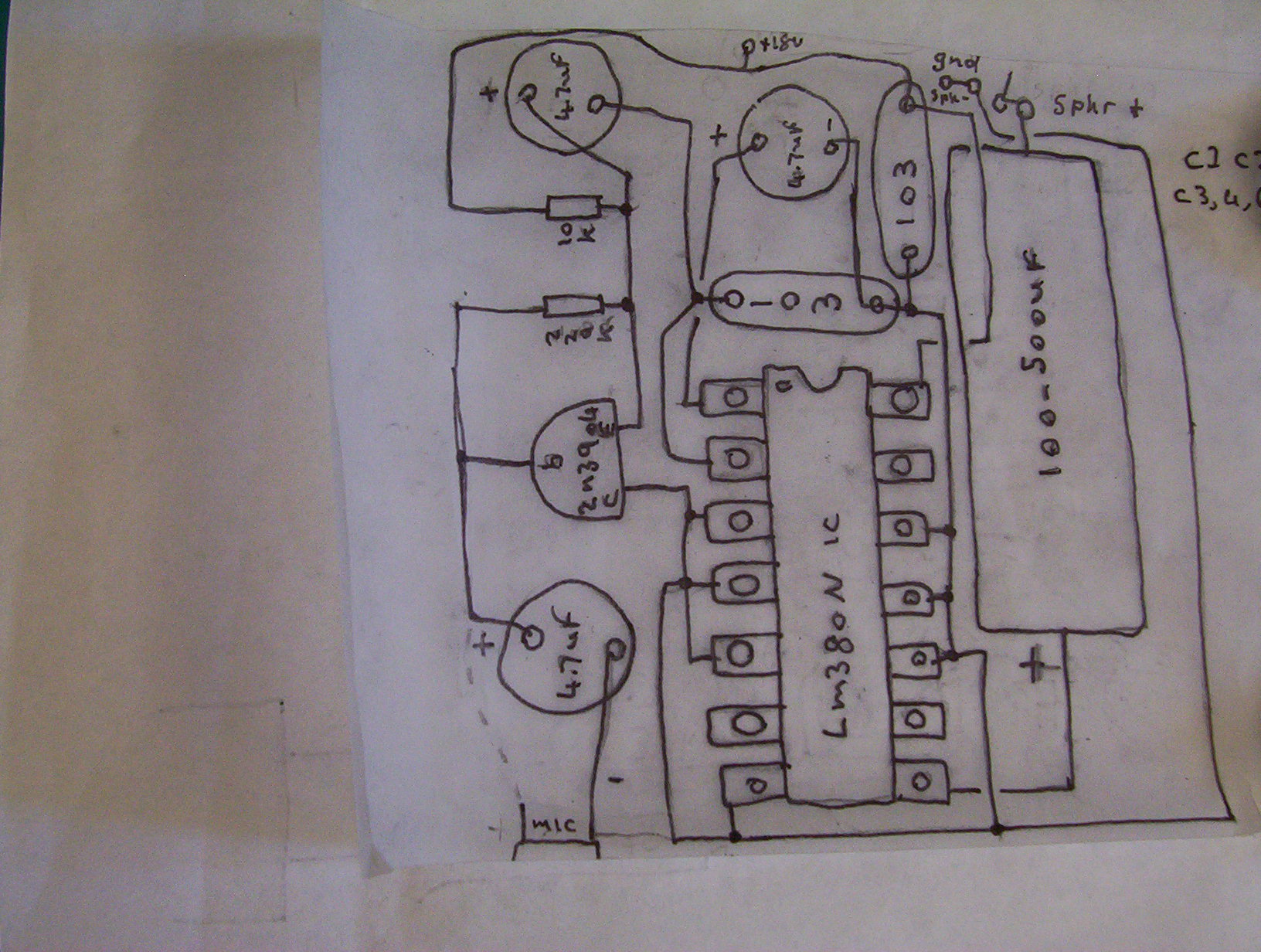

here is the drawing of it



Attachments

• 000_1563.jpg

  435.3 KB · Views: 654
