Sot-23 Transistor Pinout

Discussion in 'Datasheets, Manuals or Parts' started by wuchy143, Jun 29, 2009.

  1. wuchy143

    wuchy143 Member

    Joined:
    Feb 17, 2009
    Messages:
    425
    Likes:
    2
    Location:
    Manchester, NH, USA
    All,

    I've searched on google and on this forum and haven't found any info in regards to sot-23 package and the 2n4403 and 2n4401 bjt's. In the datasheets for these parts.

    http://www.fairchildsemi.com/ds/2N/2N4403.pdf
    http://www.fairchildsemi.com/ds/2N/2N4401.pdf

    They don't say the pinout for them meaning what pin number goes to either the base, emitter, or collector. Is there a standard for bjt transistors in a sot-23 package? It really would be nice if the datasheet just had the pin numbers there to avoid confusion. I'm assuming there must be a standard?

    Thanks

    -mike

  2. ericgibbs

    ericgibbs Well-Known Member Most Helpful Member

    Joined:
    Jan 4, 2007
    Messages:
    21,240
    Likes:
    645
    Location:
    Ex Yorks' Hants UK
    hi,
    Are these any help.?

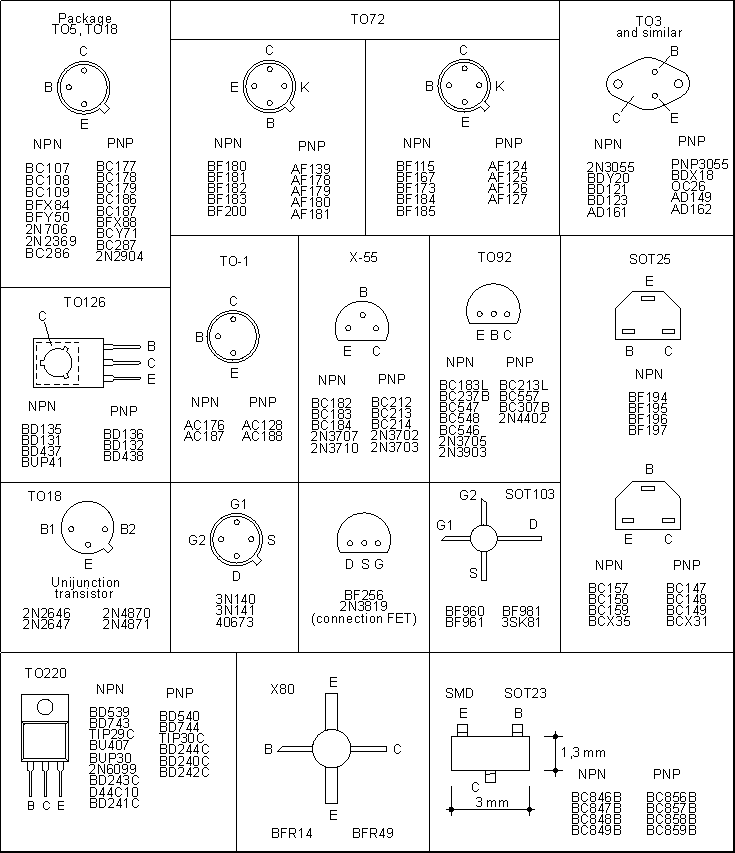

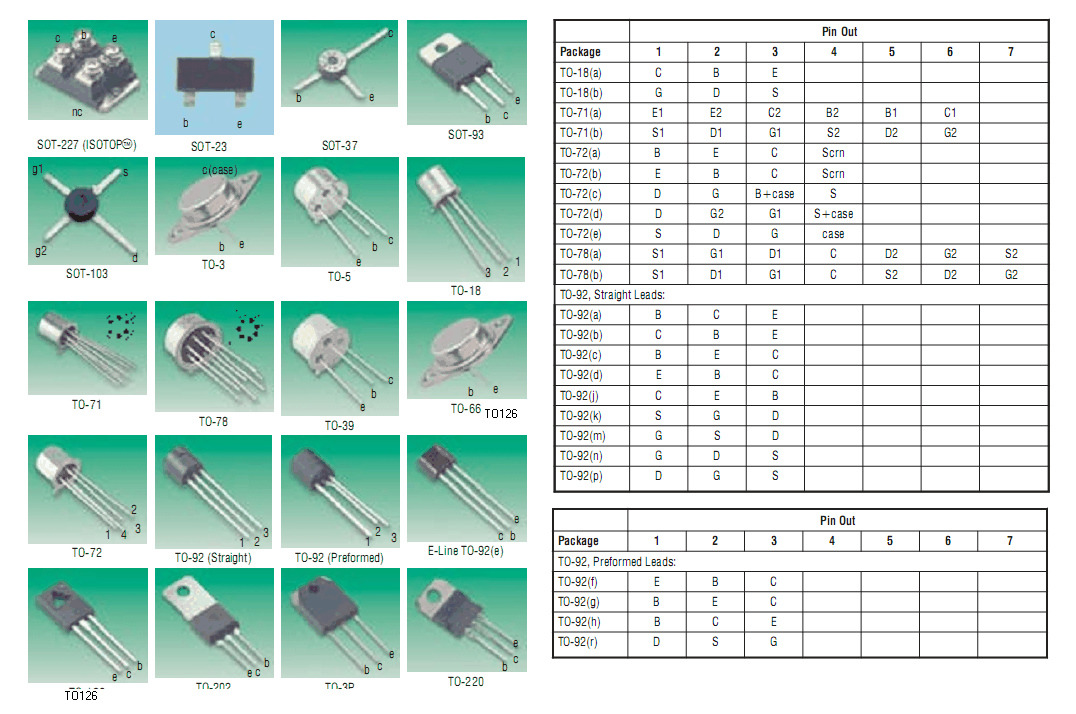

    Attached Files:

  3. wuchy143

    wuchy143 Member

    Joined:
    Feb 17, 2009
    Messages:
    425
    Likes:
    2
    Location:
    Manchester, NH, USA
    Thanks for the info. Some great "decoders" there. So, I'm assuming there is a standard pinout for a sot-23 package? I didn't see pin numbers in the sheets above.

  4. dave

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    -
    Likes:
    0



  5. wuchy143

    wuchy143 Member

    Joined:
    Feb 17, 2009
    Messages:
    425
    Likes:
    2
    Location:
    Manchester, NH, USA

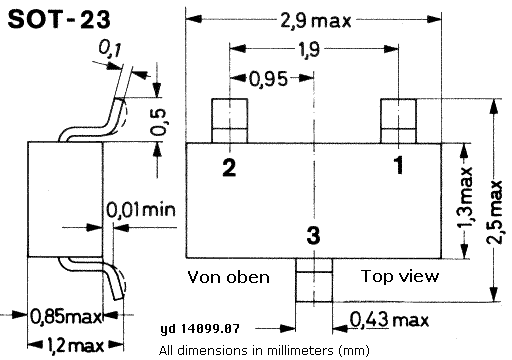

    I think I found it. Does everyone agree with this representation of the sot-23 package in regards to pinout?

    http://www.dl7avf.info/charts/outlines/sot23.gif

  6. dknguyen

    dknguyen Well-Known Member

    Joined:
    May 6, 2006
    Messages:
    6,768
    Likes:
    72
    ONLINE
    That's the one I've seen.

  7. hotwaterwizard

    hotwaterwizard Active Member

    Joined:
    Apr 5, 2004
    Messages:
    1,077
    Likes:
    12
    Location:
    Sacramento,California USA
    Last edited: Jun 29, 2009
  8. hdc090360

    hdc090360 Member

    Joined:
    Jun 12, 2009
    Messages:
    50
    Likes:
    0
    Location:
    Brisbane Australia
    Pinouts

    Mike,

    If you open the datasheets that you linked to, you will find that on the very first page, a picture of the sot-23 package with the pins marked on it.
