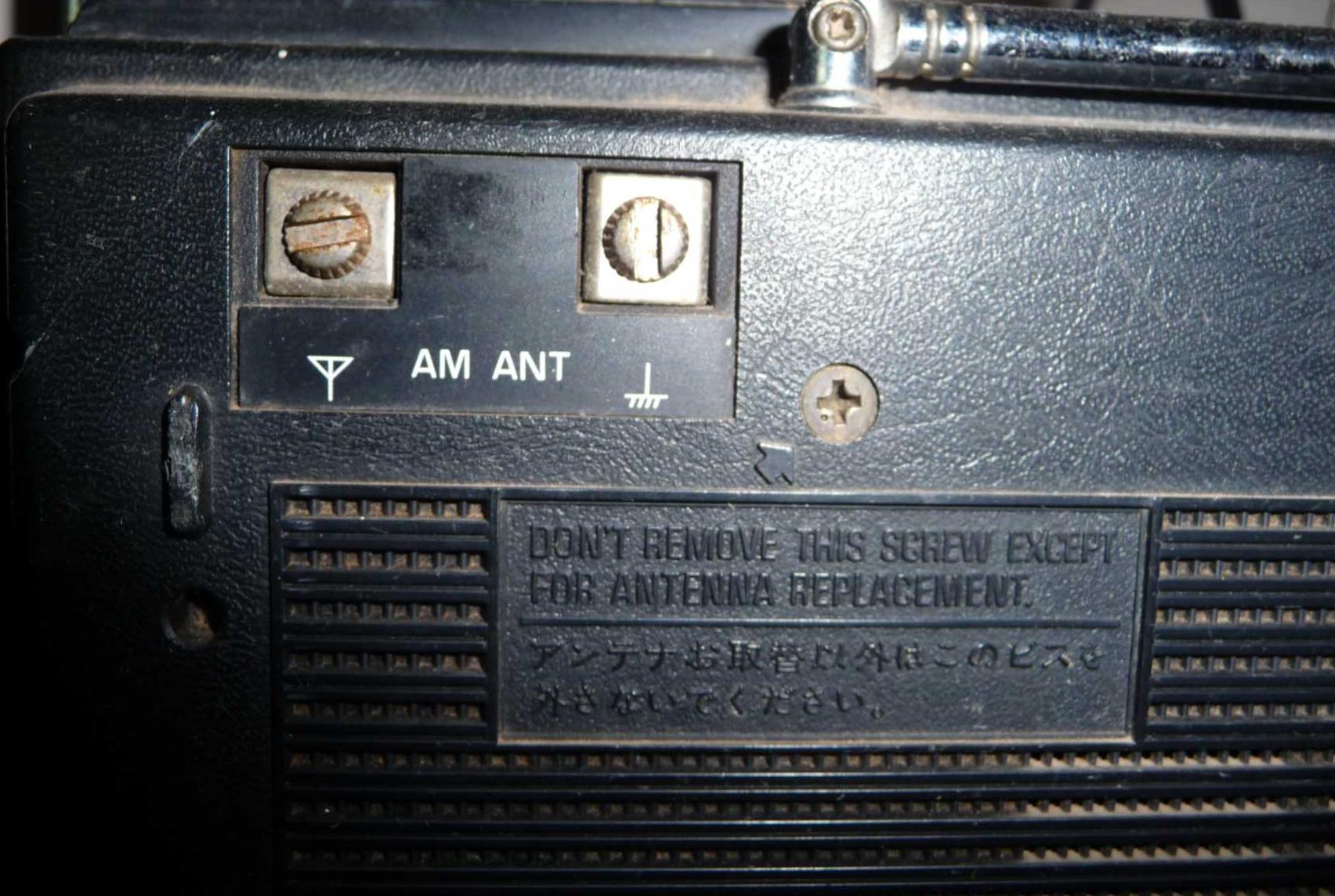

Recently i observed my Old Radio tuner...which had following symbols at the back, may i know what it means?



Attachments

• P1020891_1.jpg

  245.3 KB · Views: 174

blueroomelectronics

Well-Known Member

• Sep 8, 2009

• #2

Antenna, Ground.



Electroenthusiast

Active Member

• Sep 8, 2009

• #3

Antennae Is placed somewhere else/ but still?
And where does groung Come AC input Right?



blueroomelectronics

Well-Known Member

• Sep 8, 2009

• #4

That is a Chassis GND, it can often be connected to Earth or may form part of an AM loop antenna.
Ground (electricity) - Wikipedia, the free encyclopedia

And antenna is well an antenna tuned for AM reception. Can be as simple as a length of wire.
**broken link removed**
**broken link removed**



transistor495

Member

Forum Supporter

• Sep 8, 2009

• #5

That is external AM antenna port if needed. Not for FM.

External antenna unit may have two terminal for connecting to a receiver. One is signal output and other is ground.

That screw(with caution) looks like a fix for FM/or SW telescopic areal. If you unscrew it you need to open the cover to fix it properly.
