Proteus 7 questions

I've started to learn Proteus 7 and have some questions.
(How about that

I drew an LM380 circuit and connected an audio generator and 'scope.

I clicked the close tab on the 'scope and now I don't know how to restore it so I can view it again.



Last edited: Feb 24, 2009

C

colin mac

New Member

• Feb 23, 2009

• #2

Right click and select 'digital oscilloscope'.



F

flat5

Member

• Feb 23, 2009

• #3

Deleting the 'scope and selecting 'scope restored the display.



Last edited: Feb 23, 2009

F

flat5

Member

• Feb 23, 2009

• #4

Is there a way to remove the annoying <text> display for every component in ISIS? Displaying part number and value would be enough for now. The <text> really clutters up a drawing.



Boncuk

New Member

• Feb 23, 2009

• #5

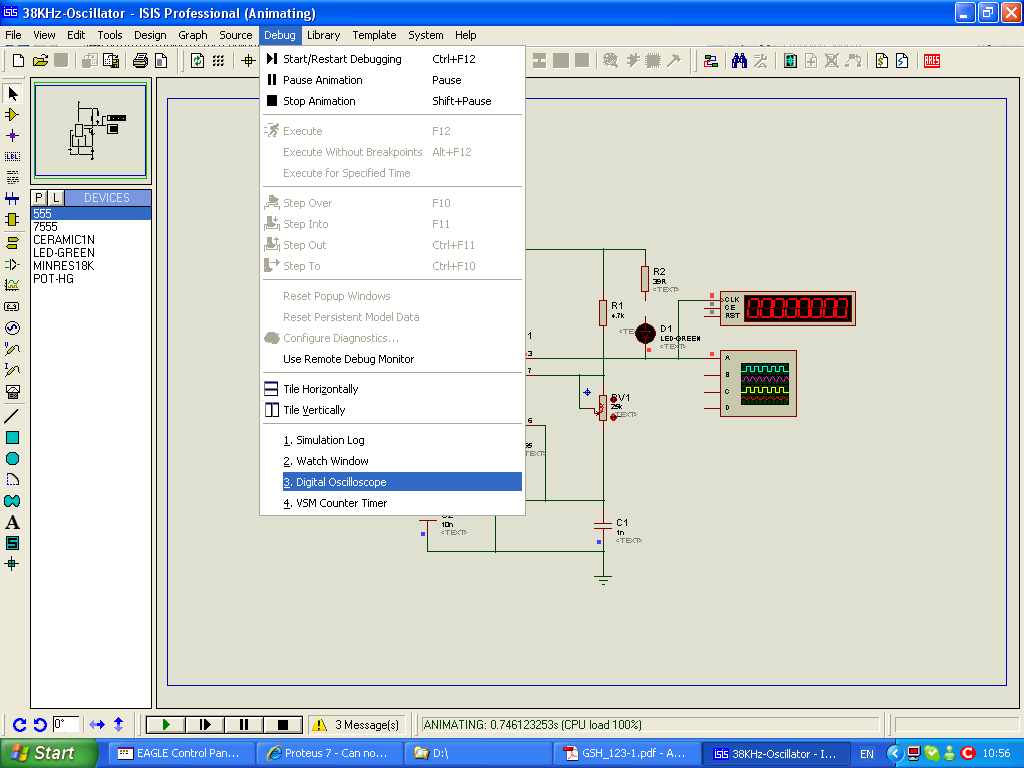

or select "Debug" and from there select "Digital Scope".

This works only during simulation.



Attachments

• Scope.png

  54.6 KB · Views: 2,071

Last edited: Feb 23, 2009

F

flat5

Member

• Feb 24, 2009

• #6

Thanks Boncuk, I'll try to remember that.
During a simulation, to see voltmeters, I have to move the 'scope out of the way. I'll just drag it off screen because closing "it" just causes problems.

Thanks colin mac, but you don't say what to right click. It's a big program.



C

colin mac

New Member

• Feb 24, 2009

• #7

Right click the scope that you placed and select it there. It needs to be running like Boncuk said.



Alejandro Santiago

New Member

• Jan 24, 2014

• #8

Boncuk said:

or select "Debug" and from there select "Digital Scope".

This works only during simulation.

Click to expand...

Hi, Im also a newbie in proteus ... and the fact I can only see the scope once each time I have to simulate, was a pain!
Than you for this clear and very usefull tip.

Regards.
Alejandro
