In a certain automated manufacturing process, electrical components are automatically inserted in a PC board. Before the insertion tool is activated, the PC board must be properly positioned and the component to be inserted must be in the chamber. A HIGH voltage indicates each of these prerequisite conditions. The insertion tool requires a LOW voltage to activate it. Design a circuit to implement this.

Someone please help.... i just keep confusing myself here!!



[hexreader]

This seems to be related to your other homework post.

A high input gives a low output....... Google "comparator" .... the thing you mention in your other post. .... or maybe "inverter" might do the job?

No more clues from me.....



[armin999]

Thank u ...(



[ronv]

Look at AND blocks.



[armin999]

Look at AND blocks.

Sorry I didn't get u would explain more



[john1]

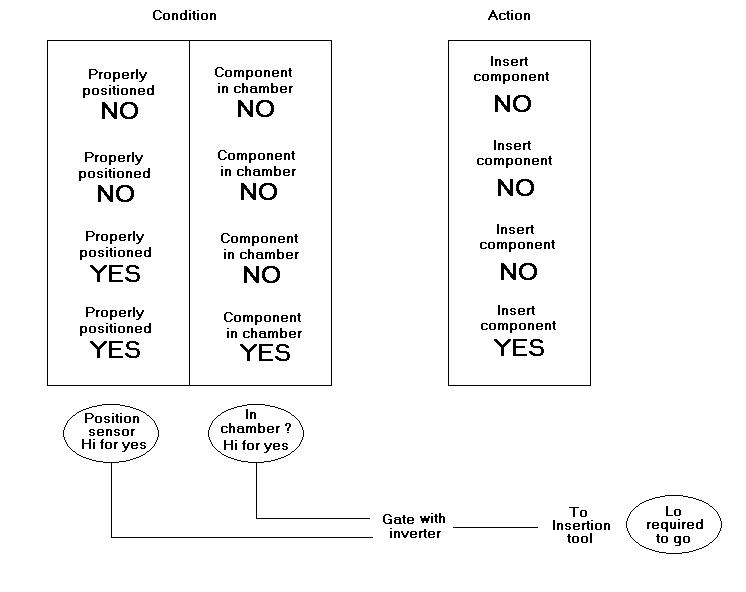

The following is offered as an illustration of one possible solution.
It should be easy to arrange a circuit similar to the bottom part.
There are other equally valid answers, but this is quite simple.
Best of luck with it,
John
