pins explain? motorized potentiometer..?

Status
Not open for further replies.

Ctrl_Alt_Del

New Member
does anyone have the pin detail about this motorized potentiometer..?
its an alps motorized potentiometer RK168 series..
https://www.potentiometers.com/alps_rotary.cfm#motor

but i dont know about the pin legs..
it have 2 legs for motor,

8 legs for potentiometer, stereo potentiometer?
what its all that..?

and 2 legs a dont know what it is..


Attachments

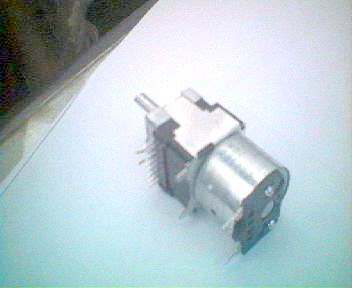

  • vrmotor.jpg
    11.2 KB · Views: 339
The Basic Pin necessay for motorized potentiometer are
2 pins for supply to motor
3 pins for potention meter (2 for fixed taps and 3rd for variable tap)

but I have seen motorized potentiometers which have two types of potentiometer one was linear and other was tapered so resistance given by both was different and had 6 pins

If you provide some part number or some more information we can give you more details if possible
/Edit/
Sorry I could not see your whole post before
here is the datasheet
https://www.electro-tech-online.com/custompdfs/2005/07/alps-mc.pdf
