How do I use a spectrum analyzer to measure noise power at different frequencies ? What part of my signal do I get to scan ?

Is there a particular bandwidth ???
If anyone can give me any tips thank you.



RadioRon

Well-Known Member

• Jul 7, 2009

• #2

Here is the basics:

https://www.electro-tech-online.com/custompdfs/2009/07/5966-4008E.pdf



S

saintefi

New Member

• Jul 7, 2009

• #3

RadioRon said:

Here is the basics:

https://www.electro-tech-online.com/custompdfs/2009/07/5966-4008E-1.pdf

Click to expand...

Thank you so much



RadioRon

Well-Known Member

• Jul 7, 2009

• #4

If that does not answer all your questions, post again.



S

saintefi

New Member

• Jul 13, 2009

• #5

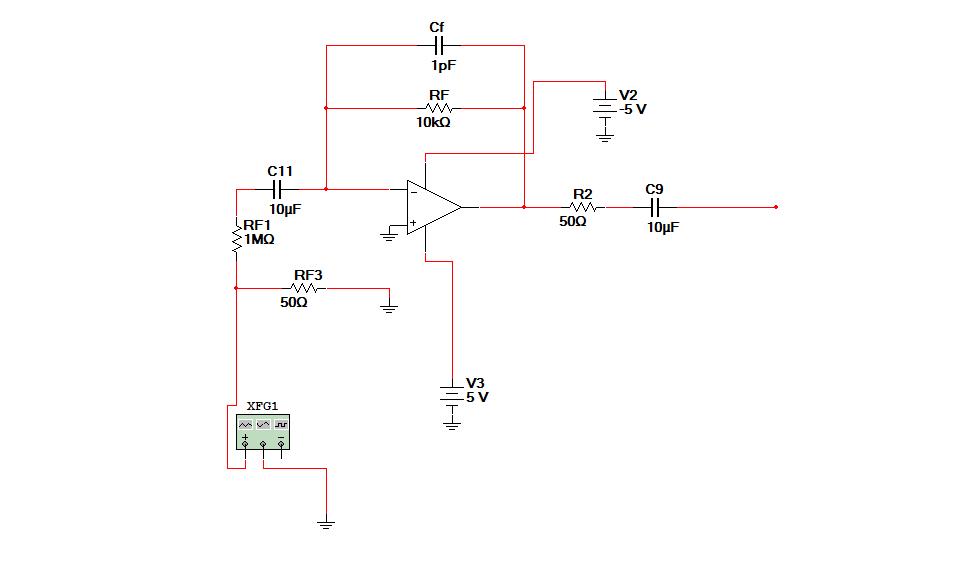

Back with my problems, how do I get to characterize noise in the circuit below analytically ??? I obtained some plots on a spectrum analyzer with different Rf values of (10,100,1k,10k,100k and 1M) Ω resistors.

The opamp model is LMH6624 with link **broken link removed**

Operating frequency range is from 20Hz - 3MHz....

Output is from C9



RadioRon

Well-Known Member

• Jul 13, 2009

• #6

Here is some reference information to get started with this question:

https://www.electro-tech-online.com/custompdfs/2009/07/AN-104.pdf

https://www.electro-tech-online.com/custompdfs/2009/07/OA-12.pdf

These app notes were found here:
**broken link removed**
