Need Help building this circuit

Status
Not open for further replies.

claptonisking

New Member

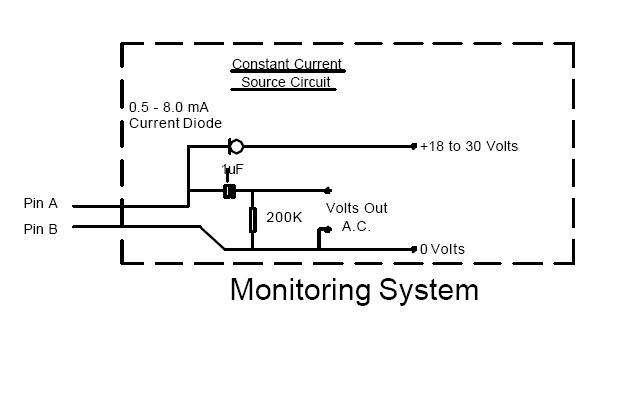

Hi, I totally have no background in practical circuit building as I have never taken an electronics course in my University, however, in one of my assignments, I am to build a circuit for the connection of an accelerometer to a measurement device. I have no clue as to how to go about building this

can someone please explain to me, a layman when it comes to electronics, how to build this system.


Attachments

  • circuit2build.jpg
    21.4 KB · Views: 95
Last edited:

Grossel

Well-Known Member
As far I know there is no such thing as a "current diode". You can however make a constant current generator by using only a few components.

Best tip is to get somebody else to build the circuit and print board, because it takes lot of time to learn, and also you need some basic practice to understand welding and mounting.


KMoffett

Well-Known Member
First...Yes there are "constant current diodes", for example (Google): **broken link removed**
And programmable ones: https://cds.linear.com/docs/Datasheet/134sfc.pdf :)

Second...Please attach you images here, not on an image storage site with [WORD CENSORED] ads on the top and bottom of the screen. :(

Ken

Note the censored word was P**N
