Nano Christmas Tree

[MrAl]

Hi there,

I am getting ready for Christmas and i like decorations, so here's a little project prototype that is very simple to construct.
It's a 2d LED Christmas tree controlled by a Nano micro controller

It was fun to build really, and didnt take too much time. It's programmable so you can change the way the lights blink.
Too bad i cant take a video yet, as the lights are too bright. I might try dimming them later to get a video. It's hard to understand how cool it looks as the LEDs blink at random rates and times so it looks pretty nice.
If you make one you can be a little more elaborate too, i just wanted to stay simple so it didnt take too much time. I might make a better looking tree cutout though later some time.

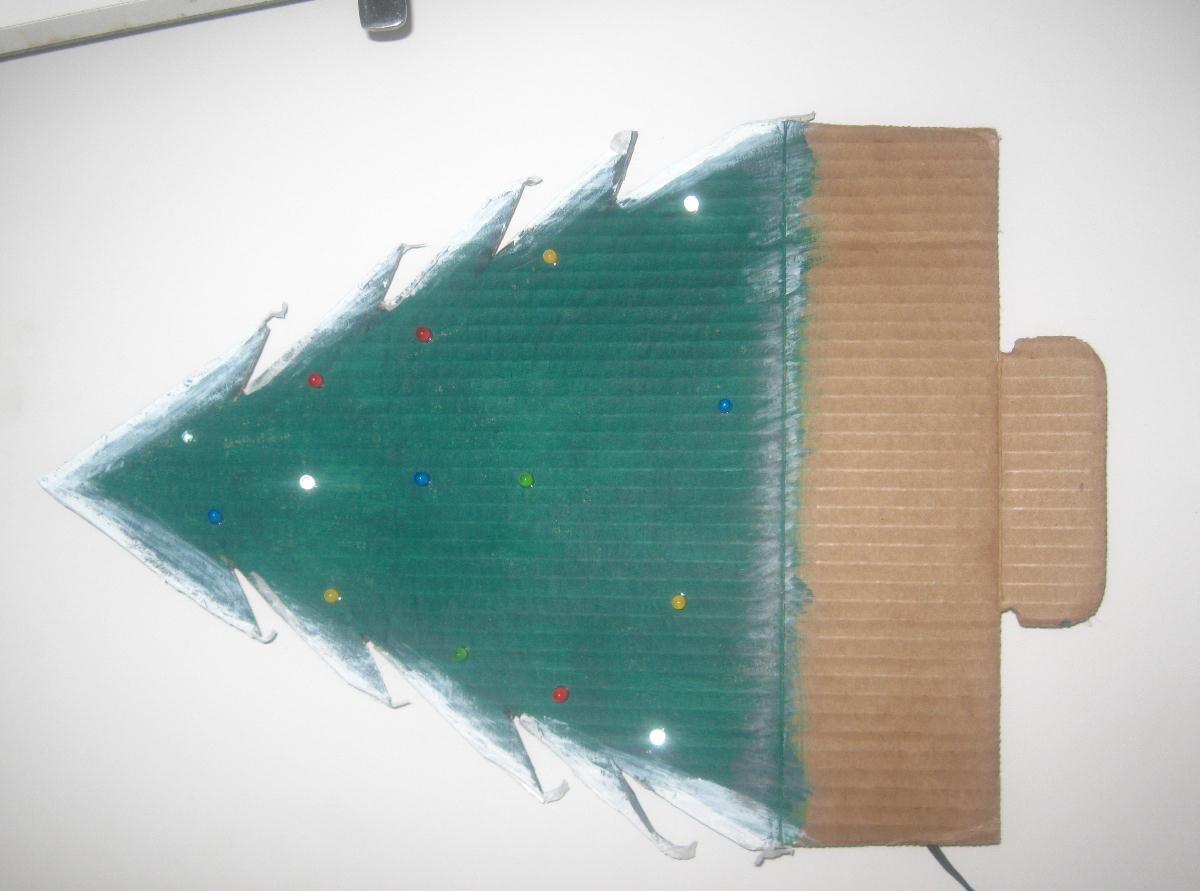

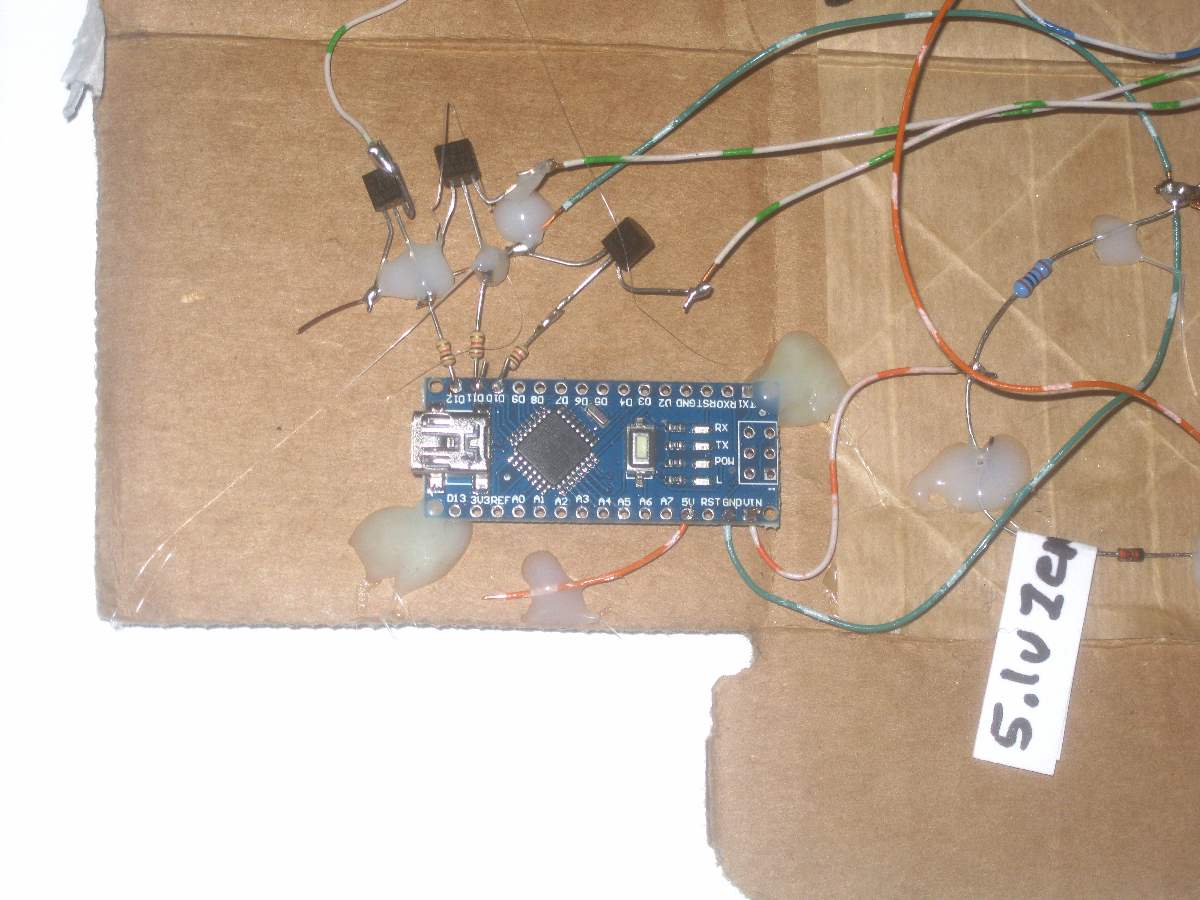

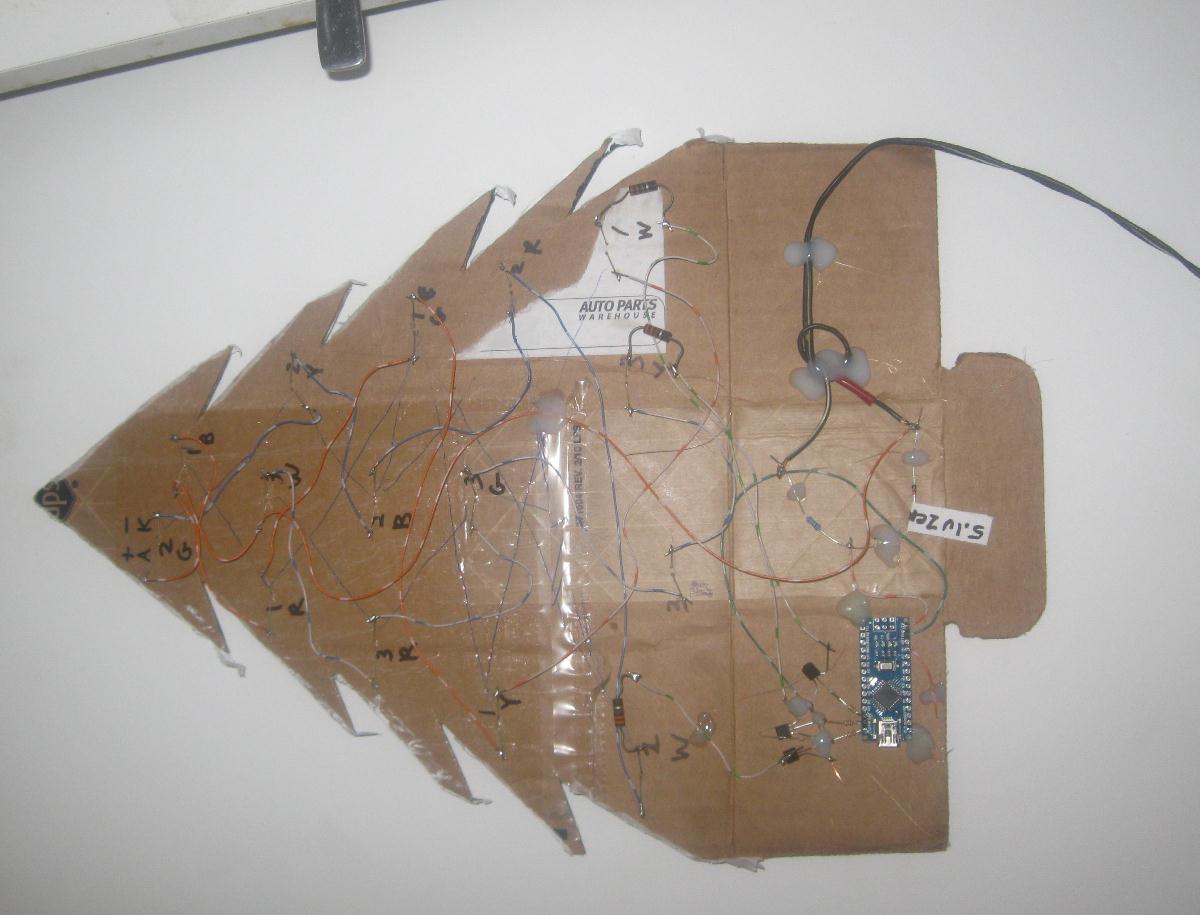

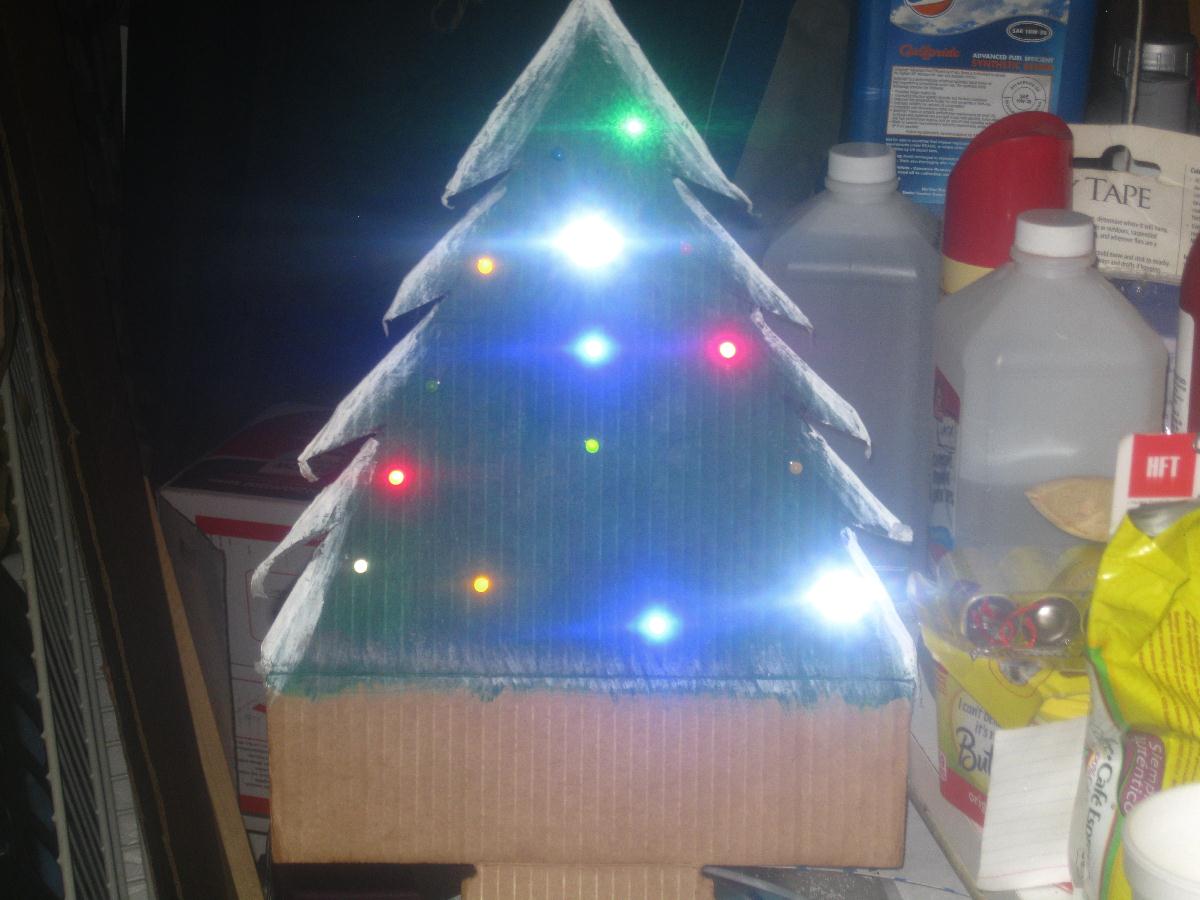

The pics are shown in the attachments, but keep in mind that the brown bottom part folds under to act as a stand for the tree. As the photos show, that is not folded under yet. The Nano and driver transistors are clearly visible from the back but will not be seen from the front. A closeup of the Nano controller is also included.
