LTspice simulation of cells in parallel doesnt seem to work

Status
Not open for further replies.
O

opampsmoker

Member
Hi,
In the attached LTspice sim, i put a 3V7 cell in parallel with a 4V1 cell..........they should become the same voltage because they are in parallel but they dont.
Do you know whats going on.?


Attachments

  • Cells in parallel.asc
    577 bytes · Views: 224

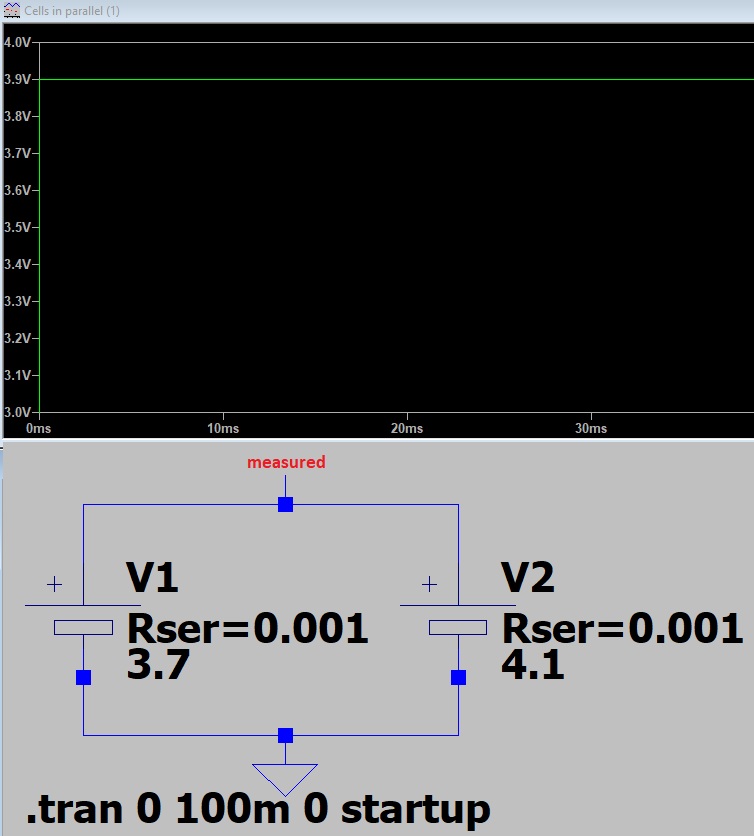

This is what mine shows:


Attachments

  • cells in parallel.png
    17.8 KB · Views: 244
opampsmoker said:
Hi,
In the attached LTspice sim, i put a 3V7 cell in parallel with a 4V1 cell..........they should become the same voltage because they are in parallel but they dont.
Do you know whats going on.?
Click to expand...
In a simulation, nothing blows up when you do something you shouldn't do.
In real life, things are not so forgiving.

Never, never, never, put two mismatched cells in parallel. They should both be charged to the same voltage before you put them together.

Look at the battery current to see why this is not likely a real life circuit.
