Ltspice Parametric Plots cant see curve.

v1.5

New Member
hello.
i want to see current flowing curve on {r} , which means R7 ,resistor. I wanted to change x axis plot as like they said here , but curve is not able to see on my pc.

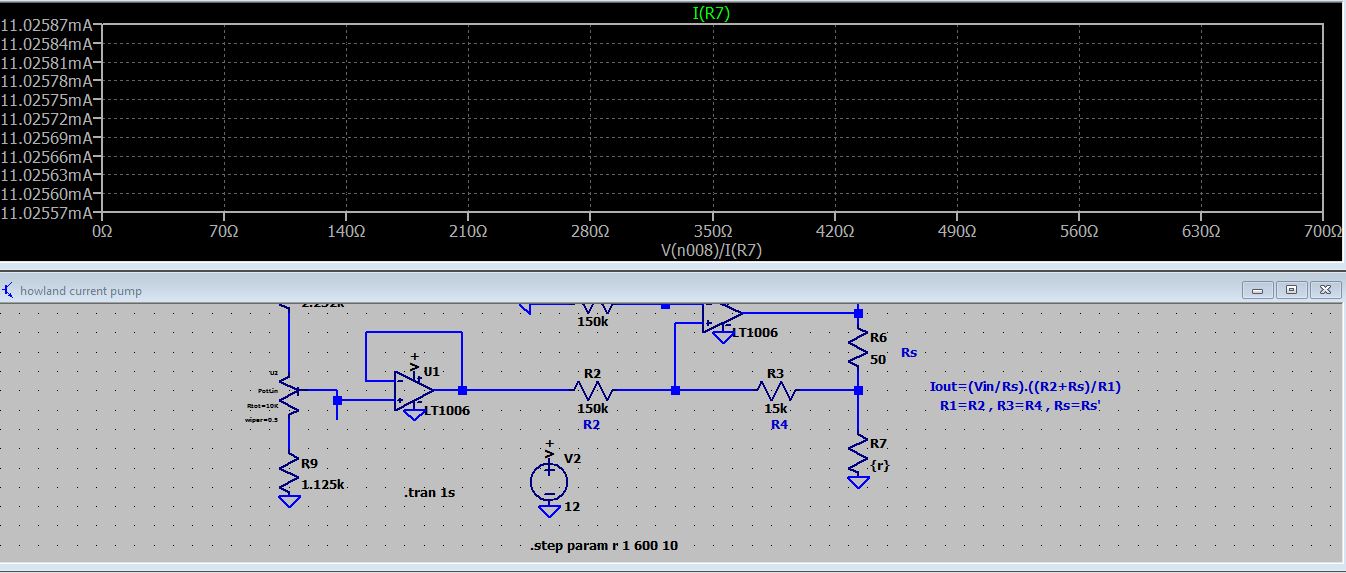

iwanted to see current changing on diffirent resistor values. Here is my scopescreen;


alec_t

Well-Known Member
Most Helpful Member
iwanted to see current changing on diffirent resistor values

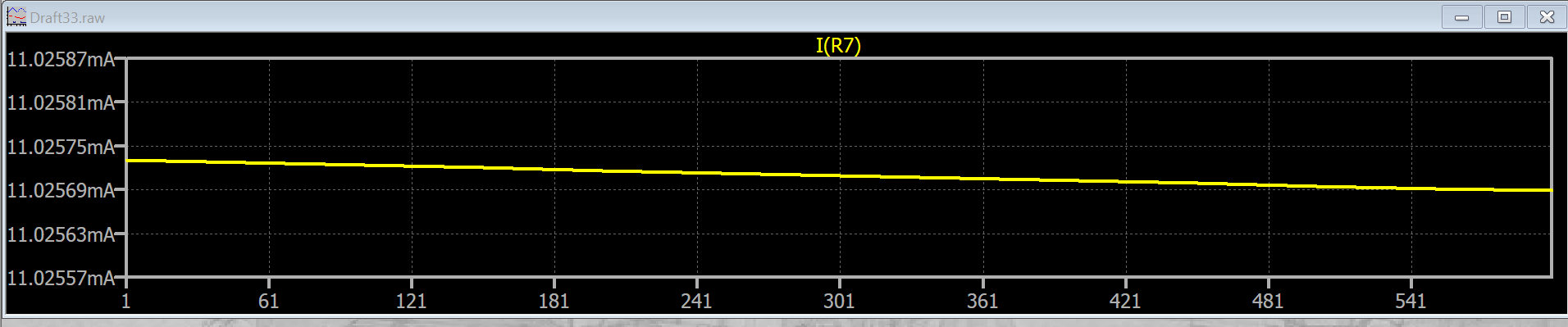

Instead of a Trans analysis, do a DC operating point analysis.


v1.5

New Member
Instead of a Trans analysis, do a DC operating point analysis.
thanks a lot.
When i want to see like these curves should i use dc operation analysis?
In the link , the guy was telling ways on .TRAN analysis :rolleyes:.
thanks again.


crutschow

Well-Known Member
Most Helpful Member
I wanted to change x axis plot as like they said here
To what?
What exactly do you want for the horizontal and vertical axis on the plot?


v1.5

New Member
To what?
What exactly do you want for the horizontal and vertical axis on the plot?
horizontal will be resistor
vertical will be current


alec_t

Well-Known Member
Most Helpful Member
The DC op point analysis will give you that.
