Vehicles pre 2010 use a seperate vss on the gearbox, 4 or 6 ppr of the wheel, later vehicles than that seem to use one of the abs sensors for vehicle speed.

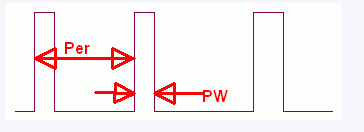

The low duty wave above looks much like a abs hall effect sensor o/p.
