HP officejet d155xi contol board assy

Status
Not open for further replies.

vedo35

Member

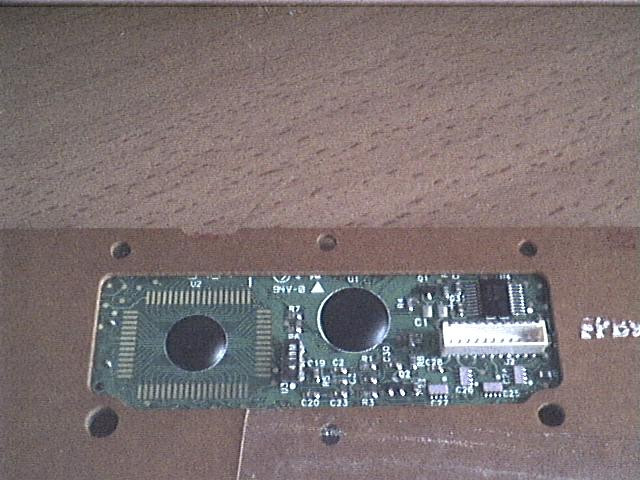

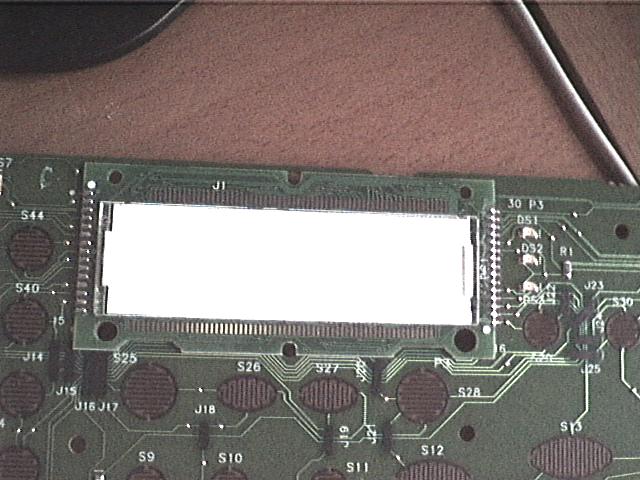

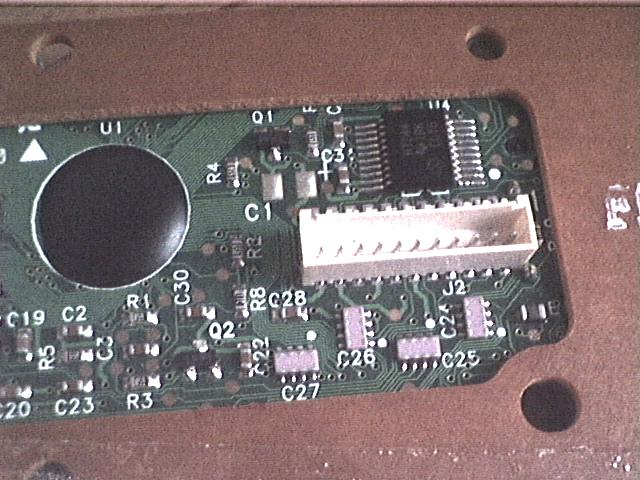

Hi, I have this printer control panel with graphic LCD. I want to use this LCD board with lcd controller. But i dont have of this printer service manual or this control assy board coonector pin in/out names. Maybe have you? If so can you upload pls? Here of this lcd panel pics.
Regards..


Attachments

  • Picture 001.jpg
    54.6 KB · Views: 228
  • Picture 002.jpg
    55.5 KB · Views: 231
  • Picture 003.jpg
    62.8 KB · Views: 224
I think it's fairly obvious it's a custom device, so you're not going to find data on it.

no only device part number and on the device there are a little smd ht244 thats is it.
