Help to recognize the IC marking

Willen · Nov 19, 2018

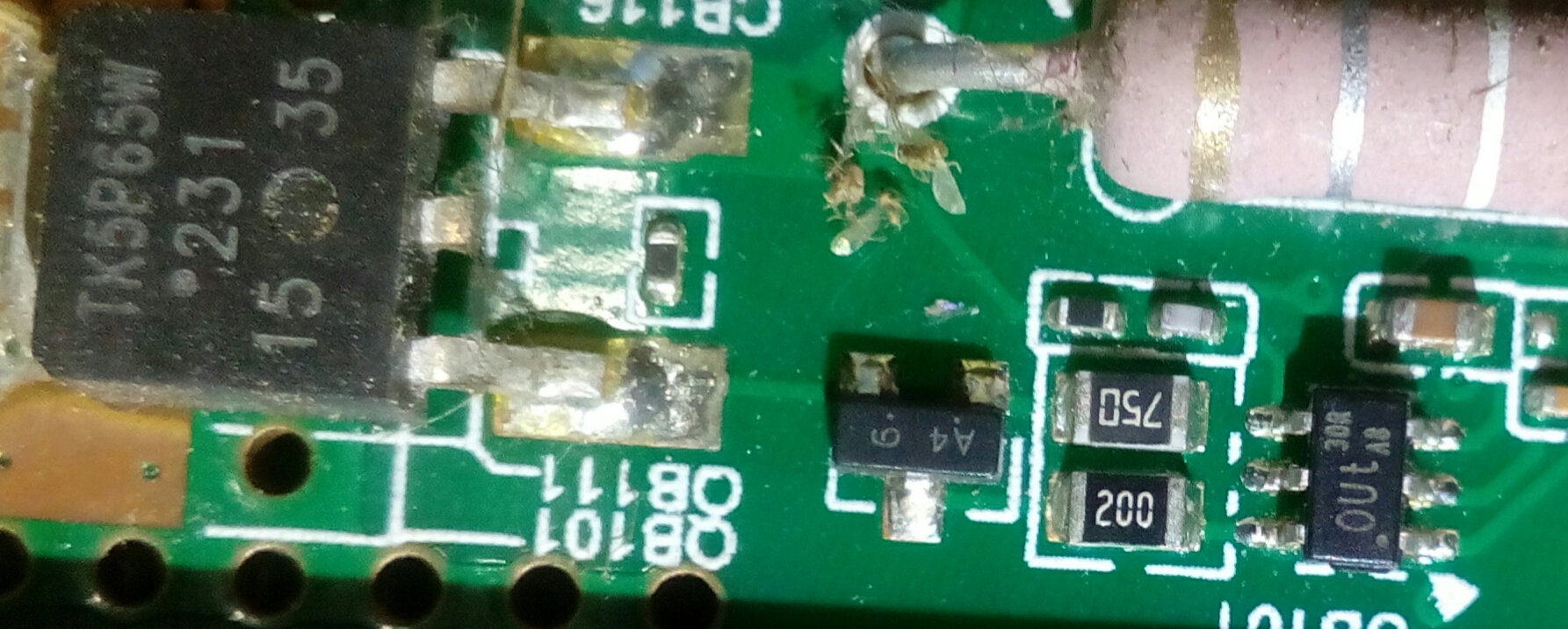

The IC used in a power supply as a switching IC of KONKA TV mainboard. The marking "out" and other tiny letters seems unique or encoded. There I can see the IC driving a small smd transistor (maybe) and the transistor driving the final MOSFET which is driving the transformer.

So what is the real number/name of the IC (6 pin SMD) so that I can search about it or replace it.

gophert · Nov 19, 2018

Hey Willen!
Excellent photo. Did you have a question?

Willen · Nov 19, 2018

Hi,
I thought the title will be enough. I will edit.

unclejed613 · Nov 20, 2018

it could also be a dual transistor. btw i see some insect wings and what looks to be some dead insects next to that large resistor...

JimB · Nov 20, 2018

unclejed613 said:
i see some insect wings and what looks to be some dead insects

Just needs debugging, I think.

JimB

atferrari · Nov 20, 2018

Is **broken link removed** you are asking about?

cowboybob · Nov 20, 2018

JimB said:
Just needs debugging, I think.

JimB

Gave ya a "Like", JimB, but only because there's no "Groan" Smiley...

unclejed613 · Nov 20, 2018

cowboybob said:
Gave ya a "Like", JimB, but only because there's no "Groan" Smiley...

i thought about it when i posted, but it was too obvious, would have required a double groan...

JimB · Nov 20, 2018

The old jokes are always the best ones.

Apologies to Willen for the thread drift/hijack, but I just could not resist it.

At least atferrari has been diligent and found the answer to Willens question.

JimB

Willen · Nov 20, 2018

atferrari said:
Is **broken link removed** you are asking about?

Hi,
Sorry, I am not asking about the bigger MOSFET, I am asking about smaller 6 pin IC marked as "out".

JimB said:
The old jokes are always the best ones.

Apologies to Willen for the thread drift/hijack, but I just could not resist it.

At least atferrari has been diligent and found the answer to Willens question.

JimB

It's fine, laughing is good for health. I already crossed through the debugging process and fixed or terminated some bugs. And the problem of firmware has been solved but question about hardware is still alive.
