ESP8266 12e

Status
Not open for further replies.

Mosaic

Well-Known Member
Hi All:
I am trying to do I²C with this 12 e unit, can anyone advise if I can use GPIO 6,7 for SCL,SDA? 4.7K pullups to 3.3Vcc.

thx


be80be

Well-Known Member
I think that is right spi is gpio 12 to 15
clk is 12
data 13
CS 15
Q is 12

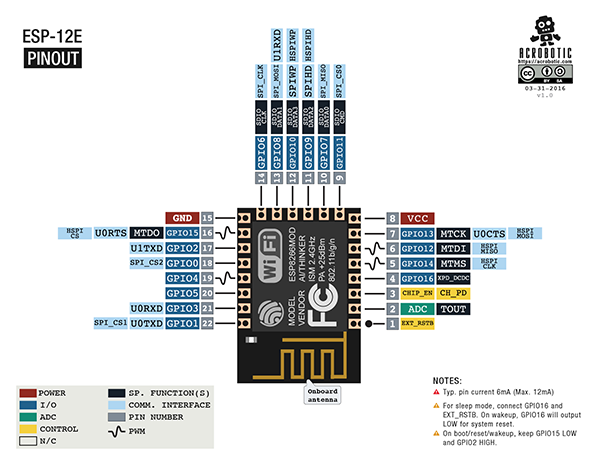

Thats 7 Data and 6 clk on that pic

Last edited:

Ian Rogers

User Extraordinaire
Forum Supporter
Most Helpful Member
Are you sure that even HAS an I2C interface??? SPI and I2C aren't hardware or software compatible.

I2C is inherently two wire where an "Ack" is used whereas SPI is pure serial using three wires where two "MISO and MOSI" are a ring connection.... You would need to re-write the firmware on the Wifi unit... If you tried the connection as you need, the data return would be though GPIO 7 and as it is simultaneous it would be impossible to read the answer whilst transmitting the question..


be80be

Well-Known Member
Lol I thought he said spi sorry. It can do i2c too there's a api for that that you add to firmware


Mosaic

Well-Known Member
Yeah there's a s'ware lib build to do i2c and map it to different GPIO.
I think GPIO2 & 4 are used.
