Can I connect reed switch with microcontroller using 15 meter cable ?

Discussion in 'General Electronics Chat' started by emb, Jan 13, 2018.

  1. emb

    emb Member

    Joined:
    Aug 18, 2017
    Messages:
    65
    Likes:
    4
    Hi all,

    I want to connect reed switch with Microcontroller .
    The distance between the switch and Mcu about 15 m .

    Can I connect the switch with pullup resistor to Mcu ?

    Regards :)

  2. alec_t

    alec_t Well-Known Member Most Helpful Member

    Joined:
    Jul 10, 2011
    Messages:
    9,763
    Likes:
    1,284
    Location:
    Cardiff, Wales
    Yes, but to reduce the effects of interference pickup it would be advisable to use twisted pair or screened cable and to connect a low-pass filter before the MCU input.

  3. emb

    emb Member

    Joined:
    Aug 18, 2017
    Messages:
    65
    Likes:
    4
    thank you :)

    could u post a schematic for the low pass filter ^.^

    regards ;)

  4. dave miyares

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    2
    Likes:
    -10



  5. Colin

    Colin Active Member

    Joined:
    Sep 25, 2003
    Messages:
    502
    Likes:
    31
    Location:
    Australia
    The pull-up can be as low as 1k

  6. alec_t

    alec_t Well-Known Member Most Helpful Member

    Joined:
    Jul 10, 2011
    Messages:
    9,763
    Likes:
    1,284
    Location:
    Cardiff, Wales

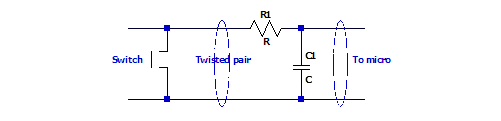

    Here you go. Component values depend on the pull-up value and on the frequency of operation of the switch.

    Last edited: Jan 14, 2018
