3-way LED flip-flop circuit

[Sarfaaz]

I want to build a circuit having 3 way LED flip flop, plz suggest me a link



[tvtech]

I want to build a circuit having 3 way LED flip flop, plz suggest me a link

A nine year old thread ressurected...got to be a record

Welcome to ETO Sarfaaz.....try starting a new thread rather (you are allowed to). That way you will get more replies

Regards,
tvtech



[DerStrom8]

Hi Sarfaaz & tvtech,

I have moved this question to its own thread.

Sarfaaz, welcome to Electro-Tech Online! Next time when you want to ask a new question, you can go to the Forums page, select the forum you want to post to, then click the "Post New Thread" button to create your own. Hijacking other peoples threads, as well as resurrecting old ones, is generally discouraged here.

With that being said, enjoy the site!
Regards,
Matt



[Mikebits]

What the heck is a 3 way LED flip flop?



[Reloadron]

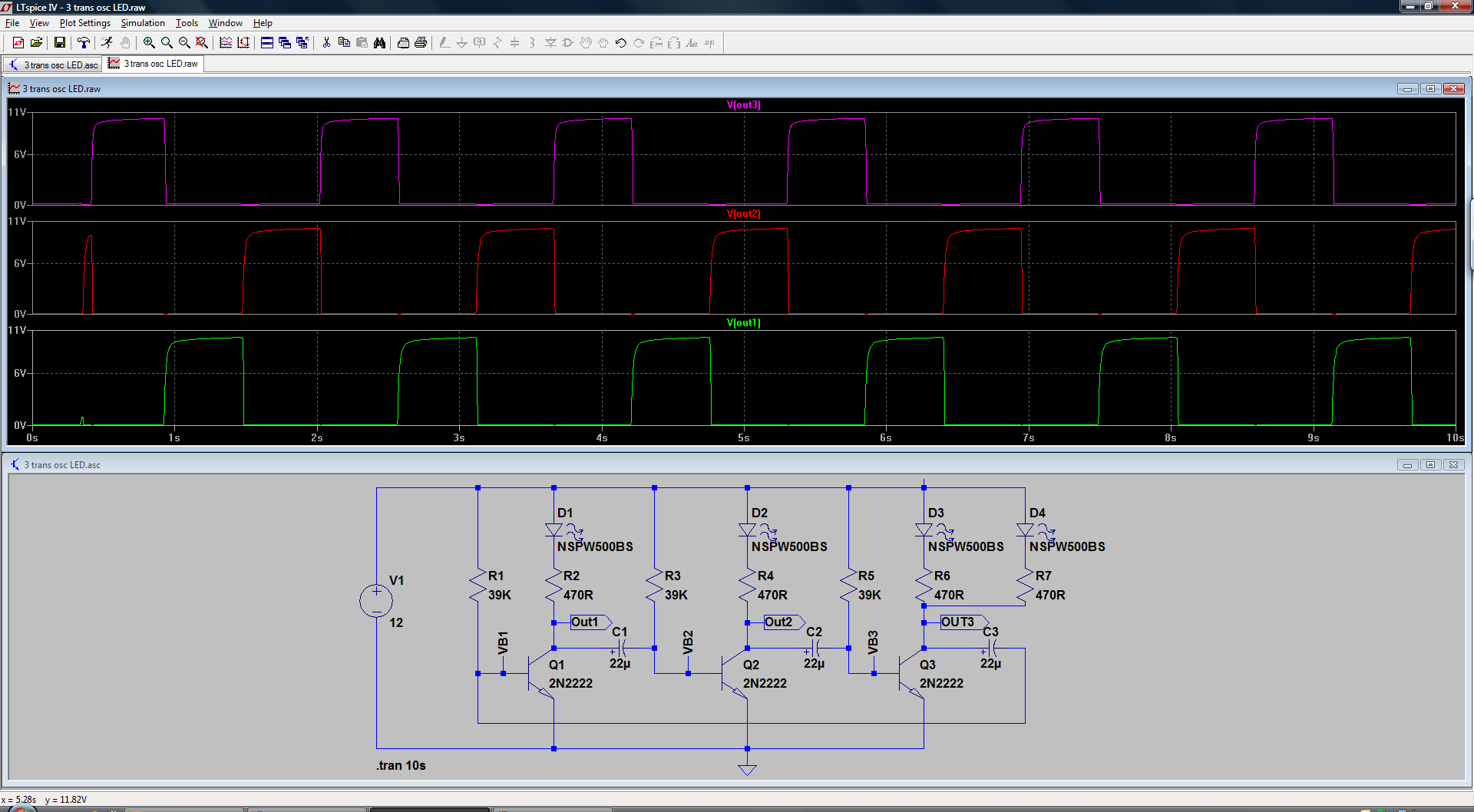

I think what you want is a 3 transistor oscillator where using 3 transistors you sequentially light 3 LEDs? You make no mention of timing? Would the below circuit be what you want?


The circuit does not need D4 or R7 making it a 3 transistor 3 LED circuit. You figure the LED resistors based on the LEDs you choose to use.

You really need to better explain what you want or expect the circuit to do. My reply is little more than a guess.

Ron



[Sarfaaz]

What the heck is a 3 way LED flip flop?

I think it's called shift resistance circuit.



[Sarfaaz]

Hi Sarfaaz & tvtech,

I have moved this question to its own thread.

Sarfaaz, welcome to Electro-Tech Online! Next time when you want to ask a new question, you can go to the Forums page, select the forum you want to post to, then click the "Post New Thread" button to create your own. Hijacking other peoples threads, as well as resurrecting old ones, is generally discouraged here.

With that being said, enjoy the site!
Regards,
Matt

thanx bro.



[Reloadron]

I think it's called shift resistance circuit.

I assume the circuit I posted is not what you want. Do you mean a "Shift Register" using for example flip flops like maybe D flip flops configured as a shift register? What exactly do you want the circuit to do with the LEDs you mention?

Ron



[Ratchit]

A three state circuit is a FLIP-FLAP-FLOP entity.

Ratch
