Unicorn GLCD demo.

Discussion in 'Microcontrollers' started by Pommie, Jun 20, 2007.

  1. Electronic2050

    Electronic2050 New Member

    Joined:
    Apr 28, 2007
    Messages:
    37
    Likes:
    0
    Location:
    Iran
    thanks of bryan and Pommie for reply
    thanks Pommie, but i don't need to convert one or two logo.
    i need urgent a software for convert logo.
    can you give me your software.

  2. bryan

    bryan Member

    Joined:
    Jun 21, 2003
    Messages:
    416
    Likes:
    3
    Location:
    Vancouver, Canada
    What you can also do is use Microsoft's paintbrush program. Create a image with the attributes 128x64 pixels from Image-->Attributes.

    Create/import design your logo. Save as Monochrome bitmap. Once saved open up the image in a program called BMP to ASM. this program will convert the bmp to usable code. The listing at the bottom of the program should be self explanatory.

    The program can be found at BMP to PIC table for graphic LCD assembly utility

  3. AtomSoft

    AtomSoft Well-Known Member

    Joined:
    Feb 7, 2008
    Messages:
    5,670
    Likes:
    41
    Location:
    Brooklyn, NY US
    I sometimes use GLCD Generator from Mikro.

    mikroC - Advanced C compiler for PIC microcontrollers

    If you install the demo it comes with a nice GLCD image converter. You can use it for free. Its a nice tool. Converts BMP to C, BASIC, or PASCAL

    When you install the above find this folder:
    "C:\Program Files\Mikroelektronika\mikroC\tools\Graphic LCD editor"

    and run "glcd_editor.exe" and your set.

    You can always create a shortcut to it on your desktop so you can use it when ever you want.

    It even has a invert button!

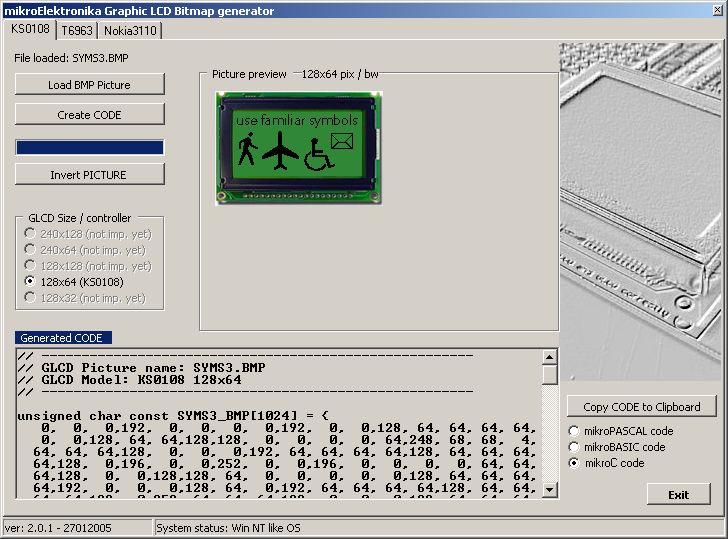

    Ill post a screen shot.


    Attached Files:

    • glc.jpg
      File size:
      82.9 KB
      Views:
      295
    Last edited: Feb 14, 2009
  4. dave

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    -
    Likes:
    0



  5. Pommie

    Pommie Well-Known Member Most Helpful Member

    Joined:
    Mar 18, 2005
    Messages:
    10,013
    Likes:
    317
    Location:
    Brisbane Australia
    ONLINE

    I think these converters will work as long as the width is a multiple of 8.

    Mike.

  6. AtomSoft

    AtomSoft Well-Known Member

    Joined:
    Feb 7, 2008
    Messages:
    5,670
    Likes:
    41
    Location:
    Brooklyn, NY US
    lol it should work on anything. As long as your Micro-Controller knows the width and height you shouldnt have a issue.

  7. juanog

    juanog New Member

    Joined:
    Feb 16, 2009
    Messages:
    6
    Likes:
    0
    Glcd

    please i need information of libraries of glcd.I`m using mplab C18. I donĀ“t find information please help me:(

  8. Electronic2050

    Electronic2050 New Member

    Joined:
    Apr 28, 2007
    Messages:
    37
    Likes:
    0
    Location:
    Iran
    hi bryan
    and thanks for link and help
    i download "BMP to ASM converter" that was in your link but the width and height is very long how i change it to compatible with GLCD functions in first post.

    for example i change my pic to this code can you show me this pic :
    PHP:
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0xC0,0xC0,0xC0,0xC0,0xC2,0xC2,0xE2,0xE0,0xE0,0xE0,0xE0,0xE4,0xF0,0xF0,0xF8,0x78,0x30,0xC0,0xE0,0x30,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0xC0,0xC0,0xE0,0xE0,0xE0,0xF0,0xF0,0xF8,0xF8,0xFC,0xFC,0xFC,0xFE,0xFE,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x7F,0x3F,0xCF,0x71,0x1C,0x0F,0x03,0x00,0x00,0xC0,0xE0,0x78,0x1E,0xCF,0xE3,0xF8,0xFF,0xFF,0xFF,0xFE,0xFE,0xFE,0xFE,0xFC,0xFC,0xFC,0xFC,0xFC,0x7C,0x78,0x78,0x38,0x38,0x38,0x38,0x38,0x38,0x38,0x38,0x38,0x38,0x58,0x58,0x18,0x1C,0x1C,0x1C,0x1C,0x1C,0x1C,0x1C,0x1C,0x1C,0x1E,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x60,0x70,0x60,0x28,0x28,0x2C,0x2E,0x3E,0x3F,0x3F,0x3F,0x3F,0x37,0x17,0x17,0x17,0x17,0x17,0x17,0x17,0x17,0x17,0x1F,0x1F,0x3F,0x3F,0x2F,0x2F,0x2F,0x2F,0x3F,0x7F,0x5F,0x5F,0x5F,0xFF,0xFF,0xBF,0xBF,0xDF,0xE7,0x79,0x1C,0x0F,0x03,0x00,0x00,0x80,0xE0,0xF8,0xBC,0xF7,0xF9,0xFE,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x7F,0x07,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x80,0x88,0xE0,0xE0,0xF0,0xFC,0xFC,0xFC,0xFC,0xFC,0xFC,0xFE,0xFE,0xFE,0xFE,0xFE,0xFE,0xFE,0xFE,0xFE,0xFE,0xFE,0xFE,0xFE,0xFE,0xFE,0xFE,0xFE,0xFE,0xFE,0xFC,0xFC,0xFC,0xFC,0xFC,0xF8,0xF8,0x78,0x90,0xC0,0xF0,0x70,0x00,0x01,0x01,0x01,0x00,0x00,0x80,0x80,0x04,0x0E,0x0F,0x09,0x1E,0x1F,0x1F,0x3F,0x3F,0x3F,0x3F,0x3F,0x7F,0x7F,0x7F,0x7F,0x7F,0x7F,0x7F,0x7F,0x7F,0xFC,0xF8,0x18,0xF0,0xF0,0xF0,0xF0,0xE0,0xFE,0xFE,0xFE,0xFE,0xFE,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFE,0xFE,0xFE,0xFE,0xFE,0xEE,0xEE,0xEE,0xEE,0xEE,0xFE,0xFE,0xFE,0xFE,0xFE,0xFC,0xFC,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x80,0x40,0xB0,0xE8,0xF6,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xCF,0xF3,0x3E,0x0F,0x03,0x00,0x00,0x00,0xC0,0xE0,0x78,0x1E,0x0F,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0x1F,0x3F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x7F,0x3F,0x0F,0x07,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x60,0x60,0x22,0x2D,0x3F,0x3F,0x3F,0x3F,0x3F,0x3F,0x3F,0x3F,0x3F,0x3F,0x1F,0x1F,0x1F,0x1F,0x1F,0x1F,0x1F,0x1F,0x1F,0x3F,0x3F,0x3F,0x3F,0x3F,0x3F,0x3F,0x3F,0x7F,0x7F,0x7F,0x7F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x3F,0x0F,0x07,0x01,0x00,0x00,0x80,0xE0,0x70,0x3C,0x07,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x03,0x03,0x07,0x07,0x0F,0x0F,0x0F,0x1F,0x1F,0x1F,0x3F,0x3F,0x3F,0x3F,0x3F,0x3F,0x3F,0x3F,0x1F,0x1F,0x1F,0x1F,0x1F,0x0F,0x0F,0x0F,0x07,0x03,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x03,0x09,0x08,0x08,0x18,0x10,0x10,0x10,0x30,0x30,0x30,0x20,0x20,0x20,0x20,0x20,0x70,0x60,0x60,0x68,0x78,0x7C,0x60,0x60,0x60,0x60,0x60,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x30,0x30,0x10,0x10,0x10,0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00


  9. Electronic2050

    Electronic2050 New Member

    Joined:
    Apr 28, 2007
    Messages:
    37
    Likes:
    0
    Location:
    Iran
    hi Jason
    thanks for your help
    have you any example program that it use of Mikroc GLCD code generator for
    using with GLCD.c and logo function in this Thread.
    how you use of this code in logo function the mikroc generate this code for me
    PHP:

    // ------------------------------------------------------
    // GLCD Picture name: SYMS3.BMP
    // GLCD Model: KS0108 128x64
    // ------------------------------------------------------

    unsigned char const SYMS3_BMP[1024] = {
       0,  0,  0,192,  0,  0,  0,  0,192,  0,  0,128, 64, 64, 64, 64,
       0,  0,128, 64, 64,128,128,  0,  0,  0,  0, 64,248, 68, 68,  4,
      64, 64, 64,128,  0,  0,  0,192, 64, 64, 64, 64,128, 64, 64, 64,
      64,128,  0,196,  0,  0,252,  0,  0,196,  0,  0,  0,  0, 64, 64,
      64,128,  0,  0,128,128, 64,  0,  0,  0,  0,  0,128, 64, 64, 64,
      64,192,  0,  0,  0,128, 64,  0,192, 64, 64, 64, 64,128, 64, 64,
      64, 64,128,  0,252, 64, 64, 64,128,  0,  0,  0,128, 64, 64, 64,
     128,  0,  0,  0,252,  0,  0,128, 64, 64, 64, 64,  0,  0,  0,  0,
       0,  0,  0, 15, 16, 16, 16, 16, 31,  0,  0,  9, 18, 18, 12,  0,
       0, 15, 18, 18, 18, 18, 11,  2,  0,  0,  0,  0, 31,  0,  0, 12,
      18, 17, 17, 31,  0,  0,  0, 31,  0,  0,  0,  0, 31,  0,  0,  0,
       0, 31,  0, 31,  0,  0, 31,  0,  0, 31,  0,  0,  0, 12, 18, 17,
      17, 31,  0,  0, 31,  0,  0,  0,  0,  0,  0,  0,  9, 18, 18, 12,
       0,129,198, 56,  6,  1,  0,  0, 31,  0,  0,  0,  0, 31,  0,  0,
       0,  0, 31,  0, 31, 16, 16, 16,  8,  7,  0,  0, 15, 16, 16, 16,
       8,  7,  0,  0, 31,  0,  0,  9, 18, 18, 12,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0, 64,224,
     240,240, 96,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,240,248,248,240,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,224,160, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32,
      32, 32, 32, 32, 32,160,224,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,192,224,112, 48, 56,248,252,252,254,254,252,
     249,128,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,255,255,255,255,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0, 48,248,252,
     252,252,248, 56,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,255,  0,  1,  2,  4,136,208, 96, 64, 64, 64, 64, 64, 64, 96,
     208,136,  4,  2,  1,  0,255,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0, 31, 31,  0,  0,252,255,255,255,255,199,  1,
       3,  7,  6, 14, 12, 28, 24, 24,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,128,192,192,224,240,240,248,248,252,255,255,255,255,
     254,252,248,248,240,240,224,192,192,128,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,128,  0,255,255,
     255,192,192,192,192,192,192,192,192,  0,  0,  0,  0,  0,  0,  0,
       0, 31, 24, 28, 22, 19, 17, 16, 16, 16, 16, 16, 16, 16, 16, 16,
      16, 17, 19, 22, 28, 24, 31,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,192,248,255,127, 31,  7,  3,  7, 31,255,
     254,248,192,  0,  0,  0,  0,  0,  0,  0,  0,  0,112,120,124, 62,
      62, 63, 31, 31, 31, 15, 15, 15,  7,  7,  7,  3,255,255,255,255,
       3,  3,  7,  7,  7, 15, 15, 15, 31, 31, 31, 63, 62, 62,124,120,
     112,  0,  0,  0,  0,  0,128,240,252, 28,  6,  7,  3,  0, 31, 31,
      31, 25, 25, 25, 25, 25, 25, 25, 25, 24, 24,248,248,240,128,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0, 16, 30, 31,  7,  1,  0,  0,  0,  0,  0,  0,  0,
       7, 31, 31, 28,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,128,128,192,224,255,255,127,255,
     240,224,192,128,128,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  3, 31, 62,248,240,192,128,128,  0,  0,
       0,  0,  0,  0,  0,  0,  0,128,192,224,240,112,  7, 63,255,252,
     224, 96, 96,112, 48,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  3,  3,  1,  1,  0,  0,  0,  0,
       0,  1,  1,  3,  3,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  1,  1,  1,  3,  3,  3,
       6,  6,  6,  6,  7,  7,  3,  3,  3,  1,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0
    };

    thanks.

  10. AtomSoft

    AtomSoft Well-Known Member

    Joined:
    Feb 7, 2008
    Messages:
    5,670
    Likes:
    41
    Location:
    Brooklyn, NY US
    i assume you are using Pommies code if so just add the width and height and use:

    PutLogo command

    this is his PutLogo
    Code (text):

    void PutLogo(static char rom *logo){
    unsigned char w,h,bitcount,Byte;
        w=*logo++;
        h=*logo++;
        bitcount=0;
        do{
            for(i=0;i<w;i++){
                if(bitcount==0){
                    bitcount=8;
                    Byte=*logo++;
                }
                if(Byte&1) plot(XPos,YPos);
                XPos++;
                Byte/=2;
                bitcount--;
            }
            YPos++;
            XPos-=w;
        }while(--h);
    }

    as you can see it takes the first 2 bytes in the array as the Width and Height:

    Code (text):

        w=*logo++;
        h=*logo++;

    Width first Height second. Then you call it like:
    Code (text):

        SetPos(0,0);
        PutLogo((rom char*)SYMS3_BMP);

    so the new array should look like:
    Code (text):

    unsigned char const SYMS3_BMP[1026] = {
       128,64,
       0,  0,  0,192,  0,  0,  0,  0,192,  0,  0,128, 64, 64, 64, 64,
       0,  0,128, 64, 64,128,128,  0,  0,  0,  0, 64,248, 68, 68,  4,
      64, 64, 64,128,  0,  0,  0,192, 64, 64, 64, 64,128, 64, 64, 64,
      64,128,  0,196,  0,  0,252,  0,  0,196,  0,  0,  0,  0, 64, 64,
      64,128,  0,  0,128,128, 64,  0,  0,  0,  0,  0,128, 64, 64, 64,
      64,192,  0,  0,  0,128, 64,  0,192, 64, 64, 64, 64,128, 64, 64,
      64, 64,128,  0,252, 64, 64, 64,128,  0,  0,  0,128, 64, 64, 64,
     128,  0,  0,  0,252,  0,  0,128, 64, 64, 64, 64,  0,  0,  0,  0,
       0,  0,  0, 15, 16, 16, 16, 16, 31,  0,  0,  9, 18, 18, 12,  0,
       0, 15, 18, 18, 18, 18, 11,  2,  0,  0,  0,  0, 31,  0,  0, 12,
      18, 17, 17, 31,  0,  0,  0, 31,  0,  0,  0,  0, 31,  0,  0,  0,
       0, 31,  0, 31,  0,  0, 31,  0,  0, 31,  0,  0,  0, 12, 18, 17,
      17, 31,  0,  0, 31,  0,  0,  0,  0,  0,  0,  0,  9, 18, 18, 12,
       0,129,198, 56,  6,  1,  0,  0, 31,  0,  0,  0,  0, 31,  0,  0,
       0,  0, 31,  0, 31, 16, 16, 16,  8,  7,  0,  0, 15, 16, 16, 16,
       8,  7,  0,  0, 31,  0,  0,  9, 18, 18, 12,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0, 64,224,
     240,240, 96,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,240,248,248,240,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,224,160, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32,
      32, 32, 32, 32, 32,160,224,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,192,224,112, 48, 56,248,252,252,254,254,252,
     249,128,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,255,255,255,255,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0, 48,248,252,
     252,252,248, 56,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,255,  0,  1,  2,  4,136,208, 96, 64, 64, 64, 64, 64, 64, 96,
     208,136,  4,  2,  1,  0,255,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0, 31, 31,  0,  0,252,255,255,255,255,199,  1,
       3,  7,  6, 14, 12, 28, 24, 24,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,128,192,192,224,240,240,248,248,252,255,255,255,255,
     254,252,248,248,240,240,224,192,192,128,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,128,  0,255,255,
     255,192,192,192,192,192,192,192,192,  0,  0,  0,  0,  0,  0,  0,
       0, 31, 24, 28, 22, 19, 17, 16, 16, 16, 16, 16, 16, 16, 16, 16,
      16, 17, 19, 22, 28, 24, 31,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,192,248,255,127, 31,  7,  3,  7, 31,255,
     254,248,192,  0,  0,  0,  0,  0,  0,  0,  0,  0,112,120,124, 62,
      62, 63, 31, 31, 31, 15, 15, 15,  7,  7,  7,  3,255,255,255,255,
       3,  3,  7,  7,  7, 15, 15, 15, 31, 31, 31, 63, 62, 62,124,120,
     112,  0,  0,  0,  0,  0,128,240,252, 28,  6,  7,  3,  0, 31, 31,
      31, 25, 25, 25, 25, 25, 25, 25, 25, 24, 24,248,248,240,128,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0, 16, 30, 31,  7,  1,  0,  0,  0,  0,  0,  0,  0,
       7, 31, 31, 28,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,128,128,192,224,255,255,127,255,
     240,224,192,128,128,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  3, 31, 62,248,240,192,128,128,  0,  0,
       0,  0,  0,  0,  0,  0,  0,128,192,224,240,112,  7, 63,255,252,
     224, 96, 96,112, 48,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  3,  3,  1,  1,  0,  0,  0,  0,
       0,  1,  1,  3,  3,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  1,  1,  1,  3,  3,  3,
       6,  6,  6,  6,  7,  7,  3,  3,  3,  1,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0
    };


    Last edited: Feb 17, 2009
  11. Electronic2050

    Electronic2050 New Member

    Joined:
    Apr 28, 2007
    Messages:
    37
    Likes:
    0
    Location:
    Iran
    dear jason, i use of mikroc glcd code generator and i use of your suggestions but the MPLAB c18 have error with this change.
    my code is thus:
    Code (text):

    #include <p18f452.h>
    #include <GLCD.h>

    #pragma config WDT = OFF, LVP = OFF, OSC = HS

    unsigned char const SYMS[1024];

    void main ()
    {
        Init_GLCD();
        ClearScreen();

        SetPos(0,0);
        PutLogo((rom char*)SYMS);
    }

    unsigned char const SYMS[1024] = {
       127,64,
       0,  0,  0,192,  0,  0,  0,  0,192,  0,  0,128, 64, 64, 64, 64,
       0,  0,128, 64, 64,128,128,  0,  0,  0,  0, 64,248, 68, 68,  4,
      64, 64, 64,128,  0,  0,  0,192, 64, 64, 64, 64,128, 64, 64, 64,
      64,128,  0,196,  0,  0,252,  0,  0,196,  0,  0,  0,  0, 64, 64,
      64,128,  0,  0,128,128, 64,  0,  0,  0,  0,  0,128, 64, 64, 64,
      64,192,  0,  0,  0,128, 64,  0,192, 64, 64, 64, 64,128, 64, 64,
      64, 64,128,  0,252, 64, 64, 64,128,  0,  0,  0,128, 64, 64, 64,
     128,  0,  0,  0,252,  0,  0,128, 64, 64, 64, 64,  0,  0,  0,  0,
       0,  0,  0, 15, 16, 16, 16, 16, 31,  0,  0,  9, 18, 18, 12,  0,
       0, 15, 18, 18, 18, 18, 11,  2,  0,  0,  0,  0, 31,  0,  0, 12,
      18, 17, 17, 31,  0,  0,  0, 31,  0,  0,  0,  0, 31,  0,  0,  0,
       0, 31,  0, 31,  0,  0, 31,  0,  0, 31,  0,  0,  0, 12, 18, 17,
      17, 31,  0,  0, 31,  0,  0,  0,  0,  0,  0,  0,  9, 18, 18, 12,
       0,129,198, 56,  6,  1,  0,  0, 31,  0,  0,  0,  0, 31,  0,  0,
       0,  0, 31,  0, 31, 16, 16, 16,  8,  7,  0,  0, 15, 16, 16, 16,
       8,  7,  0,  0, 31,  0,  0,  9, 18, 18, 12,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0, 64,224,
     240,240, 96,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,240,248,248,240,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,224,160, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32,
      32, 32, 32, 32, 32,160,224,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,192,224,112, 48, 56,248,252,252,254,254,252,
     249,128,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,255,255,255,255,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0, 48,248,252,
     252,252,248, 56,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,255,  0,  1,  2,  4,136,208, 96, 64, 64, 64, 64, 64, 64, 96,
     208,136,  4,  2,  1,  0,255,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0, 31, 31,  0,  0,252,255,255,255,255,199,  1,
       3,  7,  6, 14, 12, 28, 24, 24,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,128,192,192,224,240,240,248,248,252,255,255,255,255,
     254,252,248,248,240,240,224,192,192,128,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,128,  0,255,255,
     255,192,192,192,192,192,192,192,192,  0,  0,  0,  0,  0,  0,  0,
       0, 31, 24, 28, 22, 19, 17, 16, 16, 16, 16, 16, 16, 16, 16, 16,
      16, 17, 19, 22, 28, 24, 31,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,192,248,255,127, 31,  7,  3,  7, 31,255,
     254,248,192,  0,  0,  0,  0,  0,  0,  0,  0,  0,112,120,124, 62,
      62, 63, 31, 31, 31, 15, 15, 15,  7,  7,  7,  3,255,255,255,255,
       3,  3,  7,  7,  7, 15, 15, 15, 31, 31, 31, 63, 62, 62,124,120,
     112,  0,  0,  0,  0,  0,128,240,252, 28,  6,  7,  3,  0, 31, 31,
      31, 25, 25, 25, 25, 25, 25, 25, 25, 24, 24,248,248,240,128,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0, 16, 30, 31,  7,  1,  0,  0,  0,  0,  0,  0,  0,
       7, 31, 31, 28,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,128,128,192,224,255,255,127,255,
     240,224,192,128,128,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  3, 31, 62,248,240,192,128,128,  0,  0,
       0,  0,  0,  0,  0,  0,  0,128,192,224,240,112,  7, 63,255,252,
     224, 96, 96,112, 48,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  3,  3,  1,  1,  0,  0,  0,  0,
       0,  1,  1,  3,  3,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  1,  1,  1,  3,  3,  3,
       6,  6,  6,  6,  7,  7,  3,  3,  3,  1,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
    };

    MPLAB c18 errors after compile:
    Code (text):

    ----------------------------------------------------------------------
    Debug build of project `G:\GLCD\GLCDtest.mcp' started.
    Preprocessor symbol `__DEBUG' is defined.
    Wed Feb 18 15:28:45 2009
    ----------------------------------------------------------------------
    Clean: Deleting intermediary and output files.
    Clean: Deleted file "G:\GLCD\GLCDtest.o".
    Clean: Done.
    Executing: "C:\MCC18\bin\mcc18.exe" -p=18F452 /i"C:\mcc18\h" "GLCDtest.c" -fo="GLCDtest.o" -D__DEBUG -Ou- -Ot- -Ob- -Op- -Or- -Od- -Opa-
    Executing: "C:\MCC18\bin\mcc18.exe" -p=18F452 /i"C:\mcc18\h" "main.c" -fo="main.o" -D__DEBUG -Ou- -Ot- -Ob- -Op- -Or- -Od- -Opa-
    G:\GLCD\main.c:102:Error [1218] extraneous initializer values
    Halting build on first failure as requested.
    ----------------------------------------------------------------------
    Debug build of project `G:\GLCD\GLCDtest.mcp' failed.
    Preprocessor symbol `__DEBUG' is defined.
    Wed Feb 18 15:28:45 2009
    ----------------------------------------------------------------------
    BUILD FAILED


    i change this lines according with your code :
    Code (text):
    unsigned char const SYMS[[COLOR="Red"]1024[/COLOR]] = {
    to
    Code (text):
    unsigned char const SYMS[[COLOR="Red"]1026[/COLOR]] = {
    but with this change my compiler have hang state and i most close the mcc18-traditional.exe from task manager to start again.
    can you say me what is problem.
    thanks

  12. AtomSoft

    AtomSoft Well-Known Member

    Joined:
    Feb 7, 2008
    Messages:
    5,670
    Likes:
    41
    Location:
    Brooklyn, NY US
    did you change the other one :

    Code (text):

    unsigned char const SYMS[1024];
     to
    unsigned char const SYMS[1026];

    EDIT if you want to You can do :

    Code (text):

    //Define the variable
    const rom unsigned char SYMS[1026];

    //Then when filling it with the data
    const rom unsigned char SYMS[1026] = {
       128,64,
       0,  0,  0,192,  0,  0,  0,  0,192,  0,  0,128, 64, 64, 64, 64,
       0,  0,128, 64, 64,128,128,  0,  0,  0,  0, 64,248, 68, 68,  4,
      64, 64, 64,128,  0,  0,  0,192, 64, 64, 64, 64,128, 64, 64, 64,
      64,128,  0,196,  0,  0,252,  0,  0,196,  0,  0,  0,  0, 64, 64,
      64,128,  0,  0,128,128, 64,  0,  0,  0,  0,  0,128, 64, 64, 64,
      64,192,  0,  0,  0,128, 64,  0,192, 64, 64, 64, 64,128, 64, 64,
      64, 64,128,  0,252, 64, 64, 64,128,  0,  0,  0,128, 64, 64, 64,
     128,  0,  0,  0,252,  0,  0,128, 64, 64, 64, 64,  0,  0,  0,  0,
       0,  0,  0, 15, 16, 16, 16, 16, 31,  0,  0,  9, 18, 18, 12,  0,
       0, 15, 18, 18, 18, 18, 11,  2,  0,  0,  0,  0, 31,  0,  0, 12,
      18, 17, 17, 31,  0,  0,  0, 31,  0,  0,  0,  0, 31,  0,  0,  0,
       0, 31,  0, 31,  0,  0, 31,  0,  0, 31,  0,  0,  0, 12, 18, 17,
      17, 31,  0,  0, 31,  0,  0,  0,  0,  0,  0,  0,  9, 18, 18, 12,
       0,129,198, 56,  6,  1,  0,  0, 31,  0,  0,  0,  0, 31,  0,  0,
       0,  0, 31,  0, 31, 16, 16, 16,  8,  7,  0,  0, 15, 16, 16, 16,
       8,  7,  0,  0, 31,  0,  0,  9, 18, 18, 12,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0, 64,224,
     240,240, 96,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,240,248,248,240,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,224,160, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32,
      32, 32, 32, 32, 32,160,224,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,192,224,112, 48, 56,248,252,252,254,254,252,
     249,128,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,255,255,255,255,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0, 48,248,252,
     252,252,248, 56,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,255,  0,  1,  2,  4,136,208, 96, 64, 64, 64, 64, 64, 64, 96,
     208,136,  4,  2,  1,  0,255,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0, 31, 31,  0,  0,252,255,255,255,255,199,  1,
       3,  7,  6, 14, 12, 28, 24, 24,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,128,192,192,224,240,240,248,248,252,255,255,255,255,
     254,252,248,248,240,240,224,192,192,128,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,128,  0,255,255,
     255,192,192,192,192,192,192,192,192,  0,  0,  0,  0,  0,  0,  0,
       0, 31, 24, 28, 22, 19, 17, 16, 16, 16, 16, 16, 16, 16, 16, 16,
      16, 17, 19, 22, 28, 24, 31,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,192,248,255,127, 31,  7,  3,  7, 31,255,
     254,248,192,  0,  0,  0,  0,  0,  0,  0,  0,  0,112,120,124, 62,
      62, 63, 31, 31, 31, 15, 15, 15,  7,  7,  7,  3,255,255,255,255,
       3,  3,  7,  7,  7, 15, 15, 15, 31, 31, 31, 63, 62, 62,124,120,
     112,  0,  0,  0,  0,  0,128,240,252, 28,  6,  7,  3,  0, 31, 31,
      31, 25, 25, 25, 25, 25, 25, 25, 25, 24, 24,248,248,240,128,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0, 16, 30, 31,  7,  1,  0,  0,  0,  0,  0,  0,  0,
       7, 31, 31, 28,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,128,128,192,224,255,255,127,255,
     240,224,192,128,128,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  3, 31, 62,248,240,192,128,128,  0,  0,
       0,  0,  0,  0,  0,  0,  0,128,192,224,240,112,  7, 63,255,252,
     224, 96, 96,112, 48,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  3,  3,  1,  1,  0,  0,  0,  0,
       0,  1,  1,  3,  3,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  1,  1,  1,  3,  3,  3,
       6,  6,  6,  6,  7,  7,  3,  3,  3,  1,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
       0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
    };



    Last edited: Feb 18, 2009
  13. Electronic2050

    Electronic2050 New Member

    Joined:
    Apr 28, 2007
    Messages:
    37
    Likes:
    0
    Location:
    Iran
    i change that and haven't any error but it don't display my pic on
    GLCD in proteus, also i change the "Inverse picture" in glcd code generator but
    it show mixed picture
    in attachment i put my files includes(C sourec and proteus)
    can you revision it
    thanks.


    Attached Files:

  14. AtomSoft

    AtomSoft Well-Known Member

    Joined:
    Feb 7, 2008
    Messages:
    5,670
    Likes:
    41
    Location:
    Brooklyn, NY US
    ok ill check it out now

    Missing GLCD.H

    Last edited: Feb 18, 2009
  15. Electronic2050

    Electronic2050 New Member

    Joined:
    Apr 28, 2007
    Messages:
    37
    Likes:
    0
    Location:
    Iran
    thanks jason

  16. AtomSoft

    AtomSoft Well-Known Member

    Joined:
    Feb 7, 2008
    Messages:
    5,670
    Likes:
    41
    Location:
    Brooklyn, NY US
    No problem just post the missing file it should be here:

    "C:\MCC18\h\GLCD.h"

  17. AtomSoft

    AtomSoft Well-Known Member

    Joined:
    Feb 7, 2008
    Messages:
    5,670
    Likes:
    41
    Location:
    Brooklyn, NY US
    based on proteus i made this header for you :
    Code (text):


    #include <p18f452.h>

    /**********************************************
            Graphical LCD Definitions
    **********************************************/
    #define GLCD_Data   PORTD

    #define b_GLCD_GCS1 LATCbits.LATC3
    #define b_GLCD_GCS2 LATCbits.LATC4

    #define b_GLCD_RS   LATCbits.LATC0
    #define b_GLCD_RW   LATCbits.LATC1
    #define b_GLCD_E    LATCbits.LATC2

    #define b_GLCD_On   LATCbits.LATC5
    #define b_GLCD_BL   LATBbits.LATB5

    #define TRIS_Data    TRISD
    #define b_TRIS_GCS1  TRISCbits.TRISC3
    #define b_TRIS_GCS2  TRISCbits.TRISC4

    #define b_TRIS_RS    TRISCbits.TRISC0 //RS
    #define b_TRIS_RW    TRISCbits.TRISC1 //RW
    #define b_TRIS_E     TRISCbits.TRISC2 //E

    #define b_TRIS_On    TRISCbits.TRISC5 //RST
    #define b_TRIS_BL    TRISBbits.TRISB5 //backlight


    /**********************************************
            Prototypes
    **********************************************/
    void Delay(void);
    unsigned char GLCD_Read(void);
    void Wait_Not_Busy(void);
    void GLCD_Write_Cmd(unsigned char data);
    void GLCD_Write_Data (unsigned char data);
    void ClearScreen(void);
    void Init_GLCD(void);
    void PutChar(unsigned char data);
    unsigned char GLCD_Read_Data(void);
    void SetPos(unsigned char x,unsigned char y);
    void WritePosition(void);
    void plot(unsigned char x,unsigned char y);
    void hline(unsigned char x,unsigned char y1,unsigned char y2);
    void vline(unsigned char x1,unsigned char x2,unsigned char y);
    void box(unsigned char x1,unsigned char y1,unsigned char x2,unsigned char y2);
    void PutMessage(static char rom *Message);
    void PutLogo(static char rom *logo);




    Last edited: Feb 18, 2009
  18. Electronic2050

    Electronic2050 New Member

    Joined:
    Apr 28, 2007
    Messages:
    37
    Likes:
    0
    Location:
    Iran
    sorry,yes certainly :)
    thanks too.


    Attached Files:

    • GLCD.h
      File size:
      1.3 KB
      Views:
      239
  19. AtomSoft

    AtomSoft Well-Known Member

    Joined:
    Feb 7, 2008
    Messages:
    5,670
    Likes:
    41
    Location:
    Brooklyn, NY US
    add this to your code of GLCDtest.c
    Code (text):

    void loadimg(rom char *image)
    {
        char i,x,y;

        int z = 0;
        int len = 1024;
        while(z != len)
        {

        for(i=0;i<8;i++){

            b_GLCD_GCS1 = 1;
            b_GLCD_GCS2 = 0;
            y = 0xB8 + i;
            GLCD_Write_Cmd(y);
            GLCD_Write_Cmd(0x40);

            for(x=0;x<64;x++){
                if(z == len)
                    break;
                GLCD_Write_Data(*image);
                image++;
                z++;
            }

            b_GLCD_GCS1 = 0;
            b_GLCD_GCS2 = 1;
            y = 0xB8 + i;
            GLCD_Write_Cmd(y);
            GLCD_Write_Cmd(0x40);

            for(x=0;x<64;x++){
                if(z == len)
                    break;
                GLCD_Write_Data(*image);
                image++;
                z++;
            }

            if(z == len)
                break;
        }
        if(z == len)
            break;

        }
    }

    and call it like
    Code (text):

        loadimg((rom char*)SYMS);


  20. Electronic2050

    Electronic2050 New Member

    Joined:
    Apr 28, 2007
    Messages:
    37
    Likes:
    0
    Location:
    Iran
    ok i test it now.

  21. AtomSoft

    AtomSoft Well-Known Member

    Joined:
    Feb 7, 2008
    Messages:
    5,670
    Likes:
    41
    Location:
    Brooklyn, NY US

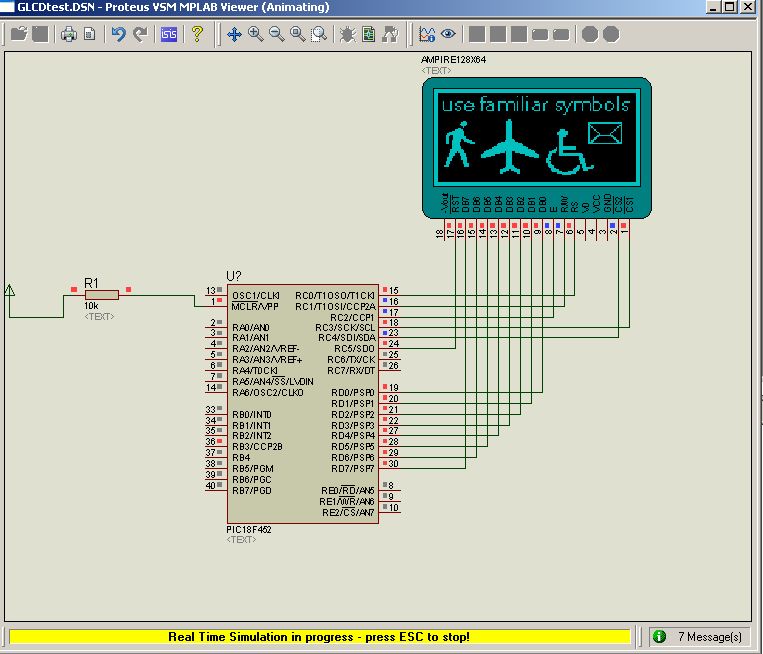

    Here ya go i hope its what cha need :D

    [​IMG]


    Attached Files:

Share This Page
