Discussion in 'General Electronics Chat' started by camerart, Nov 7, 2017.

  1. camerart

    camerart Active Member

    Joined:
    Jun 12, 2008
    Messages:
    1,369
    Likes:
    11
    Location:
    Dorset UK.
    Hi,

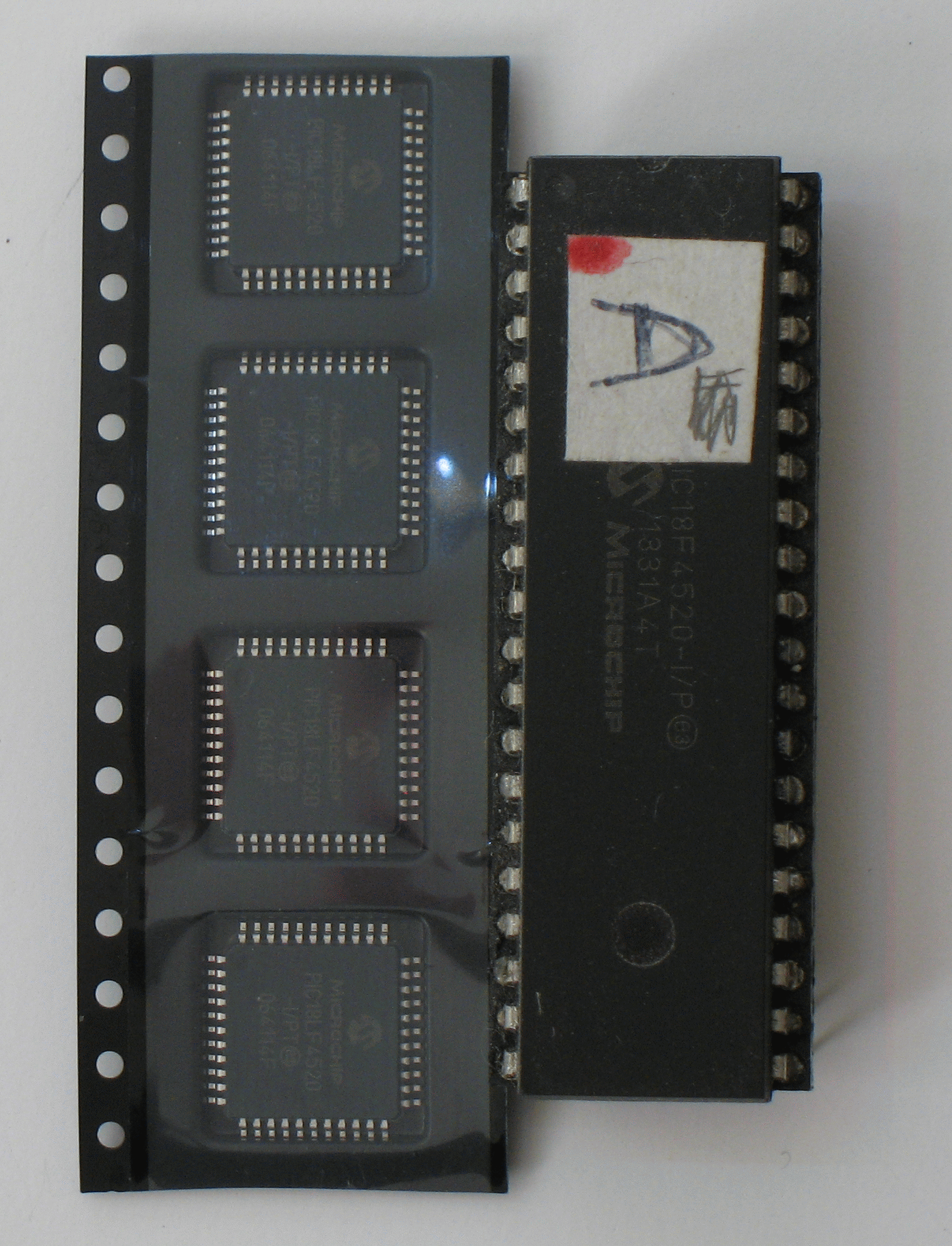

    I am making a PCB with a PIC onboard. Previously, I have used a 40PIN 18F4520 for projects, but lately I've ventured into Surface mount components. I ordered some SM 18LF4520 for the job, looking as carefully as I could at 'all' of the specifications. I didn't notice the actual size. Here's a photo of the difference. We'll soon find out if I can solder them or even make those fine tracks on the PCB.

    Likewise, my son ordered a brighter light bulb for his lamp, Here's a photo of his mistake too:wideyed:
    Camerart.


    Attached Files:

  2. Inquisitive

    Inquisitive Super Moderator

    Joined:
    Aug 31, 2011
    Messages:
    933
    Likes:
    86
    Location:
    Georgia, USA
    Dave Jones will show you how to solder it. Look at 13:58 of the video.


  3. jpanhalt

    jpanhalt Well-Known Member Most Helpful Member

    Joined:
    Jun 21, 2006
    Messages:
    5,987
    Likes:
    511
    Location:
    Cleveland, OH, USA
    ONLINE
    It's not the size that concerns me when I order, it is the pitch of the pins -- if any -- that I look at. I do not go below 0.5 mm and prefer 0.65 mm or larger. Leadless is OK so long as there is exposed metal on the sides of the chip to wick the solder, e.g., 16-QFN. One problem apart from lead/contact spacing is heat sinks in the middle. They can be difficult to say the least to hand solder.

    Here is a useful reference for Microchip packages: http://ww1.microchip.com/downloads/en/PackagingSpec/00000049BQ.pdf

    While the data therein may apply to other manufacturers, it is still advised to check for a specific chip.

    John

  4. dave

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    -
    Likes:
    0



  5. tomizett

    tomizett Active Member

    Joined:
    Aug 11, 2013
    Messages:
    428
    Likes:
    46
    Location:
    UK

    We've all done it. It's a standing joke at work that I'll order something that looks right in the picture but is completely the wrong size.
    SOT23 vs. SOT232 is a classic...

  6. jpanhalt

    jpanhalt Well-Known Member Most Helpful Member

    Joined:
    Jun 21, 2006
    Messages:
    5,987
    Likes:
    511
    Location:
    Cleveland, OH, USA
    ONLINE
    It has not been mentioned yet in this thread, but adapters are available for many of the surface mount sizes. One brand Schmartboard (http://schmartboard.com/ ), despite the hokey name, has milled grooves for what's left of the leads. They facilitate alignment and soldering. I have no relationship to that company, but I have used its boards for QFN chips.

    • Informative Informative x 2
  7. schmitt trigger

    schmitt trigger Active Member

    Joined:
    May 24, 2009
    Messages:
    911
    Likes:
    85
    The key to soldering small SMT components ARE THE TOOLS.
    Specifically, a good temperature controlled soldering iron with a very fine tip, thin gage solder, and a sturdy board vise to hold it steadily while you manipulate it. Don't forget the tweezers.

    And....unless you have an eagle's sharp eyesight, a good illuminated magnifying glass is also a must. I cannot overemphasize the fact that the magnifier has to have good optics, there are many cheap e-bay stuff that have terrible optical characteristics which render them useless.
    An option is an USB microscope. Google the term.

  8. camerart

    camerart Active Member

    Joined:
    Jun 12, 2008
    Messages:
    1,369
    Likes:
    11
    Location:
    Dorset UK.
    Hi T,
    It would be handy if there was something in the image to help guage the size.
    C

  9. camerart

    camerart Active Member

    Joined:
    Jun 12, 2008
    Messages:
    1,369
    Likes:
    11
    Location:
    Dorset UK.
    Hi all,
    I watched the video, very handy.
    Previously, I have a USB microscope, plus a work station with hot air blower, also some solder paste.
    I was hoping to first clean the PCB, then try to gauge the correct amount of paste, then heat till the component drops through the paste.
    C.

  10. ci139

    ci139 Active Member

    Joined:
    Apr 12, 2012
    Messages:
    469
    Likes:
    37
    ??? or gets blown off by the hot gust

  11. camerart

    camerart Active Member

    Joined:
    Jun 12, 2008
    Messages:
    1,369
    Likes:
    11
    Location:
    Dorset UK.
    Hi C,
    I normally hold components still with a long pin or similar. I think in production they're held by adhesive.
    C.

  12. ci139

    ci139 Active Member

    Joined:
    Apr 12, 2012
    Messages:
    469
    Likes:
    37
    yes, i just recall how difficult is with only two hands to keep all components at the position (relative to PCB glass fiber surface elevated pads) provide the flux and do a precision solder on leads you barely guess/distinguish the v(x,y,z)-s
    https://hackaday.com/2014/01/05/testing-the-limits-of-home-pcb-etching/
    where i live the access to HNO₃ might be difficult (with no much chemist experience) + i won't even consider setting up an extended fire risk at my house/apartment

  13. camerart

    camerart Active Member

    Joined:
    Jun 12, 2008
    Messages:
    1,369
    Likes:
    11
    Location:
    Dorset UK.
    Hi C,
    I've never used solder paste with such small components, but hopefully, I will only need two hands (my full complement) one for the pin and one for the hot air blower, having cleaned the PCb with liquid flux beforehand.
    I'll let you know how I get on. I'm still struggling routing the PCb at the moment.
    C.

  14. throbscottle

    throbscottle Well-Known Member

    Joined:
    Feb 1, 2012
    Messages:
    1,802
    Likes:
    113
    Location:
    Nuneaton, Warwickshire, UK
    It's a lot less scary once you've done it a few times. Use the Flux, Luke...

  15. camerart

    camerart Active Member

    Joined:
    Jun 12, 2008
    Messages:
    1,369
    Likes:
    11
    Location:
    Dorset UK.
    Hi T,
    Opened first thing in the morning, and started to search for 'Flux Luke' in case it was the flux you use. Then the penny dropped;)
    C.

  16. kubeek

    kubeek Well-Known Member

    Joined:
    Mar 11, 2006
    Messages:
    1,502
    Likes:
    188
    Location:
    Prague, Czechia (not Chechnya)
    wow, a 135w CFL bulb should be comparable to about 700w incandescent i guess. That is way too much light for just about any room.

  17. camerart

    camerart Active Member

    Joined:
    Jun 12, 2008
    Messages:
    1,369
    Likes:
    11
    Location:
    Dorset UK.
    Hi K,
    After further reading, it was explained that the bulb is not tuned for full capacity, but set to 65W.
    It is bright.
    C.

  18. camerart

    camerart Active Member

    Joined:
    Jun 12, 2008
    Messages:
    1,369
    Likes:
    11
    Location:
    Dorset UK.
    Hi Ci,
    After carefully soldering the Barometer modules, and removing the holding down pin, I noticed that the solder wasn't quite 'soaked' so I aimed the hot air at it again, without holding. When the solder melted, the module actually moved towards the jet, and centralised better.
    C.

  19. ci139

    ci139 Active Member

    Joined:
    Apr 12, 2012
    Messages:
    469
    Likes:
    37
    we can suppose there are two factors behind it (•) the melted first direction having least resistance/drag (••) the net surface tension combined with the weight of the chip with the number of pins and the symmetry of the chip ?? also the intensity of the air flow - - - just a best guess

  20. throbscottle

    throbscottle Well-Known Member

    Joined:
    Feb 1, 2012
    Messages:
    1,802
    Likes:
    113
    Location:
    Nuneaton, Warwickshire, UK
    Pretty sure it's mainly surface tension that does it.

  21. camerart

    camerart Active Member

    Joined:
    Jun 12, 2008
    Messages:
    1,369
    Likes:
    11
    Location:
    Dorset UK.
    Hi,
    I've read a few times that it is surface tension, but I was surprised that it moved towards the jet, as I was aiming at the side. I didn't actually think the 'far' side PADs solder would melt.
    C.
