Discussion in 'Robotics & Mechatronics' started by William At MyBlueRoom, Nov 26, 2006.

  1. Souper man

    Souper man Guest

    ONLINE
    Also, I was wondering if you could pop over on my PIC question sheet. Look for the Help with PIC thread

  2. blueroomelectronics

    blueroomelectronics Well-Known Member

    Joined:
    Jan 21, 2007
    Messages:
    12,536
    Likes:
    168
    Location:
    Toronto, Canada
    Mongoose PCB complete, sent to PCB mfgr to get some made. Then back to the machine shop for the metalwork and fitting to the PCBs. Looks like Mongoose will be ready for end of June!

  3. Souper man

    Souper man Guest

    ONLINE
    Hooray! Looks amazing

  4. dave

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    -
    Likes:
    0



  5. blueroomelectronics

    blueroomelectronics Well-Known Member

    Joined:
    Jan 21, 2007
    Messages:
    12,536
    Likes:
    168
    Location:
    Toronto, Canada

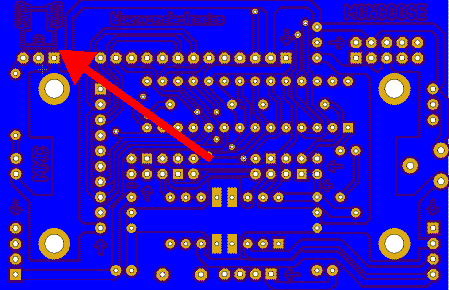

    I added a fancy doodle to the back ;)

    PS and thanks for the link, I liked the cake page too.

    Here's a fun link I like http://knuttz.net/


    Attached Files:

    Last edited: Jun 13, 2007
  6. blueroomelectronics

    blueroomelectronics Well-Known Member

    Joined:
    Jan 21, 2007
    Messages:
    12,536
    Likes:
    168
    Location:
    Toronto, Canada
    A cutaway view of the Mongoose showing the optical gear sensors.
    [​IMG]

  7. bloody-orc

    bloody-orc New Member

    Joined:
    Aug 23, 2004
    Messages:
    723
    Likes:
    4
    Location:
    Estonia
    hehh...
    Nice

    But when can we expect the real bot to be ready? when will the boards arrive?

  8. blueroomelectronics

    blueroomelectronics Well-Known Member

    Joined:
    Jan 21, 2007
    Messages:
    12,536
    Likes:
    168
    Location:
    Toronto, Canada
    The first boards this Thursday, metalwork will have to be modified to match them.
    Just to give you an idea of how small it is, the outside diameter of the wheels is 58mm. (~2.3")

  9. bloody-orc

    bloody-orc New Member

    Joined:
    Aug 23, 2004
    Messages:
    723
    Likes:
    4
    Location:
    Estonia
    that makes the total robots length 10 cm right... That's not bad. about the size of a BoeBot although 50x better. Good luck with it!

  10. blueroomelectronics

    blueroomelectronics Well-Known Member

    Joined:
    Jan 21, 2007
    Messages:
    12,536
    Likes:
    168
    Location:
    Toronto, Canada
    Well the PCBs are done and look great. One error (seems I usually have one on first run PCBs) but of course it's fixable. Have to cut a trace on the PCB (I'll do this with a dremel to all the rev A boards) and a short jumper made of a capacitor lead has to be added. Else they're checking out fine so far. Went to the metal shop and they suggested BLACK ANODIZE instead of Silver Anodize (the green parts pictured below). Sounds good to me.
    Two choices of PIC, the powerful 18F2525 or the new 16F886 both work nicely in the design. Choose the one that fits your needs best.
    Mongoose dimensions in mm 58H x 115W x 119L
    [​IMG]

    Last edited: Jun 21, 2007
  11. bloody-orc

    bloody-orc New Member

    Joined:
    Aug 23, 2004
    Messages:
    723
    Likes:
    4
    Location:
    Estonia
    Nice. BTW could I see the schematic or pinouts of the sockets or whatever. Maybe I can even get an AVR into that "PIC" slot ;)

  12. blueroomelectronics

    blueroomelectronics Well-Known Member

    Joined:
    Jan 21, 2007
    Messages:
    12,536
    Likes:
    168
    Location:
    Toronto, Canada
  13. bloody-orc

    bloody-orc New Member

    Joined:
    Aug 23, 2004
    Messages:
    723
    Likes:
    4
    Location:
    Estonia
    couldn't you have done that just a little more smaller? I can almost see it... (the text). If you don't want to make it public , you know my E-Mail ;)

  14. blueroomelectronics

    blueroomelectronics Well-Known Member

    Joined:
    Jan 21, 2007
    Messages:
    12,536
    Likes:
    168
    Location:
    Toronto, Canada
    Since I publish all the schematics here's the PDF. I just wanted to scale it to fit the forums.


    Attached Files:

  15. bloody-orc

    bloody-orc New Member

    Joined:
    Aug 23, 2004
    Messages:
    723
    Likes:
    4
    Location:
    Estonia
    Thanks a lot. It's a lot better ;)
    PS you celebrating Mid Summer Day also today? With BIG campfires (10m tall) and jumping over smaller ones (2m ones).
    My favorite holiday.

  16. Souper man

    Souper man Guest

    ONLINE
    2m? thats around 6ft! You wouldnt jump over them, you would jump through them!

    (well im super short and cant jump so what do i know lol)

    Bill where did you buy the tamya double gearbox? I want to buy one for one of my future robots?

  17. bloody-orc

    bloody-orc New Member

    Joined:
    Aug 23, 2004
    Messages:
    723
    Likes:
    4
    Location:
    Estonia
    Tamya store ;)
    And yes, sry. I did jump through them. Forgot to add that.

  18. blueroomelectronics

    blueroomelectronics Well-Known Member

    Joined:
    Jan 21, 2007
    Messages:
    12,536
    Likes:
    168
    Location:
    Toronto, Canada
    The Mongoose production model is only two weeks away. Here's a photo with the PCB on the prototype chassis with the LCD running.
    [​IMG]

  19. bloody-orc

    bloody-orc New Member

    Joined:
    Aug 23, 2004
    Messages:
    723
    Likes:
    4
    Location:
    Estonia
    nice!!! Very nice indeed... As I see (from the other thread) you are already bored and want to take it to the "next level" ;) Neat

    now: VIDEO! VIDEO! VIDEO! ;):p:) I'm not too demanding now, am I? :D

  20. blueroomelectronics

    blueroomelectronics Well-Known Member

    Joined:
    Jan 21, 2007
    Messages:
    12,536
    Likes:
    168
    Location:
    Toronto, Canada
    Bored never, always thinking what's next. And then the documentation...
