Light control system for smart home

Discussion in 'Microcontrollers' started by lebohangmaphothoane, Sep 15, 2009.

  1. lebohangmaphothoane

    lebohangmaphothoane New Member

    Joined:
    Aug 20, 2009
    Messages:
    103
    Likes:
    0
    Location:
    Lesotho (Mountain Kingdom)
    i have not implement the hardware so the system is not yet finished. i would help you after completing it

  2. lebohangmaphothoane

    lebohangmaphothoane New Member

    Joined:
    Aug 20, 2009
    Messages:
    103
    Likes:
    0
    Location:
    Lesotho (Mountain Kingdom)

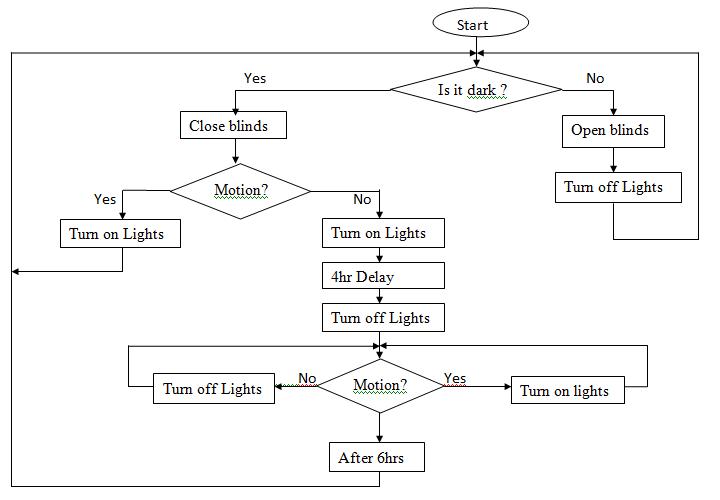

    birdman0 i hope you still remember the system. could you please write the assembly code following the flowchart. remember that closing or opening the blinds you should use the unipolar stepper motor. i have tried the code. could you please compare yours with mine or just correct my code.
    Code (text):
     ;PROGRAM FUNCTION:light control for smart home


        list        P=16F877a
        include    "P16F877a.inc"
                __config 0x3D18         ;sets the configuration settings (oscillator type etc.)



    ;Declarations:


    NumH    equ     20h
    NumL    equ     21h
    dc1   equ     22h
    NumH1   equ     23h
    NumL1   equ     24h
    PostX   equ     25h
    Mark240 equ     26h
    PostY   equ     27h



        org     0x0000
        goto Start

    ;Program Start:

    Start
        call Init             ;sets the values of ADCON0 and ADCON1
                                           ;initialize porta

    Init
    ;--------------------------------------------------------------------------
               ; Initializing porta and portb
        BCF STATUS, RP0 ;
        BCF STATUS, RP1 ; Bank0
        CLRF PORTA      ; Initialize PORTA by
                ; clearing output
                           ; data latches
        BSF STATUS, RP0 ; Select Bank 1
        MOVLW 0x06      ; Configure all pinss
        MOVWF ADCON1    ; as digital inputs
        MOVLW 0xCF      ; Value used to
                         ; initialize data
                             ; direction
        MOVWF TRISA     ; Set RA<3:0> as inputs
                               ; RA<5:4> as outputs
                               ; TRISA<7:6>are always
                               ; read as '0'.


     ; Initializing portb
        clrw             ;zerp
        movwf   PORTB           ; Ensure PORTB is zero before we enable it.
        bsf     STATUS,RP0      ; Select Bank 1
        movlw   0xF0            ; Set port B bits 0-3 as outputs
        movwf   TRISB           ; Set TRISB register.
        bcf     STATUS,RP0      ; Select Bank 0


        movlw   b'00000111' ;sets up timing register
           option


         ;Initializing ADC
        movlw   b'10010001';
        movwf   ADCON0 ;
        BANKSEL ADCON1
        movlw   b'10000101'
        movwf   ADCON1
        BANKSEL ADCON0

        return
    ;--------------------------------------------------------------------------

    ;Subroutines:

    motion  movlw   b'10010001';
            movwf   ADCON0 ;
            BANKSEL ADCON1
            movlw   b'10000101'
            movwf   ADCON1
            BANKSEL ADCON0



           bsf  ADCON0, GO_DONE     ;initiate conversion
           btfsc   ADCON0, GO_DONE
           goto    $-1          ;wait for ADC to finish
           movf    ADRESH,W
           andlw   0x03
           movwf   NumH1
           BANKSEL ADRESL
           movf    ADRESL,W
           BANKSEL  ADRESH
           movwf    NumL1           ;return result in NumL1 and NumH1

          return

    ;------------------------------------------------------------------------
    Light_on
           bsf PORTA,4       ;turn on the LED
           goto Main

           return
    ;-------------------------------------------------------------------------
    _4hr_delay
            movlw   d'144000'
            movwf   PostX       ;sets up variable postscaler
            movlw   d'240'      ;sets up fixed marker
            movwf   Mark240     ;
    TimeLoop

            movfw   Mark240     ;waits for TMR0 to count up
            subwf   TMR0,w      ;240 times
            btfss   STATUS,Z    ;
            goto    TimeLoop    ;hasn't, so keeps looping

            movlw   d'240'      ;resets Mark240
            addwf   Mark240,f   ;

            decfsz  PostX,f     ;does this X times
            goto    TimeLoop    ;

            retlw   0       ;returns after required time
    ;-------------------------------------------------------------------------
    second_delay
            movlw   d'144000'
            movwf   PostY       ;sets up variable postscaler
            movlw   d'240'      ;sets up fixed marker
            movwf   Mark240     ;

    Time
            movfw   Mark240     ;waits for TMR0 to count up
            subwf   TMR0,w      ;240 times
            btfss   STATUS,Z    ;
            goto    Time    ;hasn't, so keeps looping

            movlw   d'240'      ;resets Mark240
            addwf   Mark240,f   ;
            goto    motion
            goto    After_6hrrs
    dky
            decfsz  PostY,f     ;does this X times
            goto    Time    ;

            goto    Main
    ;---------------------------------------------------------------------------
    wait      movlw   5   ; Outer loop iteration count
    d11       movwf   dc1

              decfsz  dc1,F
              goto    $-1
              return
    ;---------------------------------------------------------------------------
    After_6hrrs
            btfss NumH1,1
            goto ledoff
            bsf PORTA,4
            goto dky
    ledoff
            bcf PORTA,4
            goto dky

    ;---------------------------------------------------------------------------

    closeblinds
           movlw b'0000'
           movwf PORTB
           call wait
           goto motion
           btfss  NumH1,1
           goto Light_on
           bsf PORTA,4
           goto _4hr_delay
           bcf PORTA,4
           goto motion

    After_6hrs
           btfss NumH1,1
           goto led_off
           bsf PORTA,4
           goto second_delay

    led_off
           bcf PORTA,4
           goto second_delay


    ;--------------------------------------------------------------------------
    openblinds
           movlw b'0001'
           movwf PORTB
           call wait

           movlw b'0100'
           movwf PORTB
           call wait

           movlw b'0010'
           movwf PORTB
           call wait

           movlw b'1000'
           movwf PORTB
           call wait

           return
    ;-----------------------------------------------------------------------------



    Main
    ;------------------------------------------------------------------------------

             ; Read_ADC
        bsf ADCON0, GO_DONE     ;initiate conversion
        btfsc   ADCON0, GO_DONE
        goto    $-1         ;wait for ADC to finish
        movf    ADRESH,W
        andlw   0x03
        movwf   NumH
        BANKSEL ADRESL
        movf    ADRESL,W
        BANKSEL ADRESH
        movwf   NumL            ;return result in NumL and NumH
    ;-------------------------------------------------------------------------------


        btfss NumH,1
        goto closeblinds
        goto openblinds
        bcf PORTA,4       ; turn 0ff the LED

        btfss NumH1,1
        goto led_on

        goto Main
    led_on
        bsf PORTA,4       ;turn on the LED
        goto motion
        btfss NumH1,1
        goto Main
        bcf PORTA,4



           END



    Attached Files:

    • room.jpg
      File size:
      35.7 KB
      Views:
      204
  3. birdman0_o

    birdman0_o Active Member

    Joined:
    Feb 23, 2009
    Messages:
    1,370
    Likes:
    18
    Location:
    Montreal, Quebec
    I'll only find mistakes in your code, I do not have time to write all that code for you.


Share This Page
