Audioguru's FM Tx Troubleshooting

Discussion in 'Radio and Communications' started by Menticol, Sep 30, 2010.

  1. audioguru

    audioguru Well-Known Member Most Helpful Member

    Joined:
    Mar 16, 2004
    Messages:
    32,447
    Likes:
    937
    Location:
    Canada, of course!
    ONLINE
    The first transistor is the preamp for the mic. C2 stops it amplifying the 100MHz radio frequency thet is very stong and if the 100MHz is not stopped then the first transistor would probably be overloaded by it.

    The first transistor uses C4 in parallel with R5 for pre-emphasis. You don't want a huge inductor plus a capacitor to make pre-emphasis.

    Use the 2pF to 22pf one and not be able to tune the lower half of the FM band.

  2. mvs sarma

    mvs sarma Well-Known Member

    Joined:
    Oct 29, 2006
    Messages:
    3,512
    Likes:
    76
    Location:
    Hyderabad, India.
    here are the files zipped.


    Attached Files:

    Last edited: Oct 21, 2010
    • Like Like x 1
  3. ckchew8

    ckchew8 New Member

    Joined:
    Sep 16, 2009
    Messages:
    23
    Likes:
    0
    hi mvs sarma,
    Thanx for offering the eagle files, it would be great if you could do so, but i have this tendency to understand things before doing so...can't seem to grasp the preemphasis part, as in how does the common emitter like configuration gives pre emphasis? isn't it suppose to boost high frequency to reduce traingular noise? then why the trouble of using so many components and instead use a simple LC high pass filter? we can calculate the pre emphasis time to be 50uS or 75uS(US) using the LC via the formula Fout=1/2*pi*R*C

  4. dave

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    -
    Likes:
    0



  5. audioguru

    audioguru Well-Known Member Most Helpful Member

    Joined:
    Mar 16, 2004
    Messages:
    32,447
    Likes:
    937
    Location:
    Canada, of course!
    ONLINE

    The voltage gain of a common-emitter transistor is roughly Rc/Re. But C4 bypasses the emitter resistor R5 at high audio frequencies which increases the voltage gain of the transistor which boosts high frequencies making pre-emphasis.
    It is an RC circuit which makes the required 6dB per octave boost. If you use an LC circuit then the high frequencies are boosted at 12dB per octave which is wrong.
    The formula for an LC filter is completely different from the formula for an RC filter.

  6. ckchew8

    ckchew8 New Member

    Joined:
    Sep 16, 2009
    Messages:
    23
    Likes:
    0
    hello there audio guru,
    First of all thank you so much for clarifying my ambiguities and mistakes...the formula for LC is Fout=1/[2*pi*sqrt(LC)] whereas for RC filter is Fout=1/(2*pi*R*C)...back to the RC filter which gives 6db roll off per octave, here's the scenario:

    let's set the pre emphasis to 50uS and the following can be calculated:
    time constant,t=RC (simple capacitor + resistor time constant formula)
    F(cut off)=1/(2*pi*RC)

    since time constant,t=RC hence the formula can be converted to:
    F(cut off)=1/(2*pi*t)

    substituting the value of t=50uS:
    F(cut off)=1/(2*pi*50x10^-6)
    =3183.098862Hz

    My question is, am i calculating this correctly cause from your circuit of preemphasis, the parallel RC filter which values are R=470ohm and C=100nF, would give:

    time constant,t=470*100x10^-9
    =47uS

    OR

    f(cut off)=1/(2*pi*47*10^-6)
    =3386.275385Hz

    There's a slight deviation from the ideal case, will it affect the receiver side or anything critical for the FM transmission?
    I am aware that there's tolerance for the values of resistor and capacitance and perhaps that tolerance will help get somewhere close to the 50uS time constant range.btw, why do we need a 6dB roll off?

    another question is that you mentioned that the capacitor C2 is used to filter off 100MHz radio frequency? Is this frequency from other radio station or in another words ambient noise? and what does transistor overloading means, does it mean that the slew rate(rate of change of output based on input) of the transistor cannot cope with the 100MHz signal? on a side note, is this how you calculate the cut off frequency of the RC filter of R3 and C2:
    R3=30k ohm,C2=100pF

    f(cut off)=1/(2*pi*30k*100p)
    =53.051kHz

    does this mean that R3-C2 forms a low pass filter with the calculated cut off frequency?

    lastly, sorry for asking so many elementary questions, trying to understand it from the electronics point of view...and thank you very much for advising!Appreciate it!

    Last edited: Oct 21, 2010
  7. audioguru

    audioguru Well-Known Member Most Helpful Member

    Joined:
    Mar 16, 2004
    Messages:
    32,447
    Likes:
    937
    Location:
    Canada, of course!
    ONLINE
    Correct. 47us is 6% too low but you wll not notice.

    FM radio stations boost high frequencies with pre-emphasis that has a 6dB/octave slope and FM radios us a 6dB/octave de-emphasis roll-off so that the audio is returned to normal but hiss is reduced by 6 dB/octave.


  8. ckchew8

    ckchew8 New Member

    Joined:
    Sep 16, 2009
    Messages:
    23
    Likes:
    0
    hi audio guru,
    Thank you so much for enlighthening me with the details of your incredible design! Appreciate it!:) i browsed through the net a saw a post (in 2006) by you recommending that these are good FM transmitter for mp3:
    BH1417 Stereo FM Transmitter
    BH1417 Stereo PLL FM Transmitter

    my main goal to is try and transmit audio (mono) not stereo but all of the transmitter is a stereo transmitter which is good for music/song transmission. is there any way i can fool the system and transmit mono audio? (isn't mono better than stereo for audio transmission?)

    btw, in your circuit after the pre emphasis, i noticed that there are 2 transistors, Q2 is the high frequency colpitts oscillator but what is the purpose of the part Q3? Am i mistaken or something?

  9. mvs sarma

    mvs sarma Well-Known Member

    Joined:
    Oct 29, 2006
    Messages:
    3,512
    Likes:
    76
    Location:
    Hyderabad, India.
    in lighter vein, the whole article is being prepared step by step from the mind of Audioguru. Not much of effort on the part of the poster, and incidentally i feel the O P's post appears hijacked.

  10. ckchew8

    ckchew8 New Member

    Joined:
    Sep 16, 2009
    Messages:
    23
    Likes:
    0
    sorry, didn't mean to hijack the post.....@audioguru, i found another post by you explaning the function of each part of your design...but not the BH1417 transmitter...thank you for sharing your knowledge:)

    Last edited: Oct 21, 2010
  11. kp2010

    kp2010 New Member

    Joined:
    Oct 19, 2010
    Messages:
    24
    Likes:
    0
    thanks Mr.sarma for sharing cadsoft eagle files....its the same schematic by audio guru ...

  12. audioguru

    audioguru Well-Known Member Most Helpful Member

    Joined:
    Mar 16, 2004
    Messages:
    32,447
    Likes:
    937
    Location:
    Canada, of course!
    ONLINE
    Rohm makes a modern entire line of FM srereo transmitter ICs (BH141x) to replace their awful old dashioned BA1404 one.
    These ICs are used in most MP3 to car radio adapters that are sold.

    The BH141x FM transmitters have very good stereo. Older stereo transmitters were distorted and had poor frequency response. A cheap FM stereo radio also has poor stereo quality but high quality home stereos or car radios are excellent in stereo.

    In my write-up about the problems with the original transmitter that didn't work, I mentioned that its frequency changed when something moved toward or moved away from its antenna. It was caused by the "something" that was moving changed the capacitance at the antenna and the antenna was connected directly to the tuned circuit of the oscillator so of course the varying capacitance at the antenna changed the tuned frequency. So I added Q3 to isolate the antenna from the oscillator and at the same time provide more RF output power.

  13. ckchew8

    ckchew8 New Member

    Joined:
    Sep 16, 2009
    Messages:
    23
    Likes:
    0
    Thank you so much for explaining audio guru! appreciate the expert advice!:)

  14. Menticol

    Menticol Active Member

    Joined:
    Oct 21, 2007
    Messages:
    681
    Likes:
    35
    Location:
    Bogotá, Colombia
  15. Willen

    Willen Well-Known Member

    Joined:
    May 22, 2012
    Messages:
    1,293
    Likes:
    115
    Location:
    Nepal (GMT +5:45)

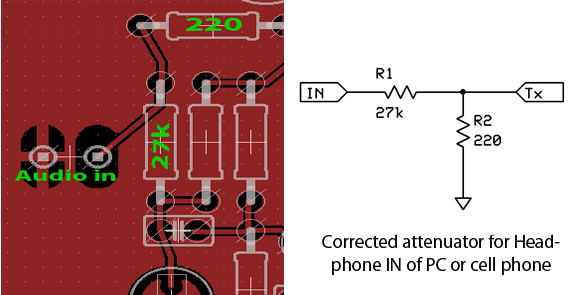

    Fault on your board:-


    Attached Files:
