wonder if I need better power supply?

Status
Not open for further replies.
revised schematc??

something just dosn't feel right.

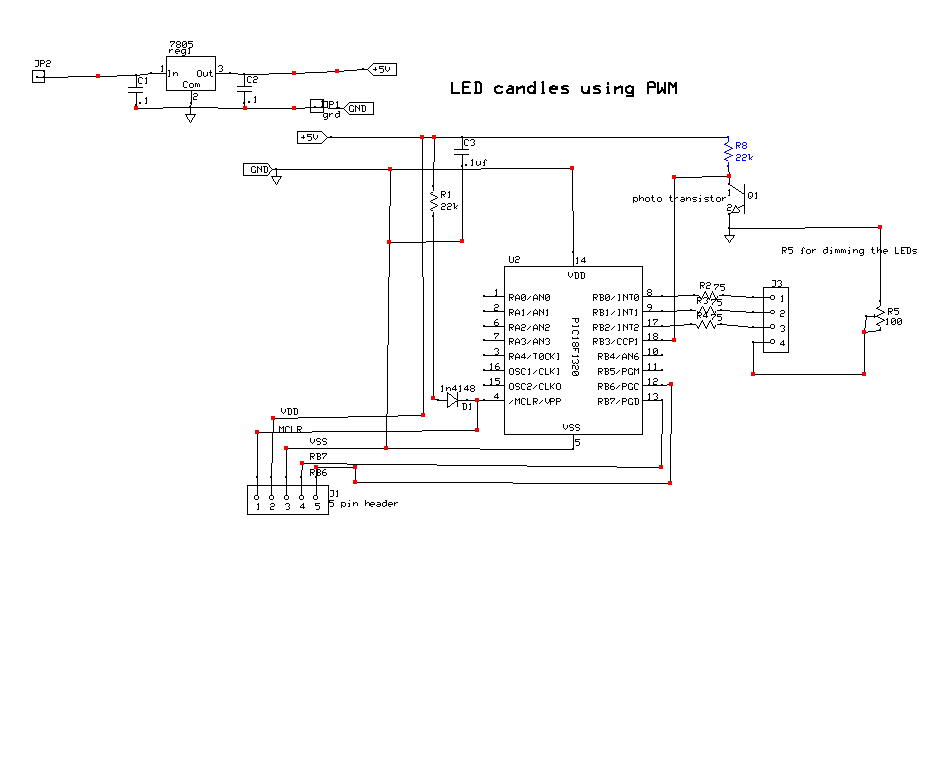

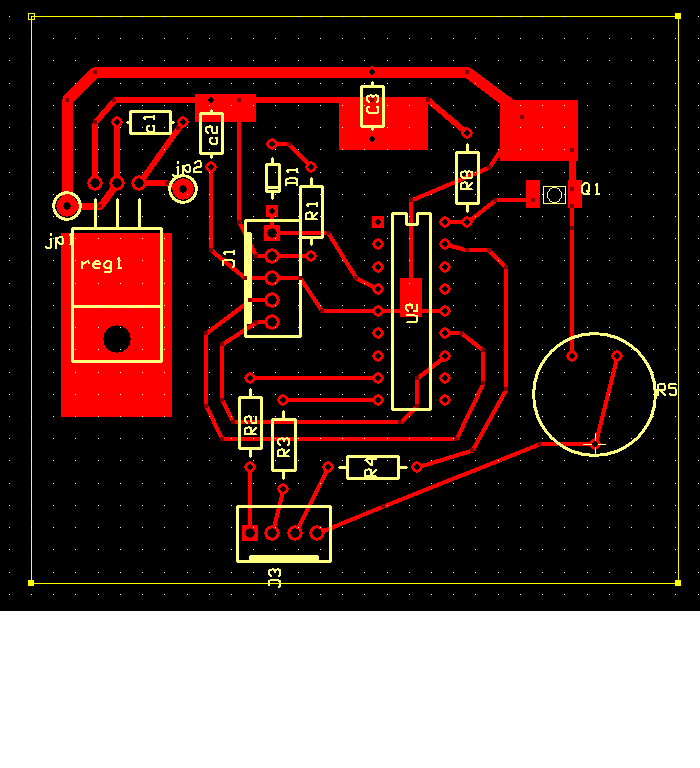

I had several errors in my original schematic post. here is proposed pcboard design as well using a 7805 regulator. hopefully have a 7 - 9 v wall wart comming. a 12v should work but wasting power.
going to add a filled plane w/ .030 clearances.
I just feel there is something wrong with either the schematic or pc design???


Attachments

  • candle schematic.PNG
    candle schematic.PNG
    27.8 KB · Views: 134
  • candle pcb.PNG
    candle pcb.PNG
    32.4 KB · Views: 102
note R5 is accessible from component side of board while the Q1 is poking out the top of the enclosure so its on the trace side of board.
