What voltage can be measured in the attached circuit on the R6

Discussion in 'Homework Help' started by spike47, Aug 9, 2016.

  1. spike47

    spike47 Member

    Joined:
    Mar 13, 2009
    Messages:
    41
    Likes:
    1
    Location:
    North Yorkshire England GMT+1
    Hi
    This may seem a simple answer to above , but I don't seem to be able to figure it out .

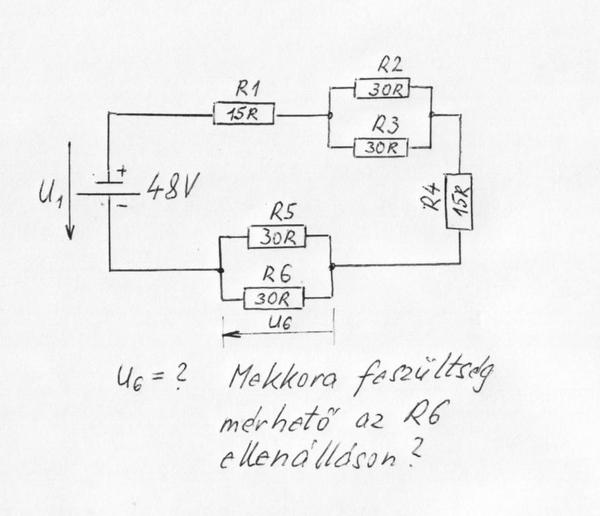

    "What voltage can be measured in the attached circuit on the R6 resistance in the picture above (U6=?)"
    Anyone help me .

    spike


    Attached Files:

  2. alec_t

    alec_t Well-Known Member Most Helpful Member

    Joined:
    Jul 10, 2011
    Messages:
    9,325
    Likes:
    1,231
    Location:
    Cardiff, Wales
    If this is a Homework question, what is your best effort so far at answering it?

  3. Ian Rogers

    Ian Rogers Super Moderator Most Helpful Member

    Joined:
    Mar 28, 2011
    Messages:
    9,310
    Likes:
    914
    Location:
    Rochdale UK
    Very simple.... Don't overthink the problem... What do two 30R resistors in parallel make..

    (Moved to homework help!!)

  4. dave

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    -
    Likes:
    0



  5. spike47

    spike47 Member

    Joined:
    Mar 13, 2009
    Messages:
    41
    Likes:
    1
    Location:
    North Yorkshire England GMT+1

    15r!

  6. Ian Rogers

    Ian Rogers Super Moderator Most Helpful Member

    Joined:
    Mar 28, 2011
    Messages:
    9,310
    Likes:
    914
    Location:
    Rochdale UK
    Tada!!! you have a simple voltage divider!!
